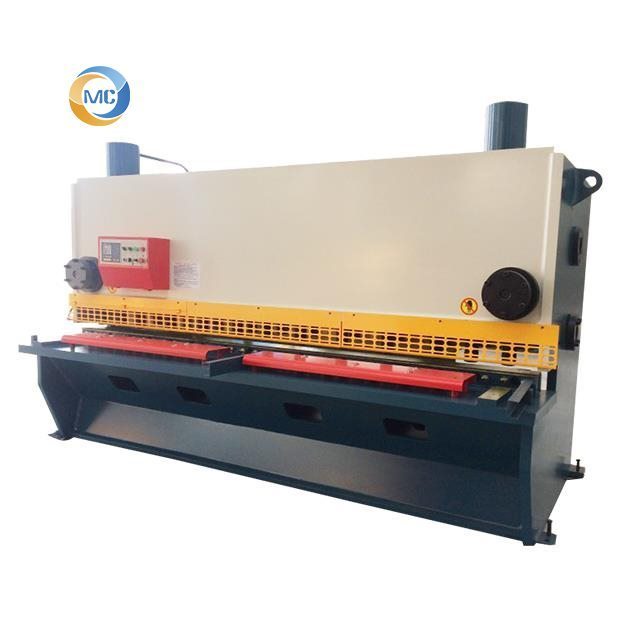

1.Entire welded frame, tempering.(our feature)
2.Digital display,back gauge size & shear times
3.Balde clearance indicated,easy for adjusting
4.Cartridge type hydraulic system,impove the reliability and security for Hydraulic shearing machine running.
- Product Details
- {{item.text}}
Quick Details
-
Blade Length (mm):
-
6000 mm
-
Backgauge Travel (mm):
-
20 - 600 mm
-
Throat Depth (mm):
-
200 mm
-
Brand Name:
-
MC
-
Power (kW):
-
5.5 kW
-
Weight (KG):
-
5700 KG
-
Place of Origin:
-
China
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
6480X2100X2300
-
Name:
-
Hydraulic Cnc Plate shearing machine,plate shearing machine
-
Machine body:
-
Steel plate welded frame
-
Cutting method:
-
Hydraulic power
-
Cutting angle:
-
Adjustable
-
Use in:
-
Metal forming industry
-
Products:
-
Different kinds of sheet type
-
Named:
-
Guillotining shear machine
-
Title:
-
Sheet metal cutting machine
-
Weight:
-
5700kg
-
Rated Power:
-
5.5KW
Quick Details
-
Max. Cutting Width (mm):
-
3200
-
Max. Cutting Thickness (mm):
-
12 mm
-
Shearing Angle:
-
1-2
-
Blade Length (mm):
-
6000 mm
-
Backgauge Travel (mm):
-
20 - 600 mm
-
Throat Depth (mm):
-
200 mm
-
Brand Name:
-
MC
-
Power (kW):
-
5.5 kW
-
Weight (KG):
-
5700 KG
-
Place of Origin:
-
China
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
6480X2100X2300
-
Name:
-
Hydraulic Cnc Plate shearing machine,plate shearing machine
-
Machine body:
-
Steel plate welded frame
-
Cutting method:
-
Hydraulic power
-
Cutting angle:
-
Adjustable
-
Use in:
-
Metal forming industry
-
Products:
-
Different kinds of sheet type
-
Named:
-
Guillotining shear machine
-
Title:
-
Sheet metal cutting machine
-
Weight:
-
5700kg
-
Rated Power:
-
5.5KW
Contacts: Mark Liu
Tel: +86-411-82766928
Fax: +86-411-39015062
Email: Liu@mingchenggroup.com
Mob/Whatsapp: +86 133 9411 0095
Products Description
- Streamlined looking,Frame: consists of right and left wall boards, working table, oil box, slot steel and etc. The stress of
the welded parts can be eliminated by vibration. The machine enjoys high accuracy and high strength and can be transported easily.
- As the cutting beam has been designed in inner-inclined structure, it is easy for plates to fall down and the accuracy of
products can also be guaranteed.
- High accuracy, high efficiency, simple and convenient operation, good performance, favorable price and best service.
-The machine by CE certification and ISO quality system certification
the welded parts can be eliminated by vibration. The machine enjoys high accuracy and high strength and can be transported easily.
- As the cutting beam has been designed in inner-inclined structure, it is easy for plates to fall down and the accuracy of
products can also be guaranteed.
- High accuracy, high efficiency, simple and convenient operation, good performance, favorable price and best service.
-The machine by CE certification and ISO quality system certification
QC11Y Series Hydraulic shearing machine
QC12Y Series Hydraulic shearing machine
The working conditions and environments used are:
1. Input power: 380V ± 5% / 50Hz ± 1, three-phase five-wire (according to customer requirements) or Input power: 220V ± 5% / 60Hz ± 1, three-phase
2. Ambient temperature: 0℃-45℃
3. At 40 ℃: relative humidity≤50%; at 20℃: relative humidity≤85%
The use of occasions should not seriously affect the use of welding gas, steam, chemical deposition, dust, mold and other easy fuel and corrosive substances, and does not allow severe vibration and bumps. The equipment should be placed in a dry and ventilated place and prevent sunlight, direct and rain.
2. Ambient temperature: 0℃-45℃
3. At 40 ℃: relative humidity≤50%; at 20℃: relative humidity≤85%
The use of occasions should not seriously affect the use of welding gas, steam, chemical deposition, dust, mold and other easy fuel and corrosive substances, and does not allow severe vibration and bumps. The equipment should be placed in a dry and ventilated place and prevent sunlight, direct and rain.
QC11Y Series Hydraulic shearing machine
QC12Y Series Hydraulic shearing machine
- Electrical components are imported or from Sino-foreign joint Venture,in accordance with international standards,reliable
safety,long life,good anti-interference ability.
- Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to
operate.
- Emergency stops on machine and foot switch for safety and Fence like body guard is standard or light curtain is optional.
The famouse brand for Motor ,Gear pump ,Hydraulic system,Ball screw and line guide ,Sealing rings ect.
safety,long life,good anti-interference ability.
- Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to
operate.
- Emergency stops on machine and foot switch for safety and Fence like body guard is standard or light curtain is optional.
The famouse brand for Motor ,Gear pump ,Hydraulic system,Ball screw and line guide ,Sealing rings ect.
Product Paramenters
|
Type
|
Cutting length
|
Travel times
|
Stopper adjust range
|
Power
|
|
4x2500
|
2500mm
|
28 Min-1
|
20-500mm
|
4.0kw
|
|
6x3200
|
3200mm
|
14 Min-1
|
20-600mm
|
7.5kw
|
|
8x6000
|
6000mm
|
8 Min-1
|
20-600mm
|
11kw
|
|
10x4000
|
4000mm
|
6 Min-1
|
20-600mm
|
11kw
|
|
12x5000
|
5000mm
|
10 Min-1
|
20-800mm
|
30kw
|
|
16x3200
|
3200mm
|
6 Min-1
|
20-800mm
|
22kw
|
|
20x4000
|
4000mm
|
6 Min-1
|
20-1000mm
|
30kw
|
|
25x3200
|
3200mm
|
6 Min-1
|
20-1000mm
|
37kw
|
|
30x3200
|
3200mm
|
4 Min-1
|
20-1000mm
|
37kw
|
For the steel guillotine shear,besides the above model,we accept customized accordingly.pls advise the plate length and
thickness,we will design the steel guillotine shear for you.
thickness,we will design the steel guillotine shear for you.
we use the famouse brand for Hydraulic shearing machine configurations,smoothly cutting effect,good quality and high performance.
|
No.
|
Item
|
Quantity
|
Brand
|
|
1
|
Motor
|
1Set
|
Siemens China
|
|
2
|
Gear pump
|
1Set
|
Sunny USA
|
|
3
|
Casting connector
|
1Set
|
Cast CO Italy
|
|
4
|
Main electric parts
|
1Set
|
Siemens China
|
|
5
|
Hydraulic system
|
1Set
|
Rexroth Germany
|
|
6
|
Sealing rings
|
1Set
|
Valqua CO Japan
|
|
7
|
Blade
|
1Set
|
Jinshan China
|
|
8
|
Ball screw and line guide
|
1Set
|
Hiwin TaiwanChina
|
|
9
|
E21 CNC System
|
1Set
|
ESTUN China
|
