portable borehole drilling equipment bore well drilling bore well borewell deep swivel drilling machine

portable borehole drilling equipment bore well drilling bore well borewell deep swivel drilling machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $70000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Dimension(L*W*H):: 10600*2400*3050mm

Weight:: 8500 KG

After-sales Service Provided:: Engineers available to service machinery overseas

Water Hole Diameter:: 105-350mm

Water Hole Depth:: 300m

Drill pipe diameter:: 89,102,114mm

Drill rod length:: 2500/4000mm

Rotation Torque:: 4500Nm 1st Gear/8000Nm 2nd Ger

Rotation Speed:: 0-80rpm 1st Gear/0-160Nm 2nd Ger

Diesel Engine type:: CMS

Mud pump:: BW450

Quick Details

Place of Origin:: Beijing, China

Brand Name:: JCDRILL

Voltage:: 24V

Dimension(L*W*H):: 10600*2400*3050mm

Weight:: 8500 KG

After-sales Service Provided:: Engineers available to service machinery overseas

Water Hole Diameter:: 105-350mm

Water Hole Depth:: 300m

Drill pipe diameter:: 89,102,114mm

Drill rod length:: 2500/4000mm

Rotation Torque:: 4500Nm 1st Gear/8000Nm 2nd Ger

Rotation Speed:: 0-80rpm 1st Gear/0-160Nm 2nd Ger

Diesel Engine type:: CMS

Mud pump:: BW450

>> Introduction

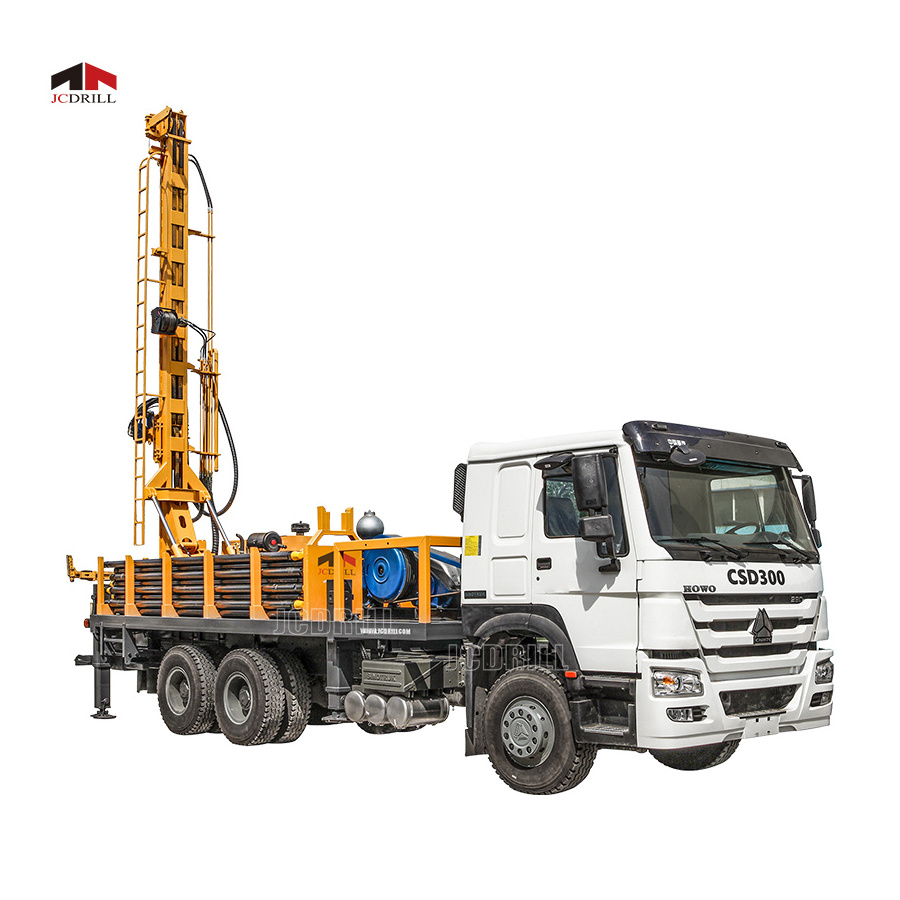

>>CSD300 Multi-functional truck mounted water well drilling rig is a efficient,multi-function full hydraulic water well drilling rig.It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.
>> CSD300 truck mounted drilling rig can drilling in all kinds formations by mud drilling in soft formation and air DTH hammer in rock drilling,DTH Hammer is applied in rock drilling, slag is discharged by air pressure and the offstage efficiency is ten times than traditional rotary drilling.
>> CSD300 deep water well drilling rigs, in cutting drilling or rotary drilling can be operated in unconsolidated layer, and the slag can be discharged under by mud, the impact drilling operation can also be adopted and slag can be discharged by pressure air, the hydraulic water well drilling rig suitable for drilling complicated geological conditions.

>> Characteristic

>>The drilling rig can use air DTH Hammer drilling and mud drilling.

>> Centralized control console is suitable for each manipulation and control.Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.

>> The main drive system, the transfer case gearbox, double-winch unit, mud pump,turntable,drilling tower, feed system are setup on the chassis.

>> It's a hydraulicrotary drilling rig with directional circulation. It can equipped with BW450 mud pump which adopts the slurry as the washing fluid and can drill on clay,sand and rock if it is equipped with suitabledrilling bit.

>> The power of drilling rig comes from aYuchai engine,92kw Yunnei engine drivesthe large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.

>> The rotary head,have two gear,rotation speed is 45-140rpm stepless adjustment and the rotary torque is 5000-6500Nm.

>> The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.

>> It can set up a generator which is convenient to welding or illuminate for work at night.

>> Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.

>> The main drive of rig is hydrulic and the four landing legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch system are also hydraulic operated.

>> The tools winch winch is used for auxiliary lifting and casin.

>> The Hydraulic auxiliary functions are easy and efficient for guide extension, boom swing, boom lift, guide dumping.

>> Competitive in price, low cost of maintain.

Specification

Specification	Unit	CSD300
Geology drilled		All kinds(DTH & Mud Rotary)
Operation System		Hydraulic
Hole Diameter	mm	Φ140—Φ450
Hole Depth	m	300
Rotation Torque	Nm	4800-6500
Rotation Speed	rpm	60-120
Drill pipe diameter	mm	89/114
Drill pipe length	mm	3000/4500
Max.Pull up capacity	T	16
Max.Push down capacity	T	5
Net Weight	T	20
Shipping Dimension	mm	1180025503650
Winch
Lifting force	T	1.5
Length of steel wire rope(tool winch)	m	100
Engine
Diesel Engine type	YUCHAI
Rated Horse power	Kw	70
Electrical System	Volt	24
Compressor(On board)
Compressor Type	Rotary Screw/Movable
Pressure Required	Mpa	1.05-4.5
Air consumption	m³/min/CFM	16/60
Truck
Manufacturer		SINOTRUCK HOWO
Model		ZZ1257M5847C
Engine		WD615.93C
Rated Horse power	Hp	290
Discharge Standard		EU-2
Drive type		6*4
Steering wheel		left/right(Optional)
Mud Pump
Model		BW450
Displacement	L/Min	450
Discharge pressure (Mpa)	Mpa	5

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Our Service

>> Pre-sale service	>> Service During Sales	>> After Sales Service
>> Acting as a good adviser, our well-trained sales groups and professional technical team propose most rational solutions for our valued client as per practical project requirement. >> Select suitable model & matched equipment. >> Strong technical support. Reply clients' questions within 24 hours.	>> We have responsible team from raw material to finished products, and guarantee 100% pass rate. >> Design and manufacture products basis of client's special equirement >> Inspect each machine & matched accessories strictly before delivery >> Timely inform client of production progress.	>> We're always with you in after-sale service. >> We can arrange related after-sales representatives for debugging and training at worksite when starting up. >> E-mail, call or door-to-door service in later using.
