Quick Details
-
Product name:
-
AOL digital fabric cutting machine
-
After-sales Service Provided:
-
Overseas service center available
-
Type:
-
round knife cutting machine
-
Fixed mode:
-
vacuum suction table
-
Function:
-
Cutting Tools
-
Color:
-
Grey and white
-
Model:
-
1625/1825/2535
-
Working area:
-
1600X2500mm/1800*2500mm/2500*3500mm
-
Drive system:
-
Servo motor and driver
-
Working environment:
-
Temperature 0-40℃,Hunidity 20%-80% no condensation
Quick Details
-
Weight (KG):
-
1400
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
AOL
-
Product name:
-
AOL digital fabric cutting machine
-
After-sales Service Provided:
-
Overseas service center available
-
Type:
-
round knife cutting machine
-
Fixed mode:
-
vacuum suction table
-
Function:
-
Cutting Tools
-
Color:
-
Grey and white
-
Model:
-
1625/1825/2535
-
Working area:
-
1600X2500mm/1800*2500mm/2500*3500mm
-
Drive system:
-
Servo motor and driver
-
Working environment:
-
Temperature 0-40℃,Hunidity 20%-80% no condensation
Product Description

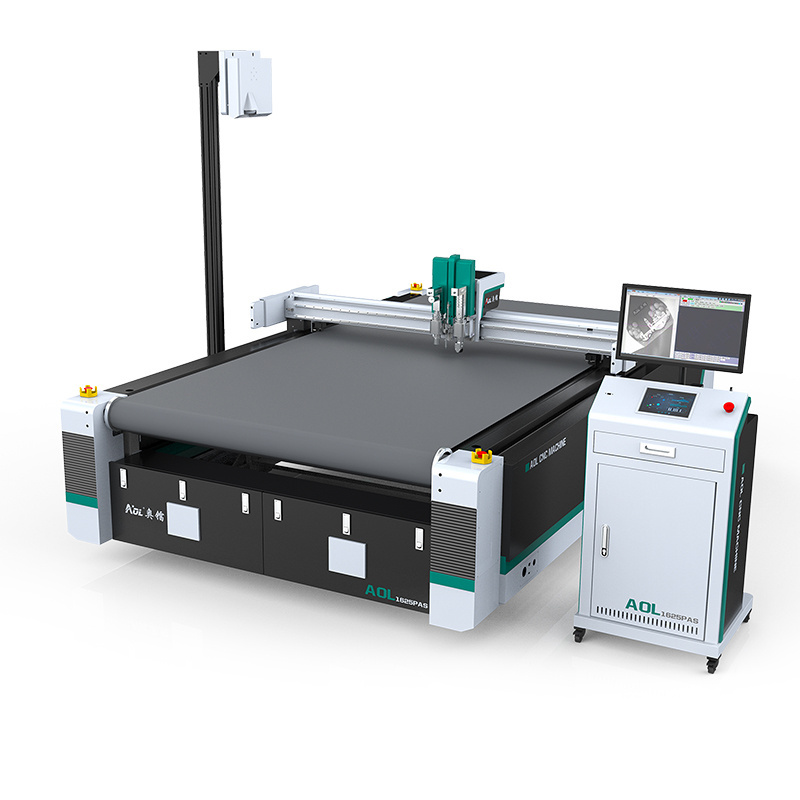

Jinan AOL automatic Feed textile clothing roll fabric table cushion sofa cover cutting machine with three years warranty
key points
1.There are many personalized customization, the styles of production are complex and changeable, and the efficiency of manual revision is too low.
2.Manual drawing, cutting efficiency is too low, not accurate
3.There are too many styles, it takes up space to choose a waste of time
4.Manual typesetting, the utilization rate of raw materials is too low, which will increase the cost
5.Professional cutting workers are highly paid and difficult to recruit
6. High risk factor of manual cutting
2.Manual drawing, cutting efficiency is too low, not accurate
3.There are too many styles, it takes up space to choose a waste of time
4.Manual typesetting, the utilization rate of raw materials is too low, which will increase the cost
5.Professional cutting workers are highly paid and difficult to recruit
6. High risk factor of manual cutting
Jinan AOL automatic Feed textile clothing roll fabric table cushion sofa cover cutting machine with three years warranty
1.The platform detection device regulates the knife pressure automatically, enabling a level platform and perfect cutting.
2. The high precision AOL CNC oscillating knife leather cutting machine can induce draft separately and easily cuts small pieces.
3. The anti-collision and the built-in auto-sensing devices ensure the security of cnc oscillating knife leather cutting machine.
4. High efficiency can be realized without making a high-cost knife model.
5. AOL digital cutting machine is a perfect combination of technique and technology.
Sample
Specification
Jinan AOL automatic Feed textile clothing roll fabric table cushion sofa cover cutting machine with three years warranty
|
item
|
value
|
|
Brand Name
|
AOL
|
|
Product name
|
digital leather fabric cutting machine
|
|
Place of Origin
|
Jinan,Shandong,China
|
|
Model
|
AOL1625 AOL1825,accept the other models to be customized
|
|
Working area
|
1600mmX2500mm/1800mmX2500mm
|
|
package size:(L*W*H)
|
2.42m*3.68m*1.45 m(AOL1625)/2.58m*4.2m*1.45m(AOL1825)
|
|
Translational velocity
|
800-1200mm/s
|
|
Cutting speed
|
200-800mm/s(according to different cutting materials)
|
|
Cutting thickess
|
≤22mm(according to different cutting materials)
|
|
Repated accuracy
|
≤0.1mm
|
|
Capacity
|
2GB
|
|
Voltage
|
380v/220v/110v
|
|
Gross weight:
|
1240kg/1500kg
|
|
Power
|
11kW |
|
Certification
|
ce
|
|
Warranty
|
3 years
|
|
After-sales Service Provided
|
Overseas service center available
|
|
Type
|
round knife cutting machine
|
|
Fixed mode
|
vacuum suction table
|
|
working table type
|
static table /auto feeding table
|
|
software
|
AOLCUT
|
|
Applications
|
kinds of fabric ,kinds of cloth material ,Lace, kinds of leather material,texitle,foam ,spone
|
|
Color
|
Black and green
|
|
Multi functional heads optional
|
Vibration knife
Circular knife Punching knife Oblique knife Pen Punch roller Milling knife Projector and camera optional |
|
Drive system
|
Servo motor and driver
|
|
Other configurations
|
1.Linden Sweden gear
transmission
system, vacuum table, Taiwan Hiwin rail, vacuum pump.
2. Optional
1) Imported belt transmission system.
2) High configuration Auto feeder shelt device automatically correct deviations
3) Camera for printed material ,nesting software
4) Special 1 cm multilayer knife tool.Projection , screen ,computer for the
|
|
Safety device
|
Using infrared sensors, responsive, safe and reliable
|
|
Working environment
|
Temperature 0-40℃,Hunidity 20%-80% no condensation
|
Our Advantages
Jinan AOL automatic Feed textile clothing roll fabric table cushion sofa cover cutting machine with three years warranty
Details Images
Jinan AOL automatic Feed textile clothing roll fabric table cushion sofa cover cutting machine with three years warranty
Packing & Delivery
Jinan AOL automatic Feed textile clothing roll fabric table cushion sofa cover cutting machine with three years warranty
Step 1.
Machine cleaning
Machine cleaning
Step 2.
Wrap all the machine parts with bubble film & plastic film.
Insert necessary anti friction & collision pad at the corner.
Step 3.
Set all the small parts on the machine bed to save space.
Trailer the full set machine to packing place. Forklift it on the fumigated wooden case. Fix the sticks on the bottom plywood.
Customize wood case according to each model, special groove design, the bottom of the machine and the top metal structure of the
tray is stuck perfectly and prevent the machine from sliding in the wooden case. Reinforce steel wire outside the wooden case to
prevent deformation of the wooden case. Wrap waterproof cloth outside the wooden box. Prevent wooden case from water and the
machine to be rusty
Wrap all the machine parts with bubble film & plastic film.
Insert necessary anti friction & collision pad at the corner.
Step 3.
Set all the small parts on the machine bed to save space.
Trailer the full set machine to packing place. Forklift it on the fumigated wooden case. Fix the sticks on the bottom plywood.
Customize wood case according to each model, special groove design, the bottom of the machine and the top metal structure of the
tray is stuck perfectly and prevent the machine from sliding in the wooden case. Reinforce steel wire outside the wooden case to
prevent deformation of the wooden case. Wrap waterproof cloth outside the wooden box. Prevent wooden case from water and the
machine to be rusty
