Quick Details
-
Max. Turned Length (mm):
-
1500 mm
-
Marketing Type:
-
New Product 2022
-
Core Components:
-
Tool Head, Control System, Guide Rail, Servo Motor, Protection Ring
-
Brand Name:
-
Leapion
-
Voltage:
-
380V 3PH AC power
-
Dimension(L*W*H):
-
2900*1100*1450mm
-
Weight (KG):
-
1600
-
Power (kW):
-
3.5 - 5.5
-
Product name:
-
CNC Wood Lathe
-
Material diameter:
-
20-300mm
-
Spindle speed:
-
0-3000r/min
-
Minimum setting unit:
-
0.01cm
-
Rotating spindle:
-
4KW servo spindle
-
control system:
-
DSP or Adtech
-
Motor:
-
Alpha 4KW servo main power motor
-
Guide rail:
-
HIWIN 25 square rail flange slider
-
Application:
-
Wood Round Mould
-
Function:
-
Wood Turning+fluting+cylinder Engraving
Quick Details
-
Max. Swing Diameter (mm):
-
300 mm
-
Max. Length of Workpiece (mm):
-
1500 mm
-
Place of Origin:
-
Shandong, China
-
Max. Turned Length (mm):
-
1500 mm
-
Marketing Type:
-
New Product 2022
-
Core Components:
-
Tool Head, Control System, Guide Rail, Servo Motor, Protection Ring
-
Brand Name:
-
Leapion
-
Voltage:
-
380V 3PH AC power
-
Dimension(L*W*H):
-
2900*1100*1450mm
-
Weight (KG):
-
1600
-
Power (kW):
-
3.5 - 5.5
-
Product name:
-
CNC Wood Lathe
-
Material diameter:
-
20-300mm
-
Spindle speed:
-
0-3000r/min
-
Minimum setting unit:
-
0.01cm
-
Rotating spindle:
-
4KW servo spindle
-
control system:
-
DSP or Adtech
-
Motor:
-
Alpha 4KW servo main power motor
-
Guide rail:
-
HIWIN 25 square rail flange slider
-
Application:
-
Wood Round Mould
-
Function:
-
Wood Turning+fluting+cylinder Engraving

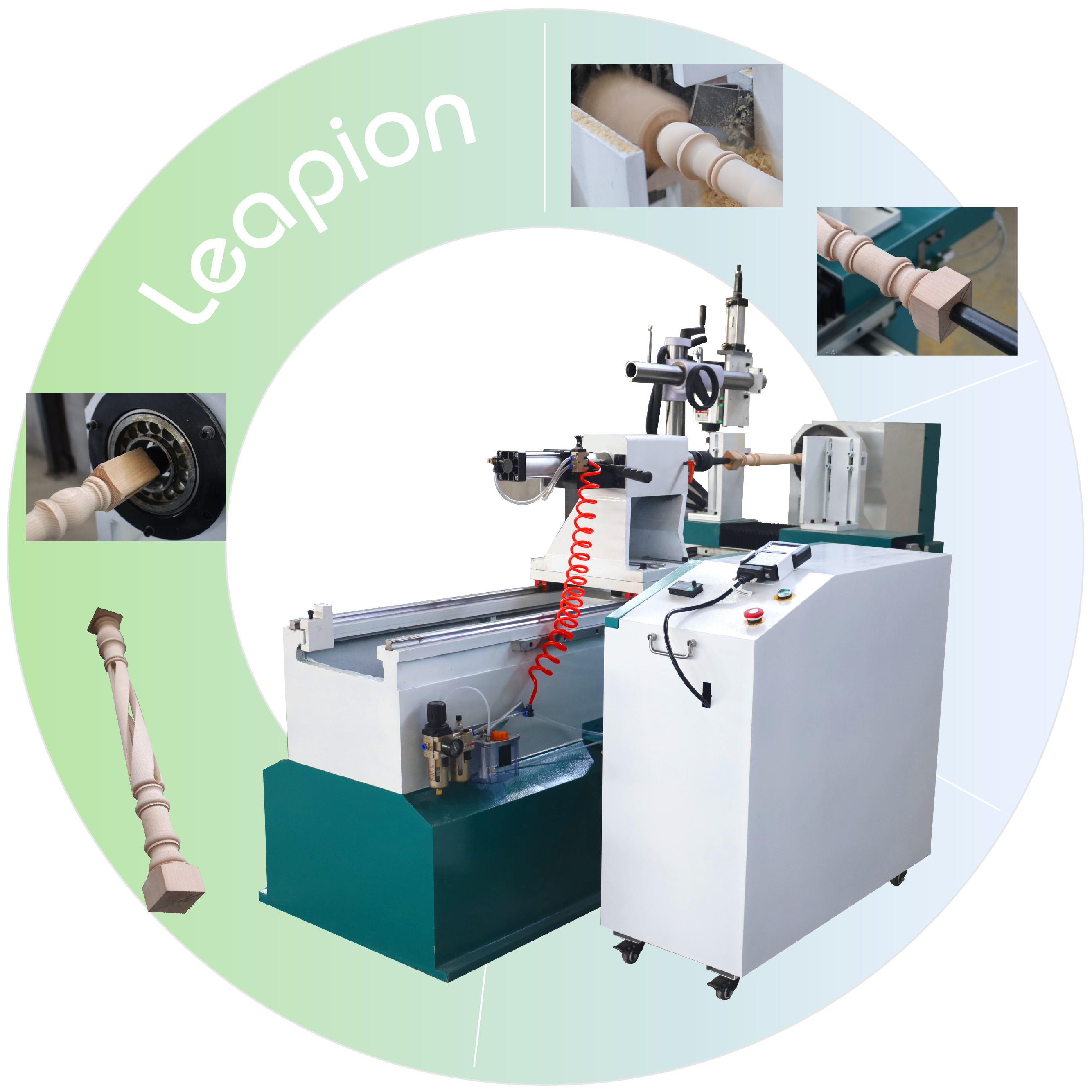

2022 New Auto Feed CNC Wood Lathe Bead Low Price Large Wooden Lathe with Copying
Such as various staircase column, roman column, general column, table or chair legs, washstand, wooden case, wooden table,baseball bat, car wooden furniture, children' s bed column, etc.
Specification
|
NAME
|
PARAMETER
|
|
Processing length
|
200-1500mm (2m and 2.5m specifications can be customized)
|
|
Material diameter
|
20-300mm
|
|
Maximum feed rate
|
2000mm/min
|
|
Minimum setting unit
|
0.01cm
|
|
Rotating spindle
|
4KW servo spindle
|
|
Engraving spindle power
|
3.5kw air-cooled spindle (used for slotting and engraving)
|
|
Spindle speed
|
0-3000r/min
|
|
Stepper drive, motor
|
Research and control YOKA 2811MA, 450B450C motor
|
|
Operating Voltage
|
380V 3PH AC power
|
|
working frequency
|
50Hz
|
|
Control System
|
RichAuto DSP control system
|
|
Pneumatic pressure
|
0.6-0.8Mpa
|
Products Description
After Sale Service Introduction
What kind of support you can get from Leapion？
1.
1 year
warranty，Provide a full range of technical support for life.
2.
From monday to sunday 9am to 22pm
.Experienced technician to guarantee lifetime online support（by whatsapp /skyper /wechat /email）.
So there is no need to worry about technical support due to time difference.
3.
Support local after-sales service. up to 2021, we have offered onsite to these countries and areas：
Canada, Mexico, the United States, Ukraine, Russia, Italy, Poland, Spain, Brazil, Indonesia, India, Turkey, Thailand, Vietnam, Australia,etc.
Packing&Shipping
Bare metal packaging size
：2900mm*1100mm*1450mm
Fumigation-free packaging size
：3050mm*1250mm*1680mm
Total weight
：1600kg
1.
Outside package: Strong wooden case.
2.
Inner package: Water-proof plastic film package with foam protection in each corner Solid Seaworthy Wood Box Package.
