80*80 R3.5 Billet 150*150 R6 Steel billet CONTINUOUS CASTING MACHINE 60 70 80 90 100 SQUARE STEEL BILLET CCM Production Line

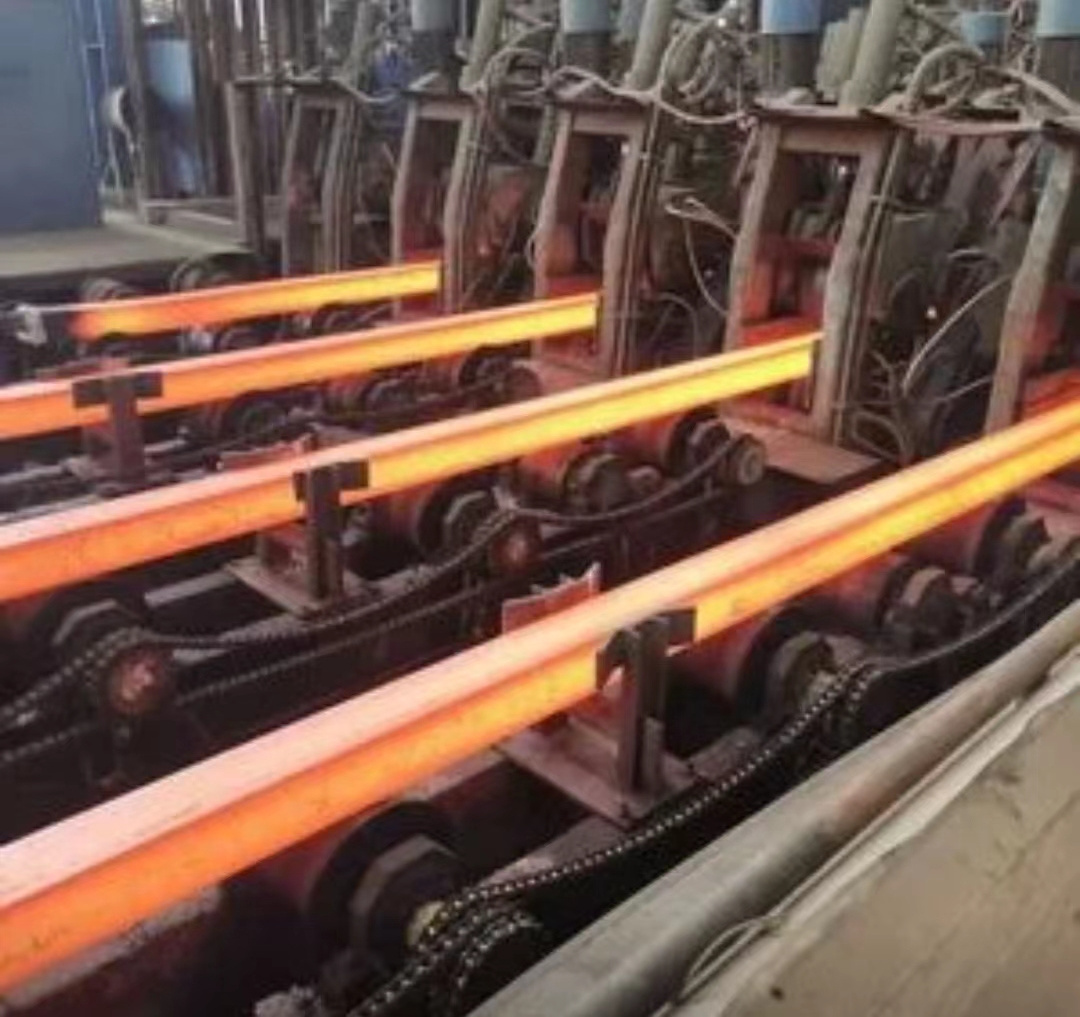

This machine is full arc continuous casting machine. The mould secondary cooling device and tension leveling equipment of full arc continuous casting machine are arranged on 1/4 radian of a circle. The casting billet forms an arc in the mold, moves along the arc track after being pulled out, and is cooled by water spray until it is completely solidified. The fully solidified casting billet is straightened at the horizontal tangent point, and then pulled out of the continuous caster to cut into a fixed length and output from the horizontal direction.

Advantage:
1) Because it is arranged in the 1/4 arc range, its height is lower than the vertical and vertical bending type, the weight of the equipment is lighter, the investment cost is lower, and the installation and maintenance of the equipment is convenient.
2) Due to the low height of the equipment, the static pressure of molten steel in the solidification process of the billet is
relatively small, which can reduce the internal crack and segregation caused by bulge deformation, and is conducive to improving the drawing speed and the quality of the billet.
