Quick Details
-
Warranty:
-
1 year
-
Brand Name:
-
Desun
-
Model Number:
-
DS5004
-
Place of Origin:
-
Guangdong, China
-
Outlet Size:
-
R1/2
-
Power:
-
75/72W, Electric
-
Theory:
-
Centrifugal Pump
-
Long life:
-
Over 20000 hours
-
Low noise:
-
≤45dB
-
Workig temp.:
-
≤100℃
-
Duty work:
-
Work a whole day continously
-
Certification 2:
-
RoHS,ce
-
Color:
-
Black
Quick Details
-
Application:
-
Other, Automotive Industry, Commercial Buildings, Developing World Water Solutions, Family Homes, HVAC OEM, Industrial Boilers, Industrial Utilities, Irrigation and Agriculture, Machining, Metal and Equipment Manufacturers, temperature control, Washing and Cleaning, Water Distribution, Water Treatment Solutions
-
Pressure:
-
1.5bar, Low Pressure
-
Voltage:
-
12/24v
-
Warranty:
-
1 year
-
Brand Name:
-
Desun
-
Model Number:
-
DS5004
-
Place of Origin:
-
Guangdong, China
-
Outlet Size:
-
R1/2
-
Power:
-
75/72W, Electric
-
Theory:
-
Centrifugal Pump
-
Long life:
-
Over 20000 hours
-
Low noise:
-
≤45dB
-
Workig temp.:
-
≤100℃
-
Duty work:
-
Work a whole day continously
-
Certification 2:
-
RoHS,ce
-
Color:
-
Black
Products Description

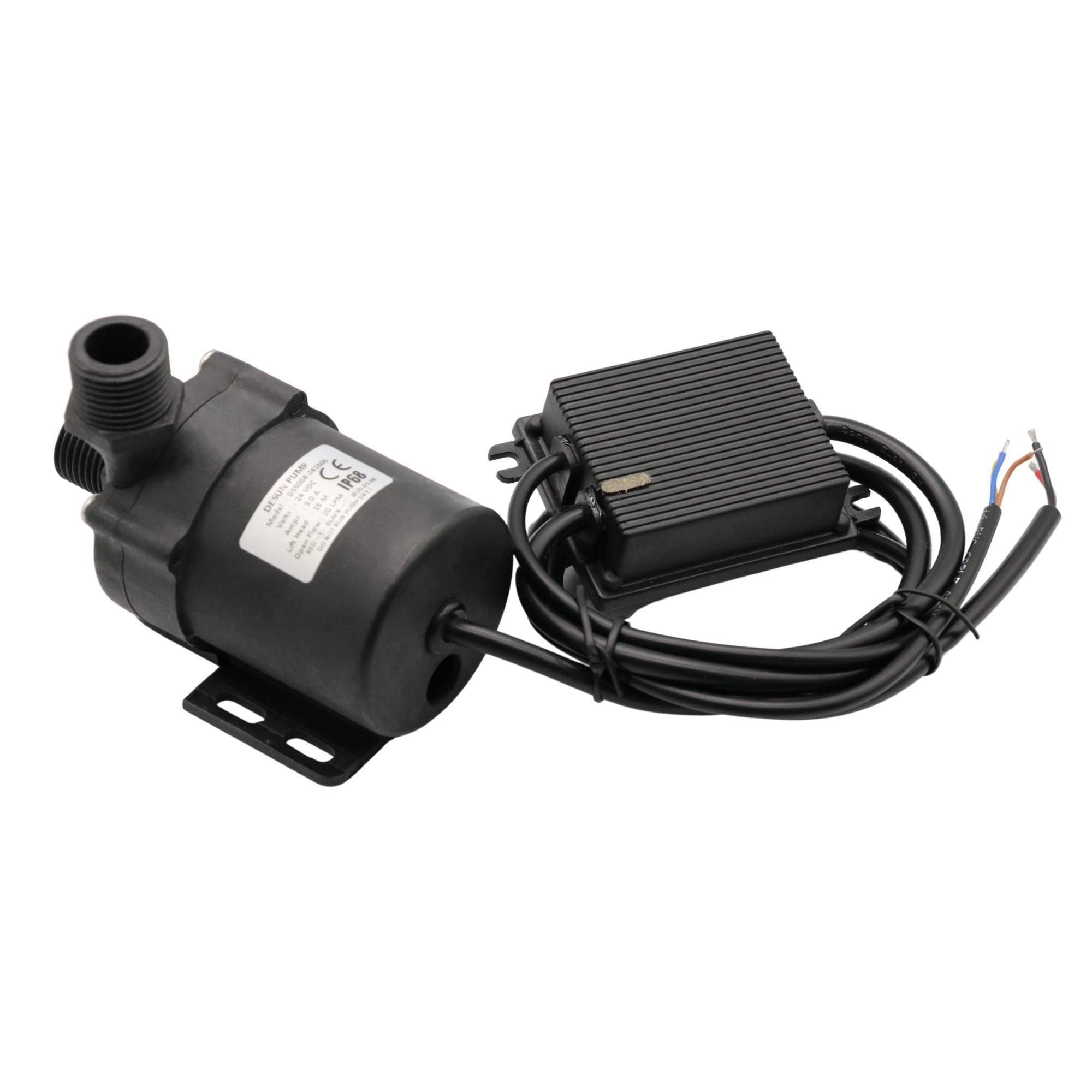

DS5004 CENTRIFUGAL ELECTRIC SUBMERSIBLE WATER PUMP
Features
1. Brushless motor, long life span； Expected life span is about 20000 hours.
2. Low noise: ≤35dB, far from 1meter distance.
3. Duty work: The pump can sustain heavy-duty work for a whole day. Continuous operation.
4. Small size, lightweight, easy to install；
5. Epoxy potting, IP68 waterproof rating；
6. Reliable Performance: Works quietly; Energy saving; High efficiency; Environment protection;
7. Durable permanent magnetic rotor and high density(stainless steel or zirconia)optional shaft；
Customizable Functions
1. 0~5V speed control;
2. FG signal wire;
3. PWM speed control;
4. PV solar powered
5. Submersible(water tempreture≤50℃);
6. High temperature customized(≥100℃);
7. Protective functions (Polarity reverse/over-voltage protection/waterless protection/rotor lock protection).
7. Protective functions (Polarity reverse/over-voltage protection/waterless protection/rotor lock protection).
Technical parameters
|
Product name
|
Water pump
|
|
Model
|
DS5004
|
|
Working voltage
|
12/24V(DC)
|
|
Max. flowrate
|
20L/min
|
|
Max. head
|
15M
|
|
Working temp.
|
≤100℃
|
|
Material
|
PPS
|
|
Water proof level
|
IP68
|
|
Noise
|
≤45dB
|
|
Lifetime
|
20000H
|
|
Inlet diameter
|
R1/2
|
|
Outlet diameter
|
R1/2
|
Related model technical parameters
|
Model
|
Volts
(V)
|
Amps
(A)
|
Flow
(LPM)
|
Head
(M)
|
Power
(W)
|
|
DS5004-1215
|
12
|
6.2
|
20
|
15
|
75
|
|
DS5004-2415
|
24
|
3.0
|
20
|
15
|
72
|
The technical parameters above are only a few for your reference. You can
tell us what you use for
, then we'll offer you suitable pumps.
Dimensional drawing and working curve diagram
PCB BOARD
Can be done inside and outside of pump
application scope pictures are only for reference.
Widely used for hydroponics, water heaters, hot water circulation, small air conditioner, mini aquarium, fish tank, water circulation, desktop fountain, Handicraft decoration water cycle, humidifier, Water and soil cultivation, pet fountain, etc...
We supply
Full Customization Service
, please
contact us
for the details.
Suppot both submersible and unsubmersible installation
