Quick Details
-
Voltage:
-
380V/415V/440V(customization)
-
Dimension(L*W*H):
-
customization
-
Weight:
-
customization
-
Air capacity:
-
Custom
-
Compressor Model:
-
Customization
-
Product Name:
-
Natural Gas Compressor
-
Structure:
-
Customization
-
Cooling Method:
-
Water Cooling/Air Cooling
-
Driven Method:
-
Belt Drven
-
Certification:
-
ISO9001:2015;CE;ROHS
Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
AOT
-
Model Number:
-
customization
-
Voltage:
-
380V/415V/440V(customization)
-
Dimension(L*W*H):
-
customization
-
Weight:
-
customization
-
Air capacity:
-
Custom
-
Compressor Model:
-
Customization
-
Product Name:
-
Natural Gas Compressor
-
Structure:
-
Customization
-
Cooling Method:
-
Water Cooling/Air Cooling
-
Driven Method:
-
Belt Drven
-
Certification:
-
ISO9001:2015;CE;ROHS

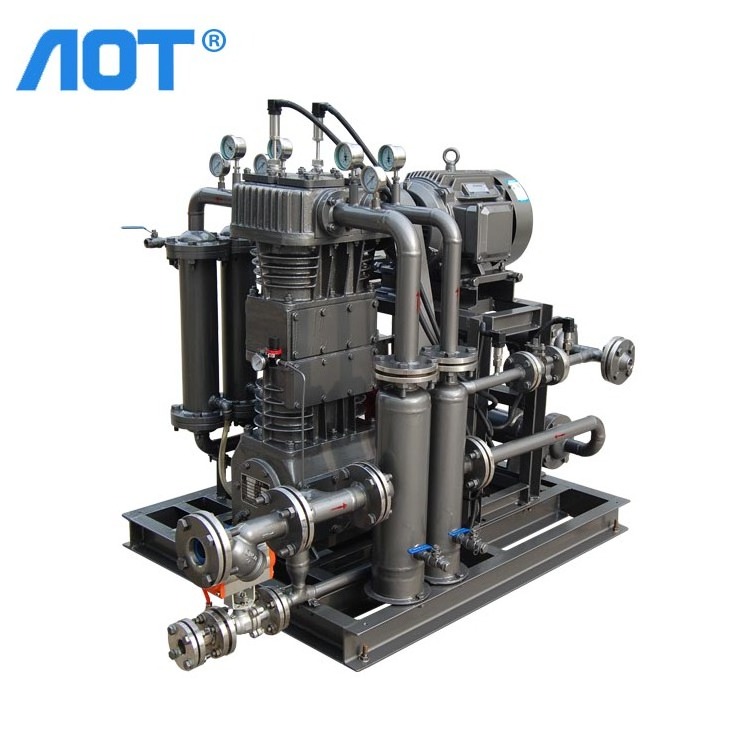

AOT Compressor
The compressor adopts oil-free lubrication structure and can run continuously for a long time. Meet the process requirements, suitable for all kinds of gases. All oil-free lubrication compressors with various parameters and requirements can be customized according to customer requirements.
✿
One-years warranty period for whole machine except of tubes and human factors etc, and 12-month of after-sale service from the date when you receive machine or 12 months when installation finished;
✿
Consultant services for whole machine life, and 24 hours technical support by email;
✿
UPS, English software, user manual and the installation & debugging by our experienced technicians.
|
Compressor
|
Product Model
|
|
ZW-0.3/0.2-5（customization ）
|
||
|
|
Type
|
|
Z Type（customization ）
|
||
|
|
Compressed medium
|
|
Biogas
|
||
|
|
Nominal volume flow(Nm
3
/h)
|
17.6
|
|
||
|
|
Compression stage
|
|
2
|
||
|
|
Cylinder number
|
|
2
|
||
|
|
Driving mode
|
|
Belt driven
|
||
|
|
Noise (sound pressure level) dB(A)
|
|
≤75
|
||
|
|
Cooling mode
|
|
Water cooling
|
||
|
|
Rotational speed (r/min)
|
|
550★
|
||
|
|
Suction pressure (Bar abs)
|
|
1.2
|
||
|
|
Discharge Pressure (Bar abs)
|
|
6
|
||
|
|
Suction temperature (℃)
|
|
≤40
|
||
|
|
Discharge temperature (℃)
|
|
≤150 after cooling≤40
|
||
|
|
Lubrication type
|
Crankshaft, connecting rod, cross head
|
Oil lubrication
|
||
|
|
Cylinder, Packing
|
Oil-free lubrication
|
|
||
|
Motor
|
Model
|
|
YBX3-112M-4
|
||
|
|
Explosion-proof grade
|
|
DIIBT4
|
||
|
|
Rotational speed (r/min)
|
|
1430★
|
||
|
|
Rated voltage (V)
|
|
380
|
||
|
|
Rated frequency(Hz)
|
|
50
|
||
|
|
Rated current (A)
|
|
8.39
|
||
|
|
Rated power (Kw)
|
|
4
|
||
|
Compressor size (L×W×H) mm
|
≈1100*800*1000★
|
|
|
||
|
Weight(kg)
|
≈350★
|
|
|
||
Note:With the parameters of the logo will be subject to leave the factory
Scope of supply
|
No.
|
Name
|
Number
|
|
1
|
Compressor host
|
1
|
|
2
|
Explosion-proof Motor
|
1
|
|
3
|
Water cooler
|
2
|
|
4
|
Inlet gas-liquid separator
|
2
|
|
5
|
The relief valve
|
2
|
|
6
|
Shared chassis
|
1
|
|
7
|
Gearing
|
1 set
|
|
8
|
Piping components
|
1 set
|
|
9
|
Random spare parts
|
1 set
|
|
10
|
The technical documentation
|
1 set
|
Bengbu AOT Compressor Co.,
is located in Bengbu Anhui.China. This is the world's important compressor production base. The company specializes in the development, manufacturing and sales of compressor products. The company is mainly engaged in the new type of high efficiency and environment-friendly special gas compressor for oxygen, hydrogen, menthane , liquefied gas, natural gas and gas station and chemical industry. The company has always adhered to the scientific and technology and design concept of compressor industry at home and abroad, combined with the actual situation in China, and applied scientific enterprise management and advanced manufacturing techiology in the design, development, assembly process and testing means. Product quality, to create first-class products.
Please tell me inlet pressure,outlet pressure,voltage frequency,capacity,the usage of compressor, I will recommend a
compressor
.
If you want to send me the inquiry,please fill the below technical information:
1. The flow rate: _____Nm
3
/hr
2. Inlet pressure: _____ Bar
3. Discharge pressure: _____ Bar
4. Voltages and Frequency : ______V/PH/HZ
5. ______ compressor .application:
If you are interested in it,please contact me freely
