Quick Details
-
Brand Name:
-
OTHELLO
-
Model Number:
-
ASL 550
-
Color:
-
Blue
-
PH:
-
2-11
-
Temperature:
-
73C+-450C
-
Processing Craft:
-
Moulding/Turning
-
Certification:
-
ISO9001 ISO14001
-
Feature:
-
Non asbestos
-
Name:
-
gaskets for high temperatures,acid resistant non asbestos gasket
-
Application:
-
flat ring gasket
-
Type:
-
Klinger type gasket sheet
Quick Details
-
Material:
-
aramid
-
Shape:
-
Flat Gasket
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
OTHELLO
-
Model Number:
-
ASL 550
-
Color:
-
Blue
-
PH:
-
2-11
-
Temperature:
-
73C+-450C
-
Processing Craft:
-
Moulding/Turning
-
Certification:
-
ISO9001 ISO14001
-
Feature:
-
Non asbestos
-
Name:
-
gaskets for high temperatures,acid resistant non asbestos gasket
-
Application:
-
flat ring gasket
-
Type:
-
Klinger type gasket sheet
gaskets for high temperatures,acid resistant non asbestos gasket,non caf gasket
Model: ASL 550
Material: Aramid Fiber
Normal size: 1524*1524mm
Thickness:
1.5mm ~ 5mm
gaskets for high temperatures,acid resistant non asbestos gasket,non caf gasket
Model: ASL 550
Pollution-free and corrosion proof spacer plates is mixed and compacted,taking
special synthetic fiber and elastic material as well as additive as its raw materials.
Feature:
The non asbestos sheet has high strength, good resistance to high temperature performance;
Good chemical stability, oil resistance, corrosion resistance;
Has the very good compression resilience;
Easy cutting , can be made into any size of sealing spacer;
On the working performance can completely replace and exceed asbestos products ,
non-toxic, non-polluting.
Application
Widely used in electric power, petroleum, chemical, instrumentation, mechanical
and other industries equipment, pipe, pump, valve static seal, and can effectively meet
the sealing requirements of all kinds of precision instrument surface;
Applicable medium:
water, steam, air, inert gas, salt solution, oil, acid and alkal medium, refrigerant, etc, liquid and
gaseous oxygen and so on.
Technical data
|
Type |
ASL 550 |
|
Color |
blue |
|
usage temperature |
-73~+450℃ |
|
The pH value |
2-11 |
|
High pressure |
≤130bar |
|
Normal size |
1524mm×1524mm Thickness:1.5mm ~ 5mm Tolerance:±3% we could make into sealing spacer according to customers requirments. |

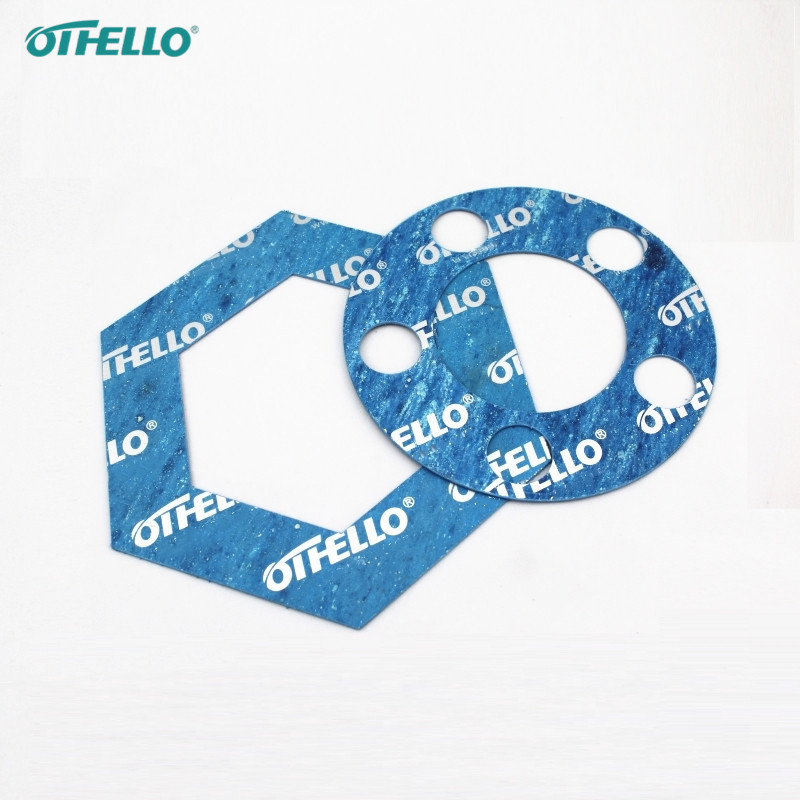

non asbestos gaskets with high temperature photos
