Quick Details
-
Warranty:
-
2 years, 2 year
-
Brand Name:
-
Feili pump solar
-
Model Number:
-
3FLS1.8/100-D24/270
-
Place of Origin:
-
Zhejiang, China
-
Horsepower:
-
0.5hp
-
Power Source:
-
solar power
-
Cable Length:
-
3m
-
Outlet Size:
-
0.75/1 inch
-
Power:
-
400W, 270w
-
Material:
-
stainless steel
-
Max flow:
-
1.8m3/h
-
Max head:
-
100m
-
Outlet dia:
-
0.75 inch
-
Motor:
-
brushless dc motor
-
Pump dia:
-
3 inch
Quick Details
-
Application:
-
Drinking water treatment, Family Homes, Irrigation and Agriculture
-
Pressure:
-
Low Pressure
-
Voltage:
-
DC24V, DC 24V
-
Warranty:
-
2 years, 2 year
-
Brand Name:
-
Feili pump solar
-
Model Number:
-
3FLS1.8/100-D24/270
-
Place of Origin:
-
Zhejiang, China
-
Horsepower:
-
0.5hp
-
Power Source:
-
solar power
-
Cable Length:
-
3m
-
Outlet Size:
-
0.75/1 inch
-
Power:
-
400W, 270w
-
Material:
-
stainless steel
-
Max flow:
-
1.8m3/h
-
Max head:
-
100m
-
Outlet dia:
-
0.75 inch
-
Motor:
-
brushless dc motor
-
Pump dia:
-
3 inch
Pump Description
Pump details
MPPT Controller
(1) Waterproof grade: IP65
(2) Ambient temperature: -15C-60C
(3) MPPT function, the solar power uilization rate is higher.
(4) Automatic charging function: Guarantee the pump normally working, meanwhile charge the battery; And when there
is no sunshine, the battery can make the pump continuously working.
(5) LED displays the power, voltage, current, speed etc working condition.
(6) Frequency conversion function: It can automatically run with frequency conversion according to the solar power, and
user also can change the speed of pump manually.
(7) Automatically start and stop working.
(8) Water proof and leak-proof: Double seal effect.
(9) Soft start: No impulse current, protect the pump motor.
(10) High voltage/Low voltage/Over- current/High temperature protection
Product Parameters and Connection

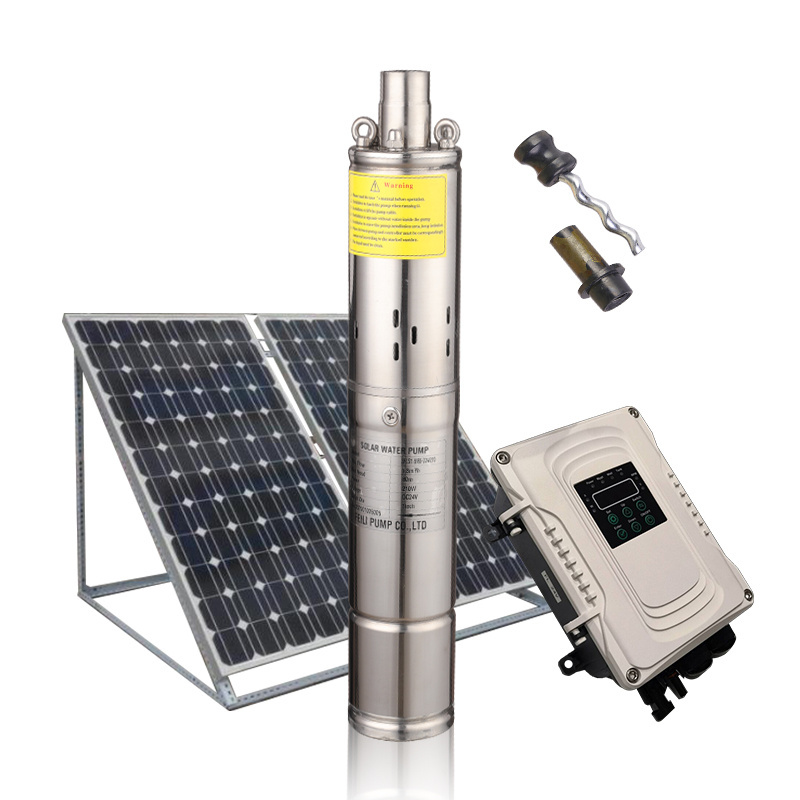

Solar Submersible Water Pump
Model:
3FLS1.8/100-D24/270
Power: 270W
Voltage: DC 24V
Max flow: 1.8m3/h=6480L/day
(pump 6hours on daytime)
Max head: 100m (suitable for 60-70m deep well)
Outlet Dia: 1inch
Pump Dia: 3inch
Cable: 3M
Suggest equip solar panels: 2 x 275W
|
A
mm
|
B
mm
|
C
mm
|
D
mm
|
|
418
|
190
|
228
|
75
|
▶Solar Pump Curve
▶Connection Way
Package
Complete Solar Pump System
Work principle of Feili solar pump system
1. solar panels convert sunlight into electricity
2. MPPT DC controller connect the solar
panel with pump.
3. Pump out water into tank
4. Start and stop pumping automatically
according to water level.
5. The tank supplies water to the community
(gravity feed).
