Quick Details
-
Dimension(L*W*H):
-
5300*2100*3300mm
-
Weight:
-
5200kg
-
Warranty:
-
1 year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
corn silage machinery for sale
-
Cutting width (mm):
-
2100mm
-
Tractor Power:
-
113KW(154HP)
-
Engine:
-
Weichai Brand
-
Function:
-
silage harvesting
-
Throwing distance:
-
over 3000mm
-
Straw chopping mechanism:
-
vertical
-
Throwing height:
-
4800
-
Working speed:
-
1-4km/h
-
Productivity:
-
0.42-0.84ha/h
-
Application:
-
Corn and Grass chopper machine
Quick Details
-
Model Number:
-
9QZ-2100
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
DINGGUAGUA
-
Dimension(L*W*H):
-
5300*2100*3300mm
-
Weight:
-
5200kg
-
Warranty:
-
1 year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
corn silage machinery for sale
-
Cutting width (mm):
-
2100mm
-
Tractor Power:
-
113KW(154HP)
-
Engine:
-
Weichai Brand
-
Function:
-
silage harvesting
-
Throwing distance:
-
over 3000mm
-
Straw chopping mechanism:
-
vertical
-
Throwing height:
-
4800
-
Working speed:
-
1-4km/h
-
Productivity:
-
0.42-0.84ha/h
-
Application:
-
Corn and Grass chopper machine
Farm tools and equipment and their uses corn silage machinery for sale

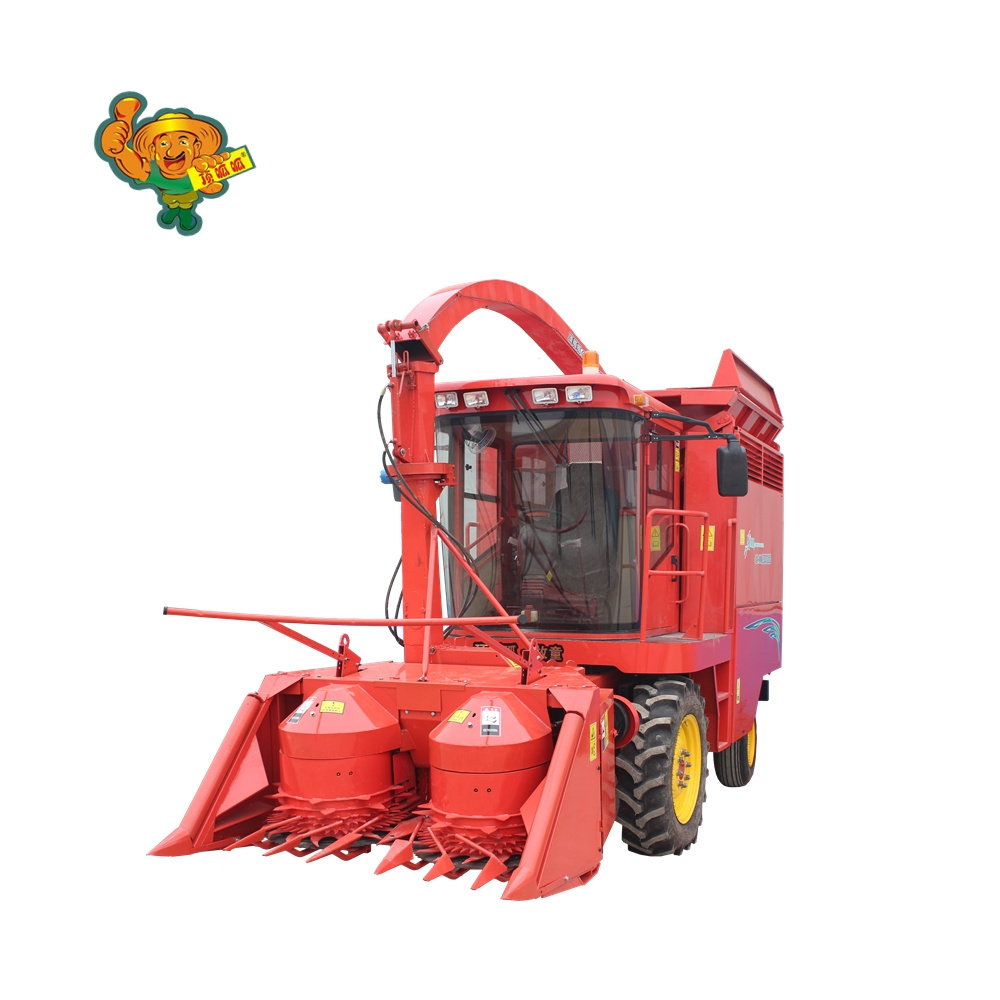

Maize corn silage machine introduction
1. The design of double discs header feeds all the crops uniformly into drum, which can cut all the stalks within the working width(not row by row), to improve the yield rate.
2. Adopted upright feeding roller, upright chaffcutter, which is simple structure and stable performance, not only cutting off the straw cuticle, but also retaining the nutrients,
3. They are equipped with YTO inline 4-cylinder with 154hp turbo engine , efficient and high-powered.
4. The new cab with 270 degree wide field of vision and simple operating system makes it easy to drive.
5. Equipment with storage containers of forage makes forages recycle and harvest more convenient.
6. Big track and short wheelbase make it convenient and flexible to bend and turn
7. High efficiency, low price, and low fuel consumption , make this machine become more and more small and middle size pasture’s first choice.
Corn napier silage animal feed grass cutting machine
corn silage machinery specification
|
Item |
Unit |
Specification |
|
Model |
9QZ-2100 |
|
|
Overall dimension (length, width, height) |
mm |
5300*2100*3300 |
|
Net weight |
kg |
5200 |
|
Engine power |
kw |
154 |
|
Mainshaft speed of cutting device |
r/min |
1300 |
|
Header width |
mm |
2100 |
|
Header up-down scope |
mm |
0-400 |
|
Cutting device Structure |
upright |
|
|
Throwing drum turning angle |
° |
360 |
|
Rotor diameter of cutting device |
mm |
800 |
|
Cutting length |
mm |
Adjust the quantity of the saws |
|
Throwing height |
mm |
4300 |
|
Throwing distance |
mm |
≥3000 |
|
Walking velocity |
km/h |
1-10 |
9QZ-2100 corn silage harveser make corn silage for dairy farm feeding
9QZ-2100 napier grass chopper machine for dairy farm feeding
9QZ-2100 silage harvester make different crops in fields
9QZ-2100 corn silage machinery for sale on 2017 Agricultural exhibition
2.1 m Double disc cutting header can hitch frount of 90HP tractor
9QZ-2100 corn silage machinery for sale engine details
Maize chopper forage harvester with Unload system of forage makes forages recycle and harvest more convenient.
9QZ-2100 corn forage chopper machine for sale with Trelleborg Vacuum tyre
Corn silage length is adjustable and the strubble can be less 15cm
The real corn silage effect by our corn silage chopper machine
9QZ-2100 corn silage machinery for sale loaded in our factory
