Quick Details
-
Production Capacity:
-
20-70bags/min
-
Weight (KG):
-
220
-
Voltage:
-
220V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
YB
-
Dimension(L*W*H):
-
800*680*1800mm
-
Name of machine:
-
ice pop packing machine
-
Tracking system:
-
photoelectric eye
-
Main Function:
-
Automatic Form
-
Packing speed:
-
30-60 Bags/min
-
Machine material:
-
304 stainless steel
-
Bag length:
-
50-330mm, adjustable
-
Language:
-
English
-
Film material:
-
Compound film
-
Film width:
-
50-280mm
-
Operaet panel:
-
Touch screen
Quick Details
-
Function:
-
FILLING, COATING, Sealing, SLITTING
-
Packaging Type:
-
Bags, Foil, case
-
Packaging Material:
-
Wood
-
Production Capacity:
-
20-70bags/min
-
Weight (KG):
-
220
-
Voltage:
-
220V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
YB
-
Dimension(L*W*H):
-
800*680*1800mm
-
Name of machine:
-
ice pop packing machine
-
Tracking system:
-
photoelectric eye
-
Main Function:
-
Automatic Form
-
Packing speed:
-
30-60 Bags/min
-
Machine material:
-
304 stainless steel
-
Bag length:
-
50-330mm, adjustable
-
Language:
-
English
-
Film material:
-
Compound film
-
Film width:
-
50-280mm
-
Operaet panel:
-
Touch screen

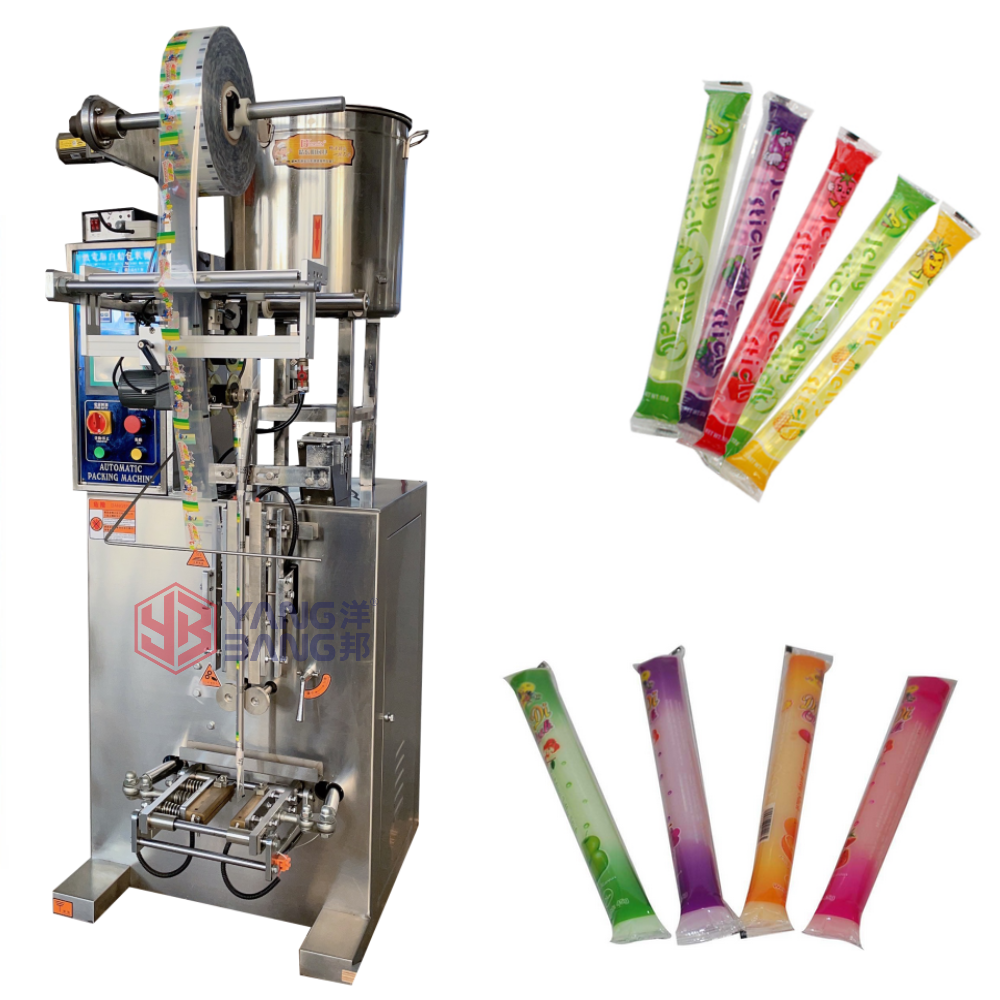

Usage: This machine is mainly used for liquid ice lolly (jelly stick), pure water, milk, soy sauce, vinegar, etc.
Machine function and features:
1. This machine can automatically complete following work: solenoid valve control flow measuring--coding (optional)--bag making--filling--sealing--counting.
2. Computer/PLC control system, photoelectric tracking, maximizes the whole machine's control precision, reliability and the intellectualized degree.
3. Has fault display system, easy to operate and maintenance.
4. Machine body and all food touching part are made by stainless steel.
Technical parameters:
|
Model |
YB-330Y Automatic ice lolly packing machine
|
|
Packing speed |
20-80 bags/min |
|
Packing range |
5-300ml |
|
Film width |
≤ 280mm |
|
Making bag size |
L: 50-330mm, W: 15-130mm |
|
Packing accuracy |
≥99% |
|
Power |
1.6 KW |
|
Power supply |
220V, 50/60Hz |
|
Seal type |
Pillow/back seal, 3/4 sides seal |
|
Net weight |
230kg |
|
Machine dimension |
L800 × W790 × H1800mm |
