Quick Details
-
Brand Name:
-
AFK
-
Standard or Nonstandard:
-
Standard
-
MOQ:
-
1
-
Material:
-
brass
-
Applicable:
-
gas, water, liquid
-
Pressure Environment:
-
normally
-
Standard:
-
AC220V, AC110V, AC380V, DC12V no heating, DC24V no heating
-
warranty:
-
12months
-
Certification:
-
CE
Quick Details
-
Port Size:
-
1/2"
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
2w-160-15
-
Brand Name:
-
AFK
-
Standard or Nonstandard:
-
Standard
-
MOQ:
-
1
-
Material:
-
brass
-
Applicable:
-
gas, water, liquid
-
Pressure Environment:
-
normally
-
Standard:
-
AC220V, AC110V, AC380V, DC12V no heating, DC24V no heating
-
warranty:
-
12months
-
Certification:
-
CE

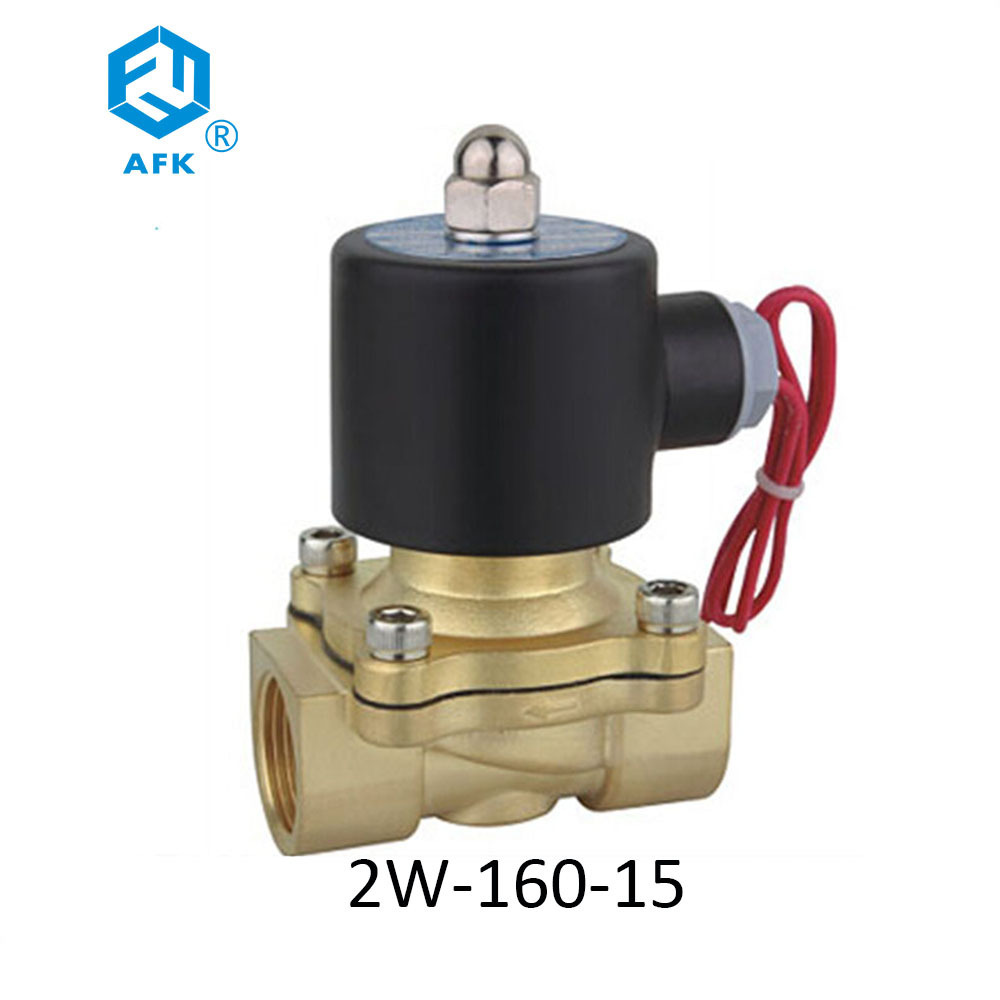

Brass N/C 2w160-15 240v water solenoid valve
Technical Data:
|
Model NO. |
2w-025-06 |
2w-025-08 |
2w-040-10 |
2w-160-10 |
2w-160-15 |
2w-200-20 |
2w-250-20 |
2w-320-32 |
2w-400-40 |
2w-500-50 |
|
Pipe size |
1/8” |
1/4” |
3/8” |
1/2” |
3/4” |
1” |
1 1/4 “ |
1 1/2” |
2” |
|
|
Orifce size |
2.5mm |
4mm |
4mm |
16mm |
16mm |
20mm |
25mm |
32mm |
40mm |
50mm |
|
CV valve |
0.23 |
0.6 |
4.8 |
4.8 |
7.6 |
12 |
24 |
29 |
48 |
|
|
fuild |
Air, water, ol, the neutral gas,liquid |
|||||||||
|
Service voltage |
AC380V,AC220V,AC110V,AC24V,DC24V, (allow) ± 10% |
|||||||||
|
Operating |
Direct acting |
Type |
Normally closed |
|||||||
|
Body Material |
Brass |
viscosity |
(Below)20CST |
|||||||
|
Working pressure |
Water, air;0-10kgf/m2 ;oil:0-7kgf/m2 |
|||||||||
|
Material of seal |
Standard: below 80 °C fuild temperature use NBR below 120 °C use EPDM below 150 °C use VITONSEAL |
|||||||||
Main features
- the direct-acting type diaphragm structure without pressure to open to extend the using field.
- Using the plate diaphragm structure opening and closing with reliable. Then extent product life.
- Can choose plastic type,. Explosion-proof energy-saving.
