Quick Details
-
Place of Origin:
-
Anhui China
-
Brand Name:
-
GW
-
Model Number:
-
DN80-2000mm
-
Range of Sizes:
-
DN80-2000mm
-
Usage:
-
Pipe Connection
-
External Coating:
-
Zinc-Rich Coating and Bitumen Painting
-
End Connection:
-
Flange
-
Brand:
-
GW
-
Packing:
-
Wooden Case or Pallet
-
Lining:
-
Cement Mortar Lining
-
Gasket Material:
-
SBR
-
Material:
-
Ductile Iron GGG450-12 ASTM A546
-
Pressure:
-
PN10 PN16 PN25
Quick Details
-
Technics:
-
Casting
-
Shape:
-
Equal
-
Head Code:
-
Round
-
Place of Origin:
-
Anhui China
-
Brand Name:
-
GW
-
Model Number:
-
DN80-2000mm
-
Range of Sizes:
-
DN80-2000mm
-
Usage:
-
Pipe Connection
-
External Coating:
-
Zinc-Rich Coating and Bitumen Painting
-
End Connection:
-
Flange
-
Brand:
-
GW
-
Packing:
-
Wooden Case or Pallet
-
Lining:
-
Cement Mortar Lining
-
Gasket Material:
-
SBR
-
Material:
-
Ductile Iron GGG450-12 ASTM A546
-
Pressure:
-
PN10 PN16 PN25
Products Description

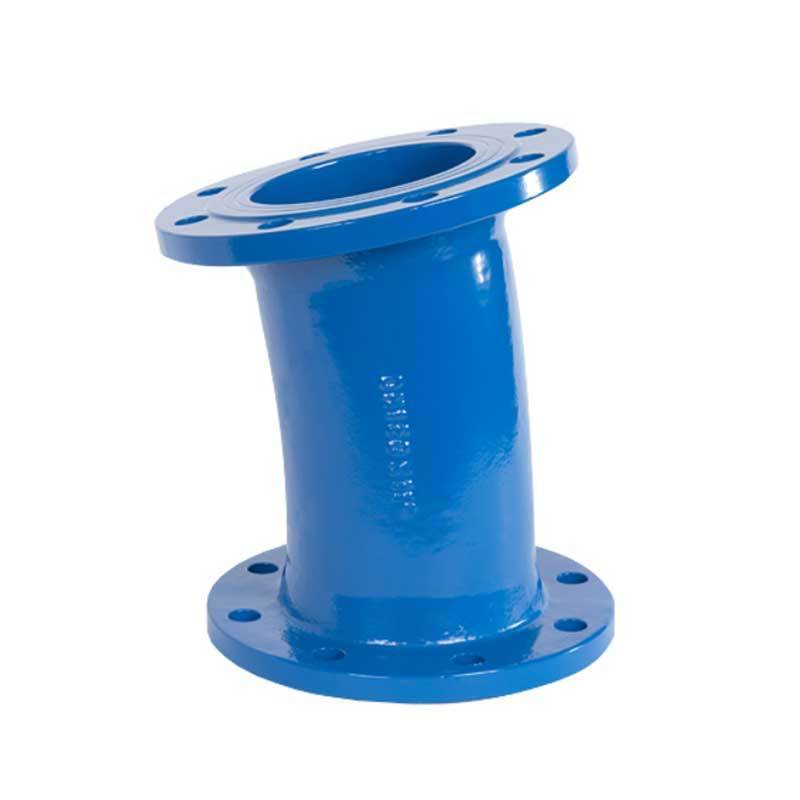

ductile iron pipe fittings
Our ductile iron pipe fittings series including Double Socket Bend, Double Flange Bend, All Socket Tee, All Flange Tee, Double Flange Taper, Double Socket Taper, All Socket Cross, All Flange Cross, Double Flange Duckfoot Bend Elbow, Double Flange Short Pipe, Collars, Blind Flange and etc Our ductile iron pipe fittings are widely used for water supply, drainage, sewage, irrigation industry
Product Features
Product Paramenters
|
● Double Flange Bend90
|
|
|
|
|
||||
|
DN
|
L
|
Mass(Kg)
|
|
|
||||
|
|
|
PN10
|
PN16
|
PN25
|
||||
|
80
|
165
|
9.6
|
9.6
|
9.6
|
||||
|
100
|
180
|
11.9
|
11.9
|
12.9
|
||||
|
150
|
220
|
20
|
20
|
22
|
||||
|
200
|
260
|
31
|
30.5
|
34.5
|
||||
|
250
|
350
|
50
|
49.5
|
57
|
||||
|
300
|
400
|
70
|
70
|
81
|
||||
|
350
|
450
|
90
|
96
|
113
|
||||
|
400
|
500
|
116
|
127
|
149
|
||||
|
450
|
550
|
143
|
160
|
190
|
||||
|
500
|
600
|
181
|
211
|
235
|
||||
|
600
|
700
|
272
|
325
|
353
|
||||
|
700
|
800
|
386
|
416
|
473
|
||||
|
800
|
900
|
533
|
572
|
653
|
||||
|
900
|
1000
|
698
|
745
|
841
|
||||
|
1000
|
1100
|
907
|
990
|
1163
|
||||
|
1200
|
1300
|
1490
|
1619
|
1728
|
||||
|
1400
|
1350
|
2199
|
2335
|
2640
|
||||
|
1600
|
1450
|
2796
|
2983
|
/
|
||||
|
1800
|
1500
|
3515
|
3750
|
/
|
||||
|
2000
|
1650
|
4307
|
4613
|
/
|
||||
|
●Double Flange Bend45°
|
|
|
|
|
||||
|
DN
|
L
|
Mass(Kg)
|
|
|
||||
|
|
|
PN10
|
PN16
|
PN25
|
||||
|
80
|
130
|
9.3
|
9.3
|
9.3
|
||||
|
100
|
140
|
11.3
|
11.3
|
12.4
|
||||
|
150
|
160
|
18.5
|
18.5
|
20.5
|
||||
|
200
|
180
|
27.5
|
27
|
31
|
||||
|
250
|
350
|
55
|
54
|
62
|
||||
|
300
|
400
|
78
|
77
|
88
|
||||
|
350
|
298
|
76
|
83
|
89
|
||||
|
400
|
324
|
96
|
107
|
129
|
||||
|
450
|
349
|
116
|
132
|
158
|
||||
|
500
|
375
|
145
|
175
|
198
|
||||
|
600
|
426
|
212
|
266
|
294
|
||||
|
700
|
478
|
296
|
326
|
388
|
||||
|
800
|
529
|
403
|
442
|
528
|
||||
|
900
|
581
|
519
|
567
|
669
|
||||
|
1000
|
632
|
668
|
751
|
881
|
||||
|
1200
|
750
|
1050
|
1178
|
1345
|
||||
|
1400
|
775
|
1388
|
1524
|
1852
|
||||
|
1600
|
845
|
1915
|
2119
|
2416
|
||||
|
1800
|
910
|
2465
|
2717
|
3125
|
||||
|
2000
|
980
|
3149
|
3455
|
3907
|
||||
