Quick Details
-
Controller Type:
-
MPPT
-
Certificate:
-
CE, MSDS, UN38.3, TUV
-
Warranty:
-
12 Years
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
Dawnice
-
Model Number:
-
DW120
-
Output Voltage (V):
-
120V/240V; 220V/380V
-
Output Frequency:
-
50HZ/60HZ
-
Work Time (h):
-
24H
-
Inverter type:
-
Offgrid Inverter
-
Battery:
-
Lifepo4 Lithium Battery
Quick Details
-
Application:
-
Home
-
Solar Panel Type:
-
Monocrystalline Silicon
-
Battery Type:
-
Lithium Ion
-
Controller Type:
-
MPPT
-
Certificate:
-
CE, MSDS, UN38.3, TUV
-
Warranty:
-
12 Years
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
Dawnice
-
Model Number:
-
DW120
-
Output Voltage (V):
-
120V/240V; 220V/380V
-
Output Frequency:
-
50HZ/60HZ
-
Work Time (h):
-
24H
-
Inverter type:
-
Offgrid Inverter
-
Battery:
-
Lifepo4 Lithium Battery
Product Description
Specification
|

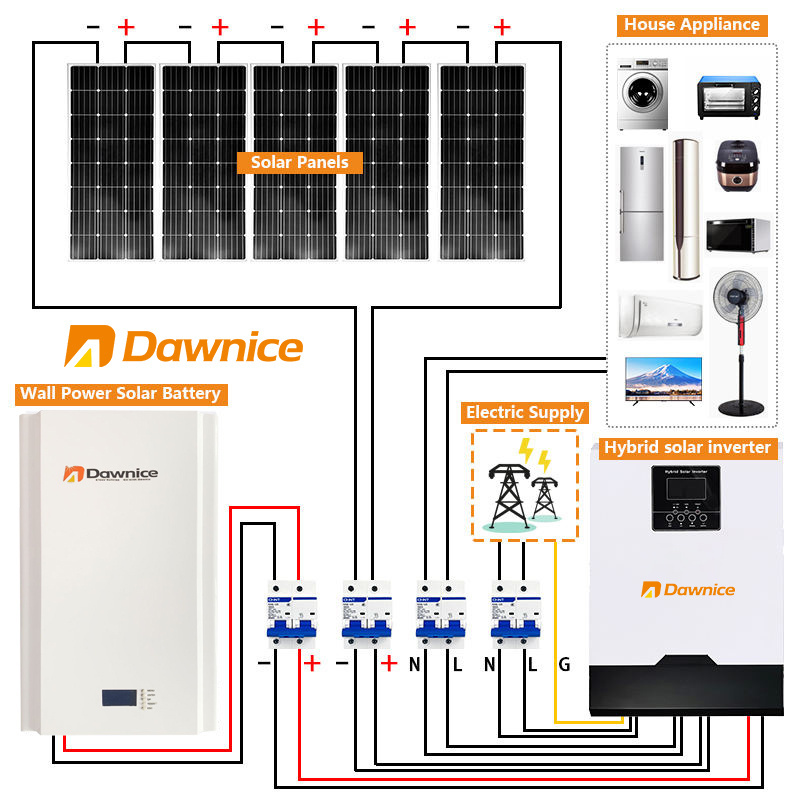

5KW Off Grid Solar Power System Components List
|
|
|
|
|||
|
Item
|
Model
|
Description
|
Quantity
|
|||
|
1
|
Solar Panel
|
Mono 390w solar panel
|
10 pcs
|
|||
|
2
|
PV combiner box
|
5 input 1 output
|
1 pc
|
|||
|
3
|
Hybrid inverter(Charge controller & Inverter)
|
MPPT 48V 60A
Rate power: 5KW |
1 pc
|
|||
|
4
|
Battery with cable
|
12V 200Ah
|
4 pc
|
|||
|
5
|
PV Cable
|
4mm² PV cable
|
100 m
|
|||
|
6
|
Connector
|
Solar connector
|
10 pairs
|
|||
|
7
|
Ground/Roof mounting system
|
Customize for 18pcs of 390w solar panel
|
1 set
|
|||
|
10KW Off Gird Solar Power System Components List
|
|
|
|
|||
|
Item
|
Model
|
Description
|
Quantity
|
|||
|
1
|
Solar Panel
|
Mono 390w solar panel
|
18 pcs
|
|||
|
2
|
PV combiner box
|
6 input 2 output
|
1 pc
|
|||
|
3
|
Hybrid inverter(Charge controller & Inverter)
|
MPPT 48V 120A
Rate power: 10KW |
1 pc
|
|||
|
4
|
Battery with cable
|
12V 220Ah
|
8 pcs
|
|||
|
5
|
PV Cable
|
4mm² PV cable
|
200 m
|
|||
|
6
|
Connector
|
Solar connector
|
15 pairs
|
|||
|
7
|
Ground/Roof mounting system
|
Customize for 18pcs of 390w solar panel
|
1 set
|
|||
Customer Photos
Packing & Delivery
1. Individual box packaging
2. Large quantities can be packed in wooden pallets
3. Packaging can be customized according to customer needs
