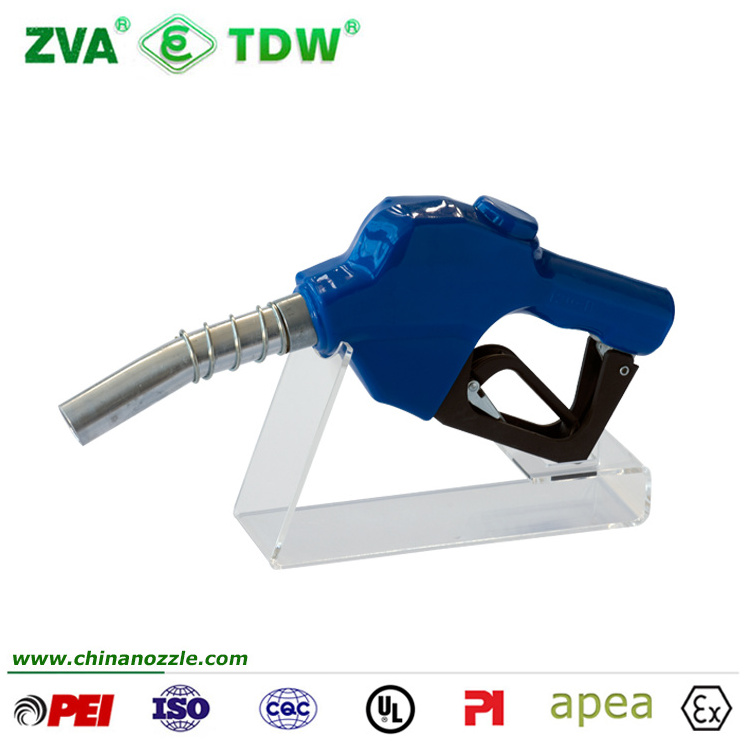

TDW 7H Fuel Dispenser Oil Nozzle With UL

TDW 7H Fuel Dispenser Oil Nozzle With UL

FOB Reference Price: Get Latest Price

≥10 Pieces

US $8

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: TDW

Model Number:: TDW-7HB

Car Make:: Fuel Dispenser

Working Pressure:: 0.2 MPa

Auto Shut-off Sensibility:: 0.1 Second

Inlet Size:: 1"

Flow Rate:: 20 - 120 L/M

Thread:: NPT or BSPT

Cover:: PVC

Net Weight:: 1.55 Kg

Spout Outlet Diameter:: 30 mm, 28.7 mm

Seals:: Buna-N, Viton

Lever and Lever Guard:: Duratuff

Quick Details

OE NO.:: TDW-7HB

Size:: 1''

Warranty:: 1 Years

Place of Origin:: Zhejiang, China

Brand Name:: TDW

Model Number:: TDW-7HB

Car Make:: Fuel Dispenser

Working Pressure:: 0.2 MPa

Auto Shut-off Sensibility:: 0.1 Second

Inlet Size:: 1"

Flow Rate:: 20 - 120 L/M

Thread:: NPT or BSPT

Cover:: PVC

Net Weight:: 1.55 Kg

Spout Outlet Diameter:: 30 mm, 28.7 mm

Seals:: Buna-N, Viton

Lever and Lever Guard:: Duratuff

TDW 7H Fuel Dispenser Oil Nozzle With UL

Product Description

Ø Even, Smooth spray pattern - Minimizes diesel foaming and false shut-off
Ø Extra long anchor spring - Keeps the nozzle secure in most large fill opening.
Ø Help reduces spills - A unique two-stage lever design assures a positive shut-off, even if held wide open.
Ø Three Position hold-open device - One finger control of hold-open mechanism means easy setting of flow rate.
Ø Easily replaced spouts -Simply remove three screws, Replacement kits are readily available from TDW.
Ø Dash-pot Action - For smoother closing action and reduced line shock.
Ø Dual Poppet - Easy to open nozzle against high pressure.
Ø Available with flow lock - Designed to shut off automatically when the spout is tipped ip, limiting spillage.
Ø Suitable for diesel, kerosene, gasoline and gasoline with ethanol blends.
Ø 100% Factory Tested.
Ø TDW-7H UL LISTED.

Material
Body	Aluminum
Lever and lever guard	Duratuff
Main stem	Extra hard stainless steel
Seals	Buna-N, Viton

Technical Specifical
Working Pressure	0.2 Mpa
Auto Shut-off sensibility	0.1 second
Inlet Size	1"
Thread	NPT/BSPT
Spout Outlet Diameter	30 mm, 28.7 mm
Flow Rate	20 - 120 L/m
Net Weight	1.55 KG

Order Select

Order Specifications
Item No.	Inlet Thread	Spout O.D.
TDW-7H01	1" NPT	28.7 mm
TDW-7H02	1" NPT	30 mm
TDW-7H03	1" BSPT	28.7 mm
TDW-7H04	1" BSPT	30 mm
TDW-7HB01	1" NPT	28.7 mm
TDW-7HB02	1" NPT	30 mm
TDW-7HB03	1" BSPT	28.7 mm
TDW-7HB04	1" BSPT	30 mm
