Quick Details
-
Wheel Size(mm):
-
180
-
Surface Roughness(μm):
-
0.32 μm
-
Table Size(mm):
-
460*180
-
Year:
-
2022
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Xieli Machinery
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
1550*1150*1590
-
Weight (KG):
-
650
-
Power (kW):
-
1.1
-
Brand:
-
Xieli Machinery
-

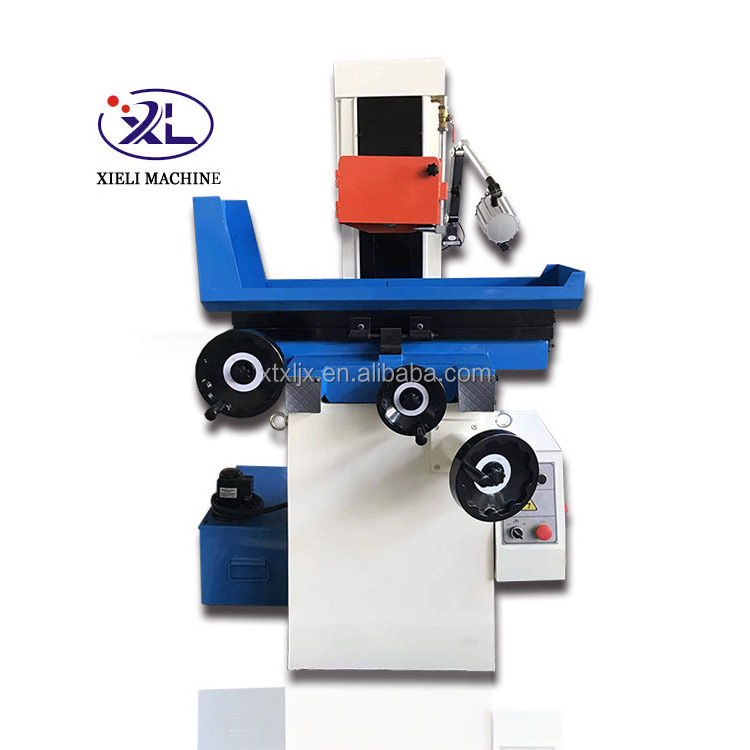

Product name:
-
Surface Grinding Machine
-
Application:
-
Stainless Steel
-
Usage:
-
Surface Polishing
-
Function:
-
Metal Grinder
-
Wheel Speed 50hz:
-
2850r/min
-
Wheel Speed 60hz:
-
3440r/min
-
Wheel Size:
-
180*13*31.75
-
Distance spinde center line to table:
-
335
-
Table longitudinal moving speed:
-
3-20m/min
Quick Details
-
Grinding Length(mm):
-
500
-
Table Travel (X) (mm):
-
500
-
Table Travel (Y) (mm):
-
190
-
Wheel Size(mm):
-
180
-
Surface Roughness(μm):
-
0.32 μm
-
Table Size(mm):
-
460*180
-
Year:
-
2022
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Xieli Machinery
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
1550*1150*1590
-
Weight (KG):
-
650
-
Power (kW):
-
1.1
-
Brand:
-
Xieli Machinery
-
Product name:
-
Surface Grinding Machine
-
Application:
-
Stainless Steel
-
Usage:
-
Surface Polishing
-
Function:
-
Metal Grinder
-
Wheel Speed 50hz:
-
2850r/min
-
Wheel Speed 60hz:
-
3440r/min
-
Wheel Size:
-
180*13*31.75
-
Distance spinde center line to table:
-
335
-
Table longitudinal moving speed:
-
3-20m/min
|
Specifications |
Units |
M618A |
M820 |
M1022 |
|
|
Table size (L * W) |
mm |
460*180 |
480*200 |
540*250 |
|
|
Table travel (L * W) |
mm |
500*190 |
530*220 |
560*260 |
|
|
Table T slot (number * width) |
mm |
1*14 |
1*14 |
1*14 |
|
|
Distance spindle center line to table |
mm |
335 |
440 |
420 |
|
|
Wheel size (O. D * W * I. D.) |
mm |
180*13*31.75 |
200*20*31.75 |
200*20*31.75 |
|
|
Wheel speed 50HZ |
r/min |
2850 |
2850 |
2850 |
|
|
Wheel speed 60HZ |
r/min |
3440 |
3440 |
3440 |
|
|
Table longitudinal moving speed |
m/min |
3-20 |
3-20 |
3-20 |
|
|
Table cross feed |
Hand feed per rev |
mm/rev |
2.5 |
2.5 |
4 |
|
|
Hand feed per gra |
mm/gra |
0.02 |
0.02 |
0.02 |
|
Head vertical moving |
Hand feed per rev |
mm/rev |
1.25 |
1.25 |
1.25 |
|
|
Hand feed per gra |
mm/gra |
0.01 |
0.01 |
0.01 |
|
Spindle motor power |
kw |
1.1 |
1.1 |
1.5 |
|
|
Coolant motor power |
w |
40 |
40 |
40 |
|
|
Machining surface parallelism |
mm |
0.005/300 |
0.005/300 |
0.005/300 |
|
|
Surface roughness |
um |
Ra0.32 |
Ra0.32 |
Ra 0.32 |
|
|
Permanent magnetic chuck size |
mm |
400*150 |
400*200 |
500*250 |
|
|
Machine weight |
kg |
650/750 |
750/850 |
850/950 |
|
|
Overall dimension(L * W * H) |
mm |
1550*1150*1590 |
1680*1140*1760 |
1680*1220*1760 |
|
