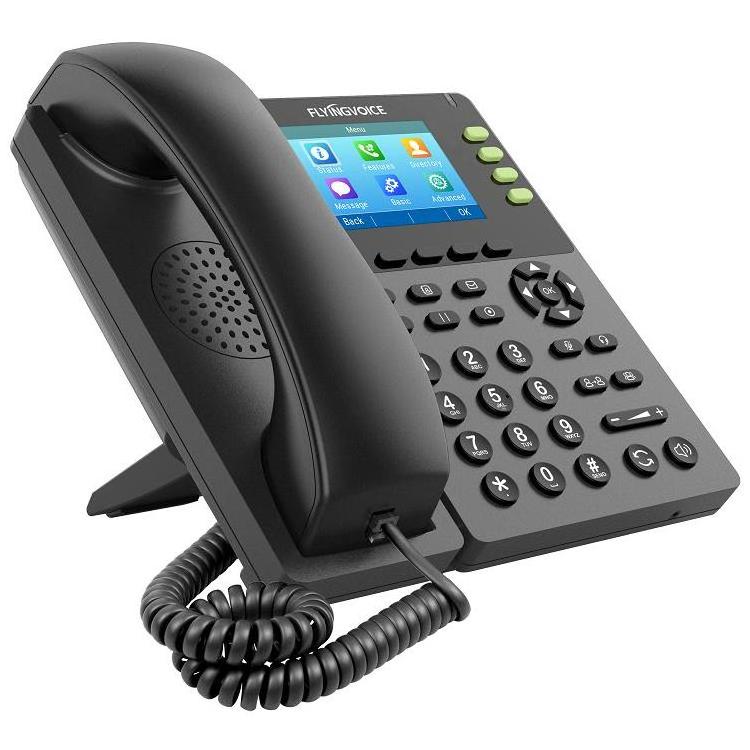

high quality FIP13G PoE IP Phone sip VoIP phone from SunSoont

Audio Features

Display and Indicator

Network and Security

> HD voice: HD handset, HD speaker
> Wideband Codec: G.722, Opus, AMR-WB(Optional),
G.711WB(Optional)
> Narrowband Codec: G.711(A/u), iLBC, G.729AB,
G.723.1, G.726, AMR-NB(Optional)
> DTMF: In-band, RFC 2833 and SIP info
> Full-duplex hands-free speakerphone
> VAD, CNG, AEC, PLC, AJB, AGC

> 2.8" 320 x 240px color screen with backlight
> 16 bit depth color
> LED for call and message waiting indication
> Dual-color (red/green) illuminated LEDs for line
status information
> Intuitive user interface with icons and soft keys
> Multilingual user interface
> Caller ID with name and number
> Power saving

> SIP v1 (RFC2543), v2 (RFC3261)
> Call server redundancy supported
> NAT Traversal By STUN
> Proxy mode and peer-to-peer SIP link mode
> IP assignment: Static IP and DHCP
> HTTP/HTTPS web server
> Time and date synchronization using SNTP
> SDP (RFC 2327), UDP/TCP
> Mutil-VLAN, DSCP and 802.1p QoS
> SRTP
> TLS
> HTTPS certificate manager
> AES encryption for configuration file
> Digest authentication
> IEEE802.1X, OpenVPN
> IPv4 /IPv6, Dual stack IPv4/IPv6
> RTP/RTCP (RFC 1889, RFC 1890)
> ARP/RARP (RFC 826/903)
> IEEE802.1Q VLAN/802.1p/DSCP
> SNMPv2
> LLDP/CDP/DHCP VLAN

Phone Features

Interface

> 4 SIP accounts
> Call hold, mute, DND, redial, auto answer
> One-touch speed dial, hotline, SIP message
> Call forward, call waiting, call transfer (attended/blind)
> Paging, intercom, 6-way conferencing, dial rule
> Direct IP call without SIP proxy
> Set date time manually or automatically
> IP conflict detection
> Integrated 2.4GHz Wi-Fi
> Up to 9 DSS/BLF keys
> USB port (2.0 compliant) for:
- USB call recording
- 5GHz Wi-Fi through USB Wi-Fi dongle

> 2 x RJ45 Ports (Ethernet 10/100/1000 Base-T)
> Support PoE (IEEE 802.3af), class 2
> 1 x RJ9 Handset port
> 1 x RJ9 Headset port
> 1 x USB 2.0 port
> 1 x Power adapter

Directory

Management

> Phone book (2000 records)
> Black list
> XML/LDAP remote phonebook
> Phonebook search/import/export
> Call history: dialed/received/missed (60 records)

> Configuration: browser/phone/auto-provision
> TFTP/HTTP/HTTPS for Auto Provisioning
> TR069 (TR104/TR106)
> Reset to factory, reboot
> Package tracing export, system log
> DNS/DNS SRV (RFC 1706, RFC 2782)
> NAPTR for SIP URI lookup (RFC 2915)
> Cloud device management: FCMS
> DHCP server and DHCP client

IP-PBX Features

Others

Package Contents

> BLF
> Anonymous call, anonymous call rejection
> Voice mail, call park, call pickup
> Message waiting indicator (MWI)

> Color: Classic grey
> Stand with 3 adjustable angles
> Wall mountable
> AC/DC Adapter
AC Input: 100~240V, 50~60Hz
DC Output: 5V, 1A
> Power consumption(PSU): 1.5-3.5W
> Power consumption(PoE): 1.9-4.5W
> Dimension (W x H x D x T):
190mm x 188.5mm x 173mm x 41.5mm
> Relative humidity: 10%~90% (No Condensing)
> Storage temperature: -25~ 65°C
> Operation temperature: 0~45°C

> Flyingvoice FIP13G IP Phone
- Handset with handset cord
- Ethernet cable
- Stand
- Quick start guide
> Qty/CTN: 10 PCS
> N.W/CTN: 9.62 kg
> G.W/CTN: 10.12 kg
> Giftbox size: 270mm x 190mm x 78mm
> Carton meas: 420mm x 420mm x 290mm

Feature Keys

> 4 Line keys
> 7 features keys: message, headset, hold, mute,
transfer, redial, hands-free speakerphone
> 4 Soft Keys
> 5 Navigate Keys
> Volume+/-
