HD cable tv encoder  H.265 H.264 Encoder
HD cable tv encoder  H.265 H.264 Encoder
HD cable tv encoder  H.265 H.264 Encoder
HD cable tv encoder  H.265 H.264 Encoder
HD cable tv encoder  H.265 H.264 Encoder
HD cable tv encoder  H.265 H.264 Encoder
HD cable tv encoder  H.265 H.264 Encoder
HD cable tv encoder  H.265 H.264 Encoder

HD cable tv encoder H.265 H.264 Encoder

FOB Reference Price: Get Latest Price
≥10 Pieces
US $159
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Output:
IP Output type
Coding format:
H.265 HEVC / H.264 MPEG-4 AVC
Audio Channel:
L+R, L, R
Application:
Digital TV Head-end System
Power supply:
+12V (Compact size), 220V (1RU/3RU)
Operation Tempeture:
0 -50°C (32 -122°F)
Storage temperature:
-40-70°C (-40-158°F)
Power Consumption:
<5W (compact), 80W (1/3RU)

Quick Details

Place of Origin:
China
Product name:
HD cable tv encoder H.265 H.264 Encoder
Input:
Optional 1, 4, 16 channel HDMI signal input
Output:
IP Output type
Coding format:
H.265 HEVC / H.264 MPEG-4 AVC
Audio Channel:
L+R, L, R
Application:
Digital TV Head-end System
Power supply:
+12V (Compact size), 220V (1RU/3RU)
Operation Tempeture:
0 -50°C (32 -122°F)
Storage temperature:
-40-70°C (-40-158°F)
Power Consumption:
<5W (compact), 80W (1/3RU)
PRODUCT DESCRIPTION

INTRODUCE

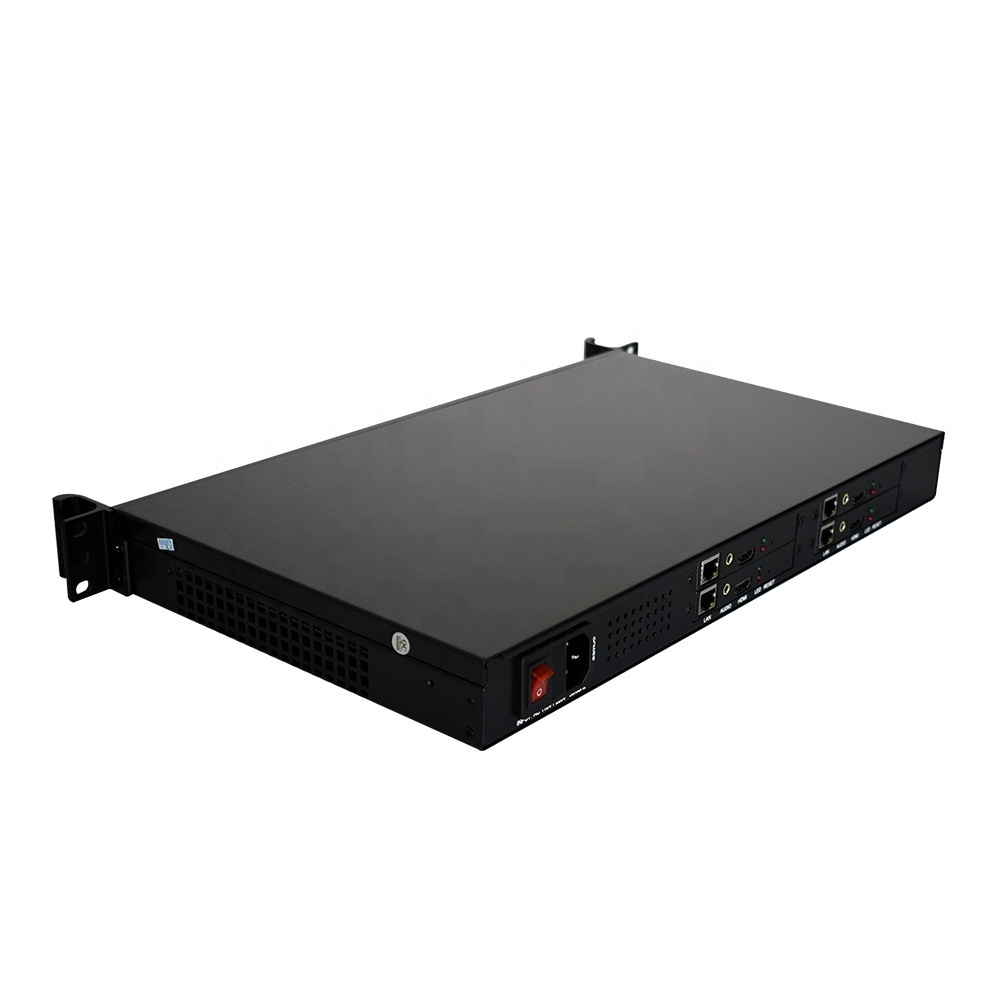

Bowei HD Series is professional HD audio video coding encoder, which supports 1/4/16 channels HD MI inputs with H.264/H.265 video coding, MP3/AAC audio coding. coding bitrate is adjustable, picture quality can be controlled. Support HTTP / RTSP / RTMP/ UDP/ RTP/ HLS (m3u8) protocol transmissiom.

MAIN APPLICATIONS

* IPTV / OTT, Conference, Remote education, Network radio, Live audio
* Backhaul/ Monitoring for Broadcasters
* VOD, MultiscreenHeadend
* Point-to-Point videocontribution
* Streaming Full Motion Video to Desktop, TV and Mobile Devices over bandwidth-limited pipes

FEATURES
* HD MI (HDCP), Blue Ray HD input
* Channel: Single, Quad, Sixteen
* Full HD 1080P60, 1080I60, 1080P50, 1080I50, 720P60, 720P50, 576P, 576I, 480P, 480I Multiple resolution HDMI signal input
* 264, H.265, BP / MP / HP hardware encoding
* 3 streams out, Each HD MI input source simultaneously support up to 1080P
* Support multi protocol output, RTSP, RTP, RTMP, HLS (option) one of HTTP / UDP multicast / UDP unicast protocol out
simultaneously
* Support insert picture LOGO, PNG / BMP format. OSD supported, rolling captions
* MP3, HE-AAC,LC-AAC, MP2 and other audio coding format
* Separate audio output supported
* Adaptive aspect ratio only in H.264 encoding
* HEVC / H.265 compression reduces network bandwidth by up to 50% compared to H.264
* Support RTMP push flow, (classic mode and URL mode), support IP address and domain names, ONVIF protocol
* Web page video preview function, facilitate the implementation of adjustment
* Support RTSP, RTP, HTTP, HLS(option) UDP multicast, UDP unicast and other real time flow and TS flow
* Network interface using 1000M full duplex mode
* HD-to-SD downscale conversion
* Timing reboot function
* Support CBR and VBR mode, 50Kbps ~ 12Mbps
* USB power supply supported, 5V or 3.7V
* Low power design
* Easy to operate by WEB Management

TECHNICAL SPECIFICATIONS
MAIN IMAGES
RELATE PRODUCTS

FAQ

Are you manufacturer?
Yes, we are a professional manufacturer with 15 years of experience, with our own production base and R&D team. Welcome to visit our factory at anytime!

Warranty and return:
Five years warranty. We own the best after-sale service team, if any problem happens, our team will do our best to solve it for you.

Could you accept product customization orders?
Of course ,we accept OEM and ODM order. OEM: LOGO and Brand printing,product packaging and outer packaging requirements. ODM: Provide us with product technical parameters and more details.

How about your delivery date?
Sample is around 1-3 days in stock,no stock is around 3-5 days . Large order is around 7-15 days. Customized order is around 15-30 days.
