Quick Details
-
Model Number:
-
TSC HS270-4P-PTS
-
Dimension(L*W*H):
-
2965*1855*1700
-
Weight:
-
2000 KG
-
Model:
-
HS270-4P-PTS
-
Electric power:
-
2*2.2Kw
-
Frequency 50Hz:
-
24.3
-
Frequency 60Hz:
-
29.2
-
Mesh No:
-
4
-
Mesh Size:
-
4*0.585*1.165
-
Amplit ude 50Hz:
-
5-6mm
-
Amplit ude 60Hz:
-
4-4.8mm
-
Shaking Intensity:
-
6-7.2g
-
Adjustable range:
-
-1.5~+7
Quick Details
-
Application:
-
Drilling fluid Shale shaker
-
Place of Origin:
-
China
-
Brand Name:
-
Beyond or OEM
-
Model Number:
-
TSC HS270-4P-PTS
-
Dimension(L*W*H):
-
2965*1855*1700
-
Weight:
-
2000 KG
-
Model:
-
HS270-4P-PTS
-
Electric power:
-
2*2.2Kw
-
Frequency 50Hz:
-
24.3
-
Frequency 60Hz:
-
29.2
-
Mesh No:
-
4
-
Mesh Size:
-
4*0.585*1.165
-
Amplit ude 50Hz:
-
5-6mm
-
Amplit ude 60Hz:
-
4-4.8mm
-
Shaking Intensity:
-
6-7.2g
-
Adjustable range:
-
-1.5~+7
Product Description

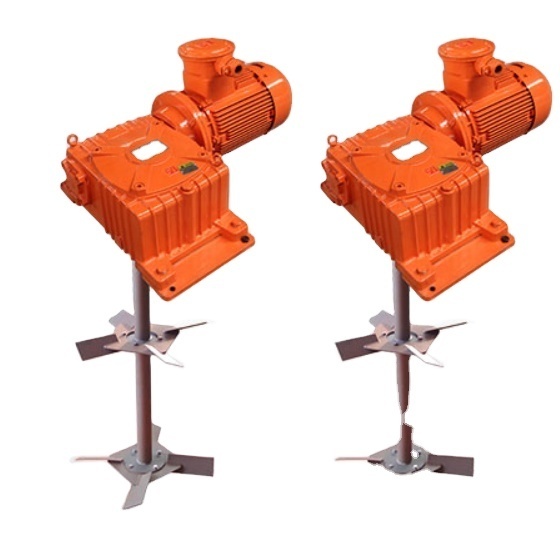

API Standard Solid Control Equipment Mud Mixer Oilfield Drilling Mud Agitator
Armored cable and gland sealing
High-performance polyurethanes hydrocyclone
|
Model
|
HS200-3P-PTS
|
HS270-4P-PTS
|
HS270-4P-PTS(2)
|
HS270-4P-PTS(3)
|
HS270-4P-PTS-VFD
|
|
Motor power
|
2×2.2 kW
|
2×2.2 kW
|
2×2.2 kW
|
2×2.2 kW
|
2×1.3 kW
|
|
Screen area(m2)
|
3X0.585X1.165
|
4×0.585×1.165
|
4X0.585X1.165
|
4X0.585X1.165
|
4X0.585X1.165
|
|
Shaking intensity(g)
|
6-7.2 g
|
6-7.2 g
|
6-7.2 g
|
6-7.2 g
|
5.6-8 g
|
|
Adjustable range
|
-1.5°~+7°
|
-1.5°~+7°
|
-1.5°~+7°
|
-1.5°~+7°
|
-1.5°~+7°
|
|
Overall dimension,mm
|
2450X2010X1700
|
2965X1855X1700
|
2965X4015X1700
|
2965X6265X1700
|
2980X1883X1700
|
|
Weight
|
1900 kg
|
2000kg
|
4000kg
|
6000 kg
|
2050kg
|
