Quick Details
-
Product name:
-
woods lamp skin analyzer
-
Key word:
-
visia skin analyzer
-
Light Source:
-
UVA Light+LED White Light
-
Power supply:
-
Rechargeable Battary
-
Function:
-
Vitiligo,psoriasis test
-
Certificate:
-
CE,ISO,USA 510K
-
Brightness:
-
3 levels adjustable
-
Zoom Time:
-
2 times
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
KERNELMED
-
Model Number:
-
KN-9000B
-
Product name:
-
woods lamp skin analyzer
-
Key word:
-
visia skin analyzer
-
Light Source:
-
UVA Light+LED White Light
-
Power supply:
-
Rechargeable Battary
-
Function:
-
Vitiligo,psoriasis test
-
Certificate:
-
CE,ISO,USA 510K
-
Brightness:
-
3 levels adjustable
-
Zoom Time:
-
2 times

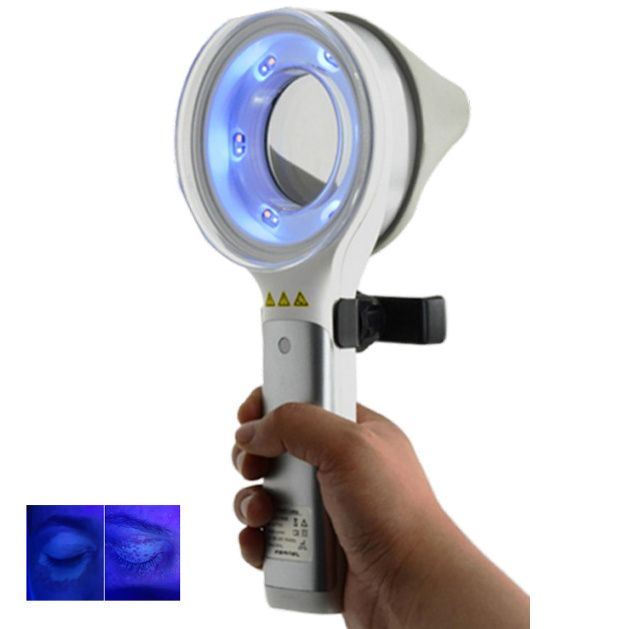

Kernel KN-9000B Skin examination test medical wood's lamp dermoscope skin analyzer Medical Woods Lamp skin analysis
VITILIGO DIAGNOSIS/PITYRIASIS VERSICOLOR/ERYTHRASMA/RINGWORM ON PETS
Product Description
|
Overall size
|
|
|
129mm×286mm×44mm（L×W×H）
|
|
|||
|
Operational mode
|
|
|
Continuous running
|
|
|||
|
Safety classification
|
|
|
II,Built-in Li-ion battery
|
|
|||
|
Rated power
|
|
|
28VA
|
|
|||
|
Visual lens diameter
|
|
|
ø65mm±5mm
|
|
|||
|
Work distance
|
|
|
5cm±1cm
|
|
|||
|
Light source
|
|
|
UVA+LED
|
|
|||
|
UVA wavelength
|
|
|
320nm-400nm（Peak value 365nm±10nm）
|
|
|||
|
UVA irradiation intensity
|
|
|
≥3mW/cm2
|
|
|||
|
Brightness
|
|
|
L,M,H three levels adjustable
|
|
|||
|
Visual lens amplification time
|
|
|
2X±20%
|
|
|||
|
Spot uniformity
|
|
|
≤±10%
|
|
|||
|
Visual spot diameter
|
|
|
5cm
|
|
|||
What conditions are diagnosed using a Wood lamp?
*
Increase in pigmentation
(eg, melasma, postinflammatory pigmentation) to determine whether the pigmentation is epidermal or dermal.Pigmented lesions have a clear border under Wood light because the light is absorbed by increased melanin
*
Loss of pigmentation
(eg, vitiligo, ash-leaf macules in tuberous sclerosis, and hypomelanosis of Ito) to identify affected
areas in light-skinned people.
areas in light-skinned people.
*
Pityriasis versicolor
—a slightly scaly persistent rash on anterior chest and back caused by Malassezia yeasts. When active, the scale emits a yellowish or orange glow
*
Malassezia folliculitis
—hair follicles fluoresce bluish-white
*
Tinea capitis
—areas of scale and baldness due to fungal infection.
* Head lice and scabies
*
Erythrasma
—corynebacteria bacteria cause a pigmented rash in skin folds that fluoresces a coral-pink colour
*
Pseudomonas
in spa pool folliculitis and wound infection fluoresces green
*
Acne
fluoresces orange-red due to cutibacteria in hair follicles
*
Porphyria
causes red-pink fluorescence of the skin (porphyria cutanea tarda), or teeth (erythropoetic porphyria)
*
Porphyrins
used as the photosensitiser in photodynamic therapy
*
Drugs on the skin surface
—tetracyclines and mepacrine fluoresce after oral ingestion
*
The evenness of application
of a salicylic acid-containing chemical peel (this fluoresces green).
Detailed Images
Main features:
Does the Wood lamp cause any harm?
The black light emitted by a Wood lamp is harmless. The lamp does not emit short-wavelength ultraviolet B radiation (290–320 nm),so it does not cause sunburn or otherwise damage healthy skin.
It is possible that a patient with extreme photosensitivity might develop a rash on skin exposed to black light. However, Wood lamp examination is usually very brief and unlikely to cause problems even in very photosensitive patients.
It is prudent to ask the patient to close their eyes when examining the face.
The black light emitted by a Wood lamp is harmless. The lamp does not emit short-wavelength ultraviolet B radiation (290–320 nm),so it does not cause sunburn or otherwise damage healthy skin.
It is possible that a patient with extreme photosensitivity might develop a rash on skin exposed to black light. However, Wood lamp examination is usually very brief and unlikely to cause problems even in very photosensitive patients.
It is prudent to ask the patient to close their eyes when examining the face.
