Quick Details
-
Model Number:
-
J23-10
-
Weight (T):
-
1.5
-
Weight:
-
450KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Voltage:
-
380V
-
CNC or Not:
-
Normal
-
Certification:
-
CE& ISO9001:2008
-
Colour:
-
Optional
-
Norminal capacity:
-
100 KN
-
Slide stroke:
-
50 Times/min
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
SXZG
-
Dimension(L*W*H):
-
800*600*1550MM
-
Model Number:
-
J23-10
-
Weight (T):
-
1.5
-
Weight:
-
450KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Voltage:
-
380V
-
CNC or Not:
-
Normal
-
Certification:
-
CE& ISO9001:2008
-
Colour:
-
Optional
-
Norminal capacity:
-
100 KN
-
Slide stroke:
-
50 Times/min

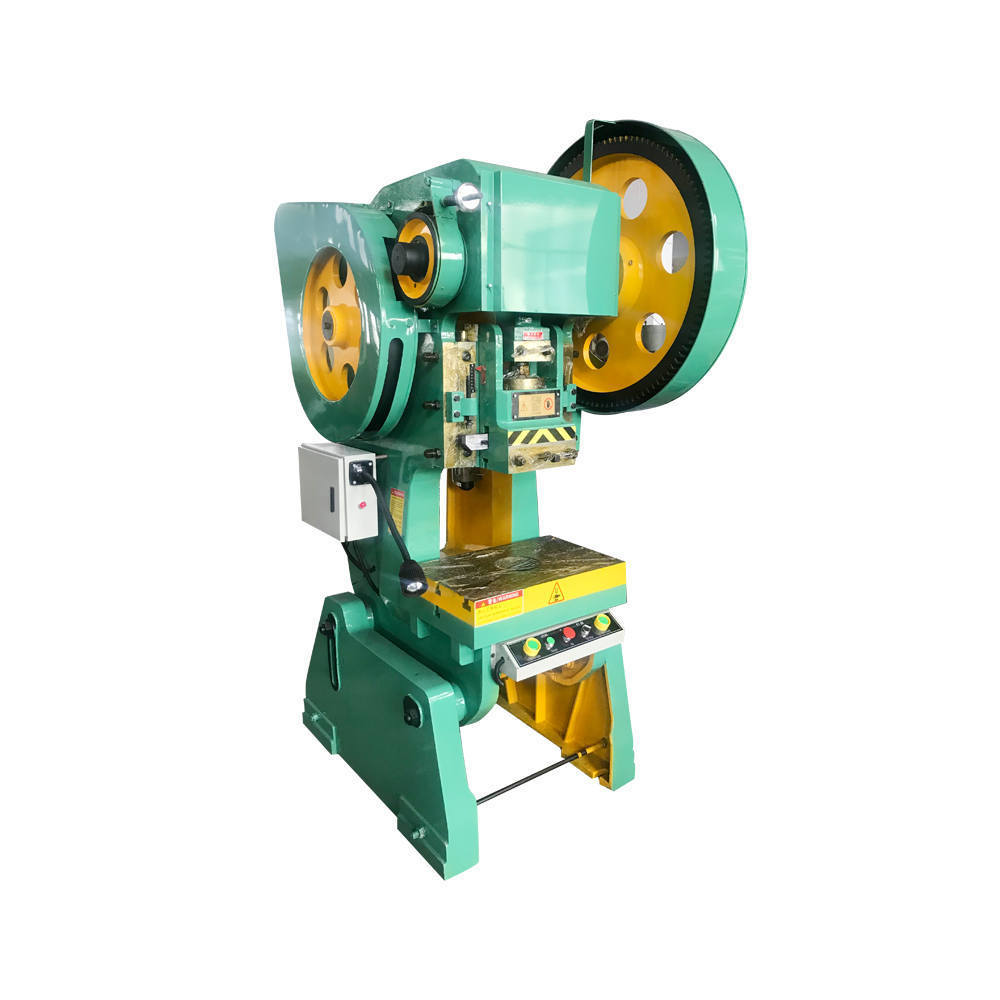

six punch cookware multiple steel electric 30mm aluminum iron hole punching machine
hole punching machine
FEATURES AT A GLANCE
Closed gear-driven, dipped in lube, which drives stably with low noise. Slide with counter balancer, which will eliminate the clearance and improve the stability and precision. Intermittent auto lubrication makes every point get fine and safe lubrication.Thus, long service life is saved. PLC electric control system is safe and reliable Air cushion, photo-electric guard, auto feeder, speed die changing and variable-speed device are optional.
Punching machine for Stamping part
Press machine for Hardware
Power press machine for Furniture
PRODUCT SPECIFICATIONS
|
Item
|
J23-10T
|
J23-16T
|
J23-25T
|
J23-40T
|
J23-63T
|
J23-80T
|
J23-100T
|
J23-125T
|
|
Nominal Pressure
|
100KN
|
160KN
|
250KN
|
400KN
|
630KN
|
800KN
|
1000KN
|
1250KN
|
|
Slide stroke (Times/min)
|
145
|
140
|
70
|
55
|
50
|
45
|
45
|
38
|
|
Slide strokes
|
50mm
|
60mm
|
70mm
|
100mm
|
110mm
|
115mm
|
130mm
|
150mm
|
|
Max closing height
|
150mm
|
170mm
|
200mm
|
300mm
|
330mm
|
380mm
|
380mm
|
500mm
|
|
Die height adjustment
|
40mm
|
40mm
|
40mm
|
70mm
|
80mm
|
80mm
|
100mm
|
100mm
|
|
Distance between slider center and machine
|
130mm
|
160mm
|
180mm
|
215mm
|
230mm
|
250mm
|
280mm
|
390mm
|
|
Workbench diameter(mm)
|
240x360
|
300x480
|
320x525
|
400x650
|
440x700
|
480x750
|
540x840
|
720x1100
|
|
Pole distance
|
180mm
|
220mm
|
240mm
|
300mm
|
300mm
|
300mm
|
380mm
|
550mm
|
|
Shank hole diameter
|
30mm
|
35mm
|
40mm
|
50mm
|
60mm
|
60mm
|
60mm
|
60mm
|
|
Shank hole depth
|
50mm
|
60mm
|
60mm
|
70mm
|
70mm
|
80mm
|
80mm
|
75mm
|
|
Pad thickness
|
50mm
|
50mm
|
50mm
|
75mm
|
80mm
|
95mm
|
100mm
|
130mm
|
|
Body tilting angle
|
30°
|
20°
|
20°
|
20°
|
20°
|
20°
|
20°
|
13°
|
|
Motor power
|
1.5Kw
|
1.5KW
|
2.2KW
|
3KW
|
4KW
|
7.5KW
|
7.5KW
|
11Kw
|
|
Weight
|
450Kg
|
750KG
|
1500KG
|
2500KG
|
4000KG
|
5000KG
|
6000KG
|
7000Kg
|
PRODUCT CONFIGURATION
