80T Automatic Sintering Machine For Making Diamond Segment

80T Automatic Sintering Machine For Making Diamond Segment

FOB Reference Price: Get Latest Price

≥1 Sets

US $13500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Marketing Type:: Hot Product 2023

Core Components:: other

Usage:: diamond segments sintering

Advantage:: automatic operation

Power:: 380V,50/60Hz

Rated working pressure:: 0-20 Ton

Heating power:: 30kw - 80kw

Opening height:: 250(mm)

Workbench acreage:: 200*200(mm)

Temp control range:: 400℃-1200℃

Volume:: 820*1450*2100(mm)

Weight:: 1300kg

Quick Details

Place of Origin:: Fujian, China

Brand Name:: boreway

Weight (KG):: 1300

Marketing Type:: Hot Product 2023

Core Components:: other

Usage:: diamond segments sintering

Advantage:: automatic operation

Power:: 380V,50/60Hz

Rated working pressure:: 0-20 Ton

Heating power:: 30kw - 80kw

Opening height:: 250(mm)

Workbench acreage:: 200*200(mm)

Temp control range:: 400℃-1200℃

Volume:: 820*1450*2100(mm)

Weight:: 1300kg

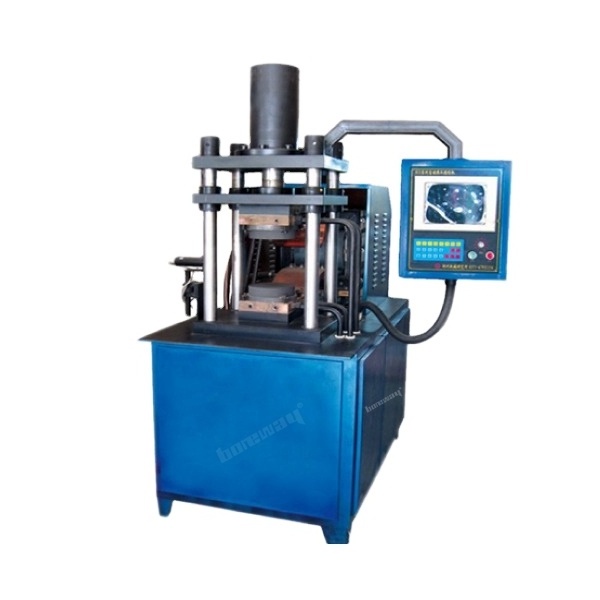

80T Sintering machine for making diamond segment

Product Introduction

80T sintering machine for making diamond segment

This machine is composed of main frame, hydraulic system, electronic unit, thermometric element and cooling system etc. Depending on the master-slave structural double- computer control system, the intelligent equipment can achieve automatically the whole sintering process according to the craft curves tabulated by customer, including controlling temperature and pressure, adjusting power, together with operating conveniently and controlling high accurately

Features of our sintering machine for making diamond segment:

1.Intelligent PID temperature adjustor, with high precision.
2.Non-contact infrared pyrometer with quick response, laser aiming at the goal.
3.Automatically adjusting temperature, pressure and time and Permitting to adjust them manually.
4.Controlling the press force and the temperature in the closed loop way, increasing the press force and temperature according to the slope.
5.Computer with storing possibility of 120/100 programs, including 15 steps in one programs.
6.Automatically diagnosing faults.
7.Color TFT screen displaying process curves. Offering Chinese or English operating interface.
8.Controlling and displaying the size of segment.(Option)
9.Optional thermocouple.

Specification

80T sintering machine for makinig diamond segment

The following is our normal specification of the automatic sintering machine.

Rated working pressure	0-20ton
Heating power	30kw/80kw
Opening height	250(mm)
Workbench acreage	200*200(mm)
Temp control range	400 ° C-1100 ° C
Volume	82014502100(mm)
Weight	1300kg
