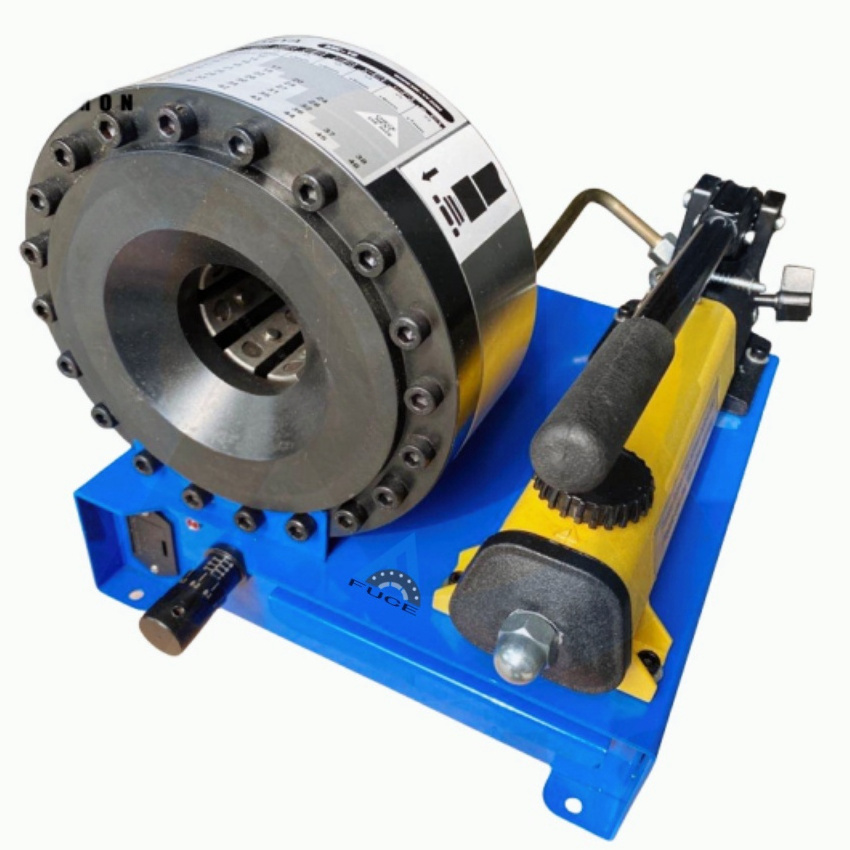

Factory Finn power P16 1/8-1" Portable Manual Hydraulic hose pressing machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $999

≥10 Sets

US $888

≥500 Sets

US $666

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Control System:: Automatic Control

Dies:: standard 7sets

Crimping force:: 180T Hose Pressing Machine

Application:: Crimping Hose Fittings

Certification:: ISO CE

Dies number:: 10.12.16.19.23.27.31mm

Rated pressure:: 31.5 MPa

Quick Details

After-sales Service Provided:: Engineers available to service machinery overseas

Color:: Blue/red/black/white etc.

Hose inner diamter:: 1/8-1"

Control System:: Automatic Control

Dies:: standard 7sets

Crimping force:: 180T Hose Pressing Machine

Application:: Crimping Hose Fittings

Certification:: ISO CE

Dies number:: 10.12.16.19.23.27.31mm

Rated pressure:: 31.5 MPa

Factory Finn powe P16 1/8-1" Portable Manual Hydraulic hose pressing machine

Product Description

P16 Manual portability model
Crimping range	1/8-1'' 4-27mm
Opening&closing	±20mm
Crimping pressure	180T
Net Wight	30kg
Operation way	manual
Dies set	7 sets
Dies number	6 8 10 13 16 19 25 or customize

Model : FC32 hydraulic hose crimping machine
Crimp hose size	1/8-2.5inch or 6-64mm
Max opening	140mm
Crimping pressure	600T
Power	3KW/3.7KW/4KW
Accuracy	0.01mm
Operate ways	Button,foot control,automatic
Wight	340KG
With quick change tool	Yes
Dies set	13sets or more sets
Dies number	14 16 19 22 26 30 34 39 45 51 57 63 69 or Customize

Model :FC 68 hydraulic hose crimping machine
Hose ID	1/8-2inch or 3-51mm
Max opening	116mm
Crimping pressure	560T
Power	3KW or customize
Rate pressure	31.5 MPa
Accuracy	0.01mm
Oil pump out-let quantity	2.5L, 5L or customize 10L
Operate ways	Button,foot control,automatic
Gross Wight	260KG
Dies number	15 19 23 26 31 36 41 47 55 63mm or customize
Spare parts	Wheels, work light, oil seal

Model :FC P20 hydraulic hose crimping machine
Crimping inner diameter	4-51mm(1/8"-2") 4 Wire hose
Crimping outside diameter	2-80mm
Crimping force	560T
Max opening	115mm
Voltage	110V/240V/380V/220V/415V/230V or customize
Motor of power	3kw/4kw
Operation way	foot control, button control, automatic
Light	one work light for free
Dies mouid	10 sets/12sets/more
Dies number	15 19 23 26 31 36 41 47 55 63 or customize
feature	with quick change tool and dies bench

Model : FC91 hydraulic hose crimping machine
Crimping inner diameter range	1/8-2" 3-51mm 1-4 wire
Crimp outer diameter range	2-80mm
Motor power	3KW 4KW 5.5KW or customize
Oil pump	5L / 10L
Max opening	115mm
The max open tolerance	±30mm
Scale accuracy	0.01mm
Operate methods	Automatic, button or foot pedal
Dies molds	regular 10 sets ,could customize for more
Dies number	15mm 19mm 23mm 26mm (length 60mm)
		31mm 36mm 41mm (length 70mm)
		47mm 55mm 63mm (length 80mm)
Packing size	L 780 * W 500 * H 1000mm
Gross weight	260KG

Work for cable/hose/metal/iron

Die mould: different pressing product need different dies mould. Like air suspension ring, air conditioner hose,brake
hose,hydraulic hose,cable, steel pipe,so you can tell us what you need to crimp, then we make dies mould for your products.

Clients Feedback

1.Our factory has been produced more than 20 years.

2.We have export more than 9 years by ourselves. Get good feedback from clients in quality and service.

3.Many traders distributors cooperated with our factory, longest cooperated time is more than 13 years.

4.We supply machines different color as request to make, and parts as request, logo as request, languages as request.

Production process and test

OEM Customized Color and Design

Other products

Packing CE Payment Delivery

FAQ

Q1 : Are you factory ?
A1: Yes,we are factory,and our factory has over 20 years experice in making machine line;
Q2: Do you have the machine in stock?
A2: Yes,we always keep the machine in stock.
Q3: Could you customize the voltage ?
A3: Yes,we can customize the voltage(110V/240V/230V/380V/400V/415V 3/4KW)
Q4: How about the warranty?
A4: Firstly our machines have 3 years warranty;we are confident in crimping operate right way,machine will not have questions; If
machine can't work,please contact us,we will help you settle the questions.
Q5 : Could you customize dies molds?
A5 : Yes,we are experienced on customizing dies, suck as for air conditioning,brake hose etc.. We could customize the dies types
or dies number as request.
Q6: Does the machine operate easily?
A6: Yes, We test and adjust each machine before leaving factory,we pack put and mark instruction,and provide the operated video.
Q7 :Can you produce product with my own brand?
A7. Yes, it''s available.
Q8: Could you customize color for me?
A8: Yes,we can customize the color as request.
