Quick Details
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
600 mm
-
Travel (Y Axis)(mm):
-
600 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
MVIP
-
Voltage:
-
380V/220V
-
Weight (KG):
-
400
-
Application:
-
small mini router metal cnc router
-
Keywords:
-
Router Cnc China
-
Working area:
-
600*600mm
-
Spindle:
-
Water Cooling Spindle
-
Inverter:
-
Fuling Inverter
-
Motor:
-
Stepper
-
Guide rail:
-
HIWIN Linear Guide Rail
-
Table:
-
Aluminum T-slot
-
Weight:
-
400kg
-
After-sales Service Provided:
-
24 Hours Online Service
Quick Details
-
Working Table Size(mm):
-
600*600
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
0 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
600 mm
-
Travel (Y Axis)(mm):
-
600 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
MVIP
-
Voltage:
-
380V/220V
-
Weight (KG):
-
400
-
Application:
-
small mini router metal cnc router
-
Keywords:
-
Router Cnc China
-
Working area:
-
600*600mm
-
Spindle:
-
Water Cooling Spindle
-
Inverter:
-
Fuling Inverter
-
Motor:
-
Stepper
-
Guide rail:
-
HIWIN Linear Guide Rail
-
Table:
-
Aluminum T-slot
-
Weight:
-
400kg
-
After-sales Service Provided:
-
24 Hours Online Service
Product Description

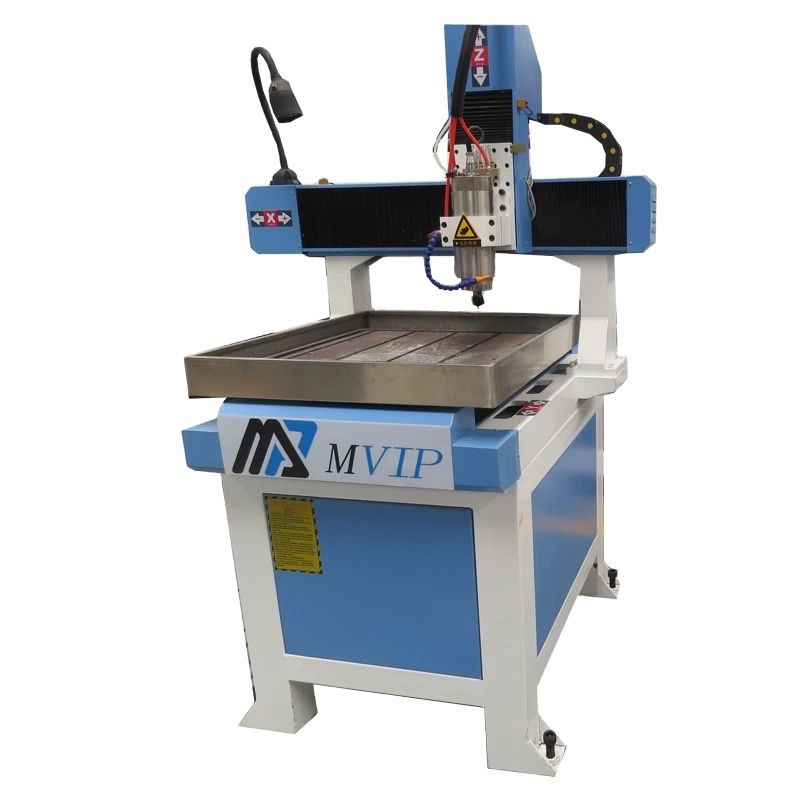

6060 cnc wood router
High accuracy small mini router metal cnc aluminum copper brass metal coin engraving machine
using water-cooled spindle heat dissipation effect is good, low noise. Spindle power is selected according to demand. PVC material T-slot long service life. Stepper motor and drive make the machine run stably. Best or Fuling inverter long service life. Taiwan silver guide rail, running silky smooth, smooth. Suitable for many industries, wood, soft metal, PVC carving and so on.
Machine Detail
Water-cooled spindle
The advantage of water-cooled spindle is that due to the use of circulating heat dissipation, the internal temperature of the spindle is more stable than that of the air-cooled spindle, so that the processing is more stable and accurate, the heat dissipation effect is good, and the noise is low.
Aluminum T-slot
The use of Vacuum table to ensure the processing of the plate stability, compared to the mechanical clamping, plate will not be damaged.
Inverter and drives
Fuling inverter and leadshine driver make the machine run stably and have a long service life.
Motor
Imported servo drive (stepper) and motor, strong, fast processing speed, smooth operation, very low noise.
HIWIN Linear Guide Rail
Imported high precision linear track, stable operation, high precision, stable support, extend the service life of the machine.
Transmission system
Casting body design and three-axis ball screw transmission mode, table movement, more reasonable design, fast processing speed, high precision, simple maintenance, low fault.
Specification
|
Product name
|
6060 cnc wood router
|
|
Number of Axes
|
3
|
|
X,Y,Z working area
|
600*600*100mm
|
|
Tranmission
|
TBI Ball Screw
|
|
Spindle
|
Water cooling spindle
|
|
Voltage
|
220 V/380 V 50hz/60hz
|
|
Lathe bed frame
|
Steel square tubes
|
|
Operating system
|
DSP or March3 control system or NC studio
|
|
Motor and Driver
|
Stepper motor and Leadshine driver
|
|
Inverter
|
Fuling inverter
|
|
Linear guide
|
HIWIN Linear Guide Rail
|
|
Working table
|
T-slot Aluminum Table
|
|
Application
|
Wood Working
|
|
Warranty of core components
|
1 Year
|
|
Color or Logo
|
Customers Needing
|
Samples of the machine
Scope of application
Advertising industry: acrylic, two-color plate, PVC, ABS board, aluminum plate, aluminum-plastic plate carving V-shaped slot cutting, two-color portrait, three-dimensional billboard, all kinds of signs, badges, seat signs, copper, font, font, all kinds of signs, trademarks and so on.
Woodworking industry: Furniture decoration, musical instrument manufacturing, wooden crafts, art models, art font characters, signs, plate plane carving, solid wood furniture, art murals, density board paint-free doors, composite doors, cabinet Windows, bedside tables, Screen relief carving cutting, decoration processing, gift packaging, wave board, electrical countertops, sporting goods, and other wooden industrial products of three-dimensional surface and shape cutting.
Mold industry: can carve all kinds of mold, wood mold, font, aviation wood mold, propeller, building model, sand table model, motor boat model, car foam mold, etc.
Processing materials: density board, solid board, synthetic board, multi-layer board, planing board, cork, native wood, PVC, gypsum, two-color board, aluminum-plastic board, hibiscus board, Plexiglass, acrylic, ABS, Fante stone, sandstone, marble, granite, various artificial stones, light box pieces, light guide plate, horn, various metals, various hard plastics and so on.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
