Quick Details
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, DXP
-
Cooling Mode:
-
water cooling
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BaoYuanTong
-
Dimension(L*W*H):
-
3400*2070*1250mm
-
Weight (KG):
-
850 KG
-
Product name:
-
metal and nonmetal laser cutting machine
-
Model:
-
BJG-1325M
-
Laser Power:
-
150W(Optional)
-
Laser Tube:
-
Sealed CO2 Glass Laser Tube
-
Working Area(mm):
-
1300*2500
-
Support Format:
-
BMP.PLT.DST.DXF.AI
-
Power:
-
3KW
-
Working Voltage:
-
220v/50-60Hz/1P
-
Keywords:
-
Laser cutting and engraving machine
-
Function:
-
Cutting Engraving Non-metal Materials
Quick Details
-
Engraving Area:
-
1300*2500mm
-
Laser Type:
-
CO2
-
Engraving Speed:
-
0-1000(mm/s)
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, DXP
-
Cooling Mode:
-
water cooling
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BaoYuanTong
-
Dimension(L*W*H):
-
3400*2070*1250mm
-
Weight (KG):
-
850 KG
-
Product name:
-
metal and nonmetal laser cutting machine
-
Model:
-
BJG-1325M
-
Laser Power:
-
150W(Optional)
-
Laser Tube:
-
Sealed CO2 Glass Laser Tube
-
Working Area(mm):
-
1300*2500
-
Support Format:
-
BMP.PLT.DST.DXF.AI
-
Power:
-
3KW
-
Working Voltage:
-
220v/50-60Hz/1P
-
Keywords:
-
Laser cutting and engraving machine
-
Function:
-
Cutting Engraving Non-metal Materials
Product Description

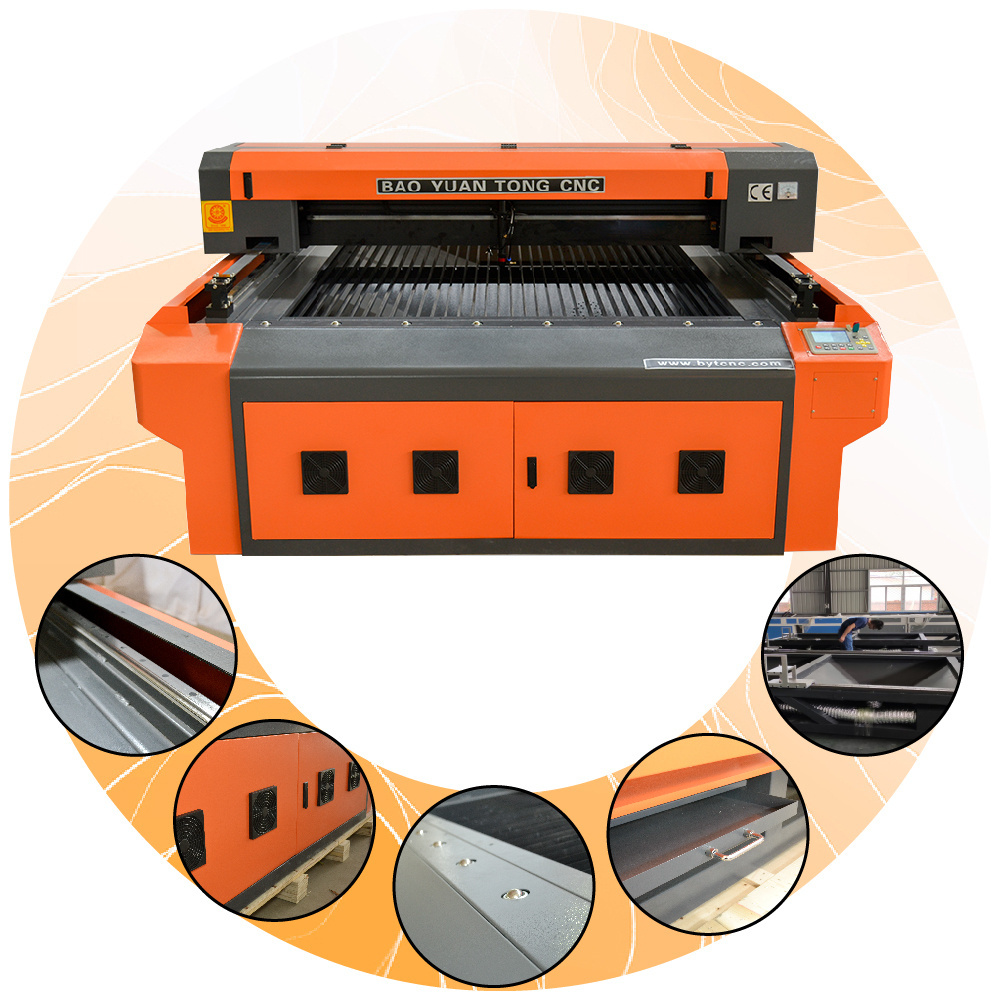

BYTCNC 150W 300W Factory supply metal and nonmetal laser cutting machine for Acrylic Plywood stainless steel cut
According different model application industry and material below :
Mainly used in: crafts, furniture, glass products, wood products, PVC, lighting, advertising, decoration, paper, mark board, stamps and seals, acrylic, bamboo products, hand straps and shoes, clothing , fabrics, etc. By adjusting the laser parameters, the machine can perform a variety of engraving and cutting. This machine has many advantages: smooth cutting, non-contact cutting, high-speed engraving, accurate engraving and good results.
Feature:
1.Whole machine guarantee 2 years .
2.After auxiliary oxygen can cut stainless steel, carbon steel and iron plate. Complete cutting & engraving of non-metal materials such as acrylic, MDF, leather, PVC......and stone, glass and ceramic carving.
3.Aluminum alloy blade working platform, equipped with universal wheels for convenient plate placement
4.High-precision power combination, equipped with stable reducer, to make machining accuracy higher.
5.Automatic metal induction follow-up,laser head auto-focus,automatically adjust the height with the flatness of the plate.
6.Adopts original Taiwan straight linear rail, high accuracy and fast speed, equipped with Omron stroke limit, widening 5M step belt.
7.Using a powerful laser tube and using imported metal molybdenum mirrors and focusing mirrors to reduce machine operating costs.
8.Ruida control, farewell to the tedious storage of parameters, plug and play, offline and online, very easy to use, separate control system, strong anti-interference ability, very stable long-term work
9.Install one-way throttle valve, which is convenient for free cutting when cutting with air or oxygen, saving oxygen.
10.The overall planer bed ensures the accuracy of rail installation. A smoke exhaust system and a high-power centrifugal fan are installed behind the machine,Strong power, good smoke exhaust effect and long life . Drawer-type sample box, no sample is lost after cutting, convenient and easy to take out . The universal wheel at the bottom allows you to easily move the position of the machine, And there are ground feet to increase the machine's balance performance. Towline routing & wear-resistant High strength cables, beautiful and extend the life of the machine.
11.The CNC box is equipped with four cooling fans to ensure the stable operation of the machine for a long time.
12.Install short-circuit relay , the circuit will automatically stop working when a short circuit occurs.
|
Model
|
BJG-1325
|
BJG-1530
|
|
Laser Power
|
100W(Optional)
|
100W(Optional)
|
|
Laser Tube
|
Sealed CO2 Glass Laser Tube
|
Sealed CO2 Glass Laser Tube
|
|
Working Area(mm)
|
1300*2500
|
1500*3000
|
|
Cooling Type
|
Water Cooling
|
Water Cooling
|
|
Cutting Speed
|
0-300(mm/s)
|
0-300(mm/s)
|
|
Engraving Speed
|
0-1000(mm/s)
|
0-1000(mm/s)
|
|
Position Precision
|
±0.01mm
|
±0.01mm
|
|
Resolution
|
≤4000dpi
|
≤4000dpi
|
|
Work Temperature
|
18-30℃
|
18-30℃
|
|
Work Humidity
|
5%-95% (No-cemented Water)
|
5%-95% (No-cemented Water)
|
|
Driver Motor
|
Step Motor
|
Step Motor
|
|
Support Format
|
BMP.PLT.DST.DXF.AI
|
BMP.PLT.DST.DXF.AI
|
|
Max Cutting Thickness
|
Metal 1.5mm ,Acrylic 30mm
|
Metal 1.5mm,Acrylic 30mm
|
|
Power
|
3KW
|
3KW
|
|
Working Voltage
|
220v/50-60Hz/1P
|
220v/50-60Hz/1P
|
|
Net Weight(kgs)
|
850
|
1000
|
|
Overall Size(mm)(L*W*H)
|
3400*2070*1250
|
3900*2270*1250
|
Customer Feedback
Packing & Delivery
1.After the completion of machinery production, the factory inspectors shall check and put the equipment into storage.Before the delivery of the equipment, the after-sales engineer shall conduct secondary inspection and ensure the quality of the machine meets the customer's requirements
2.Clean the whole machinery , protect the parts that need oil, and check the related parts again .
3. Anti-collision package edge: All parts of the machine are covered with some soft materials.
Whole film packaging machine: Avoid all damage that may occur during delivery. Then we will cover the plastic package tightly to ensure that the soft material is covered intact, also avoiding water and rust.
4. Fumigation wooden box:Our wooden box is fumigated, do not need to check the wood, saving the transport time and money.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
