* PET perform heating in stretch blow molding machines
* Printing Ink drying in offset machines
* Screen-printing curing on T-shirts and textiles
* Powder coating curing
* Rubber coated drying
* Sterilizing/mirror coating drying in glass industries
* Paint baking
* Paper coating drying
* All type of lamination
* Preheating prior to embossing
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
VINSON
-
Dimension(L*W*H):
-
245x60mm,122x122 customised
-
Weight:
-
0.5kg
-
Working Temperature Range:
-
30 - 800 ℃
-
Core Components:
-
ceramic heater
-
Color:
-
Black,white, yellow,red
-
Shape:
-
customzied
-
thermocouple:
-
K or J
-
Element Type:
-
Trough / Flat / Hollow
-
Certification:
-
CE, Rohs,ISO9001
Quick Details
-
Type:
-
Infrared Heater
-
Power Source:
-
Electric
-
Voltage:
-
110v,220v,380v customized
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
VINSON
-
Dimension(L*W*H):
-
245x60mm,122x122 customised
-
Weight:
-
0.5kg
-
Working Temperature Range:
-
30 - 800 ℃
-
Core Components:
-
ceramic heater
-
Color:
-
Black,white, yellow,red
-
Shape:
-
customzied
-
thermocouple:
-
K or J
-
Element Type:
-
Trough / Flat / Hollow
-
Certification:
-
CE, Rohs,ISO9001
Product Description

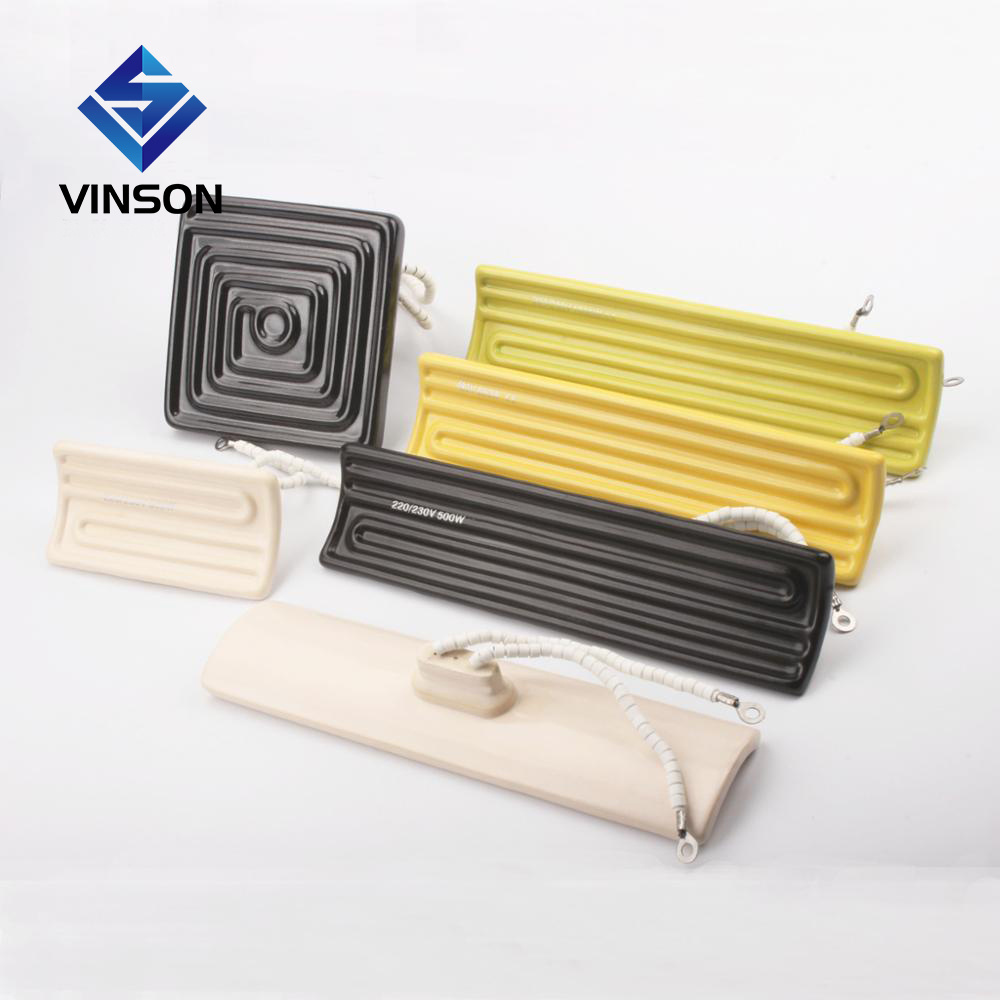

220v 200w 300w 350w 400w 500w 650w Industrial electric far heating element ir ceramic infrared heater plate for Thermoforming
Ceramic infrared heater is made out of ceramics.
1. Radioactive properties: a maximum monochromatic radiation components reached 0.9, the normal total radiation rate is greater than 0.83.
2. Thermal response time: from room normal temperature to a constant value of the radiant panel surface temperatures less than 20 minutes.
3. Degeneration of hot and cold resistance: five alternating hot and cold test of no peeling, no cracking.
|
Radiating temperature inhomogeneity
|
≤ 15%
|
|
Power error
|
The rated working voltage ≤ 5%
|
|
Cold insulation resistance
|
500V megger> 2mΩ
|
|
Thermal insulation resistance
|
500V megger> 0.5mΩ
|
|
Using life
|
> 3000 hours
|
Features
1.Extremely high temperatures, limited largely by the maximum temperature of the emitter
2.Fast response time, on the order of 1–2 seconds Temperature gradients, especially on material webs with high heat input
3.Focused heated area relative to conductive and convective heating methods
4.Non-contact, thereby not disturbing the product as conductive or convective heating methods do
Applications
Table
1) square IR Ceramic heater(hollow type & flat type) , customized
|
Model
|
Size
|
Voltage
|
Wattage
|
Max.Temperature
|
|
VN-101
|
122X122 mm
|
220v/230v
|
150w-1000w
|
800°C
|
|
VN-102
|
60x60 mm
|
220v/230v
|
100w-300w
|
350°C
|
2) rectangle flat IR Ceramic heater(hollow flat & solid flat type ) , customized
|
Model
|
Size
|
Voltage
|
Wattage
|
Max.Temperature
|
|
VN-103
|
245x80 mm
|
220v/230v
|
300w-1000w
|
800°C
|
|
VN-104
|
245x60mm
|
220v/230v
|
300w-1000w
|
800°C
|
|
VN-105
|
122x60mm
|
220v/230v
|
200-600w
|
500°C
|
3) rectangle curved IR Ceramic heater, customized
|
Model
|
Size
|
Voltage
|
Wattage
|
Max.Temperature
|
|
VN-106
|
285x60mm
|
220v/230v
|
150w-1000w
|
800°C
|
|
VN-107
|
245x110mm
|
220v/230v
|
300w-1500w
|
900°C
|
|
VN-108
|
245x60mm
|
220v/230v
|
150w-1000w
|
800°C
|
|
VN-109
|
122x60mm
|
220v/230v
|
100w-300w
|
350°C
|
Note:
1)Color: bright black, black, bright white, white, bright beige, yellow
2) with or W/O thermocouple K or J
3) Packing: 1 piece in one box, carton + wood pallet
4) The OEM and ODM order is available, custom for you
Certifications
Related products
Packing & Delivery
Packaging for Ceramic Heater Element
1) plastic bag + carton for Ceramic Heater Element
2) wooden box for Ceramic Heater Element
Shipping for Ceramic Heater Element
1) shipping by express (sample order) or by sea(bulk order)
2) worldwide shipping service available
