Quick Details
-
Dimensions (L x W x H) (mm):
-
2400*1150*980mm
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TAO MOTOR
-
Engine Type:
-
4 Stroke
-
Engine Displacement:
-
200cc
-
Max Torque:
-
11/6000 N.m/r/min
-
Product Name:
-

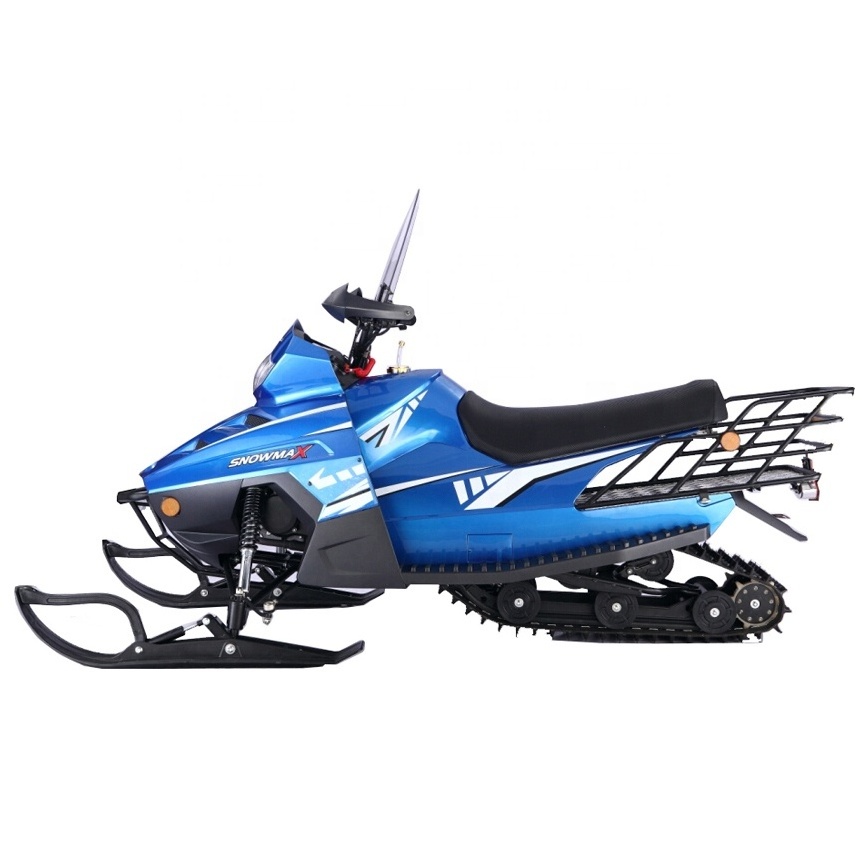

Tao Motor Snowfox 200cc China Snowmobile
-
Transmission:
-
F-N-R
-
Starting system:
-
Electric Start + Pull Start
-
Drive:
-
Chain and rubber track drive
-
Brake:
-
Rear Disc Brake
-
Max speed:
-
65km/h
-
Color:
-
Any Color Available
Quick Details
-
Style:
-
Mountain
-
Engine Capacity:
-
200cc
-
Cylinders:
-
1
-
Dimensions (L x W x H) (mm):
-
2400*1150*980mm
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TAO MOTOR
-
Engine Type:
-
4 Stroke
-
Engine Displacement:
-
200cc
-
Max Torque:
-
11/6000 N.m/r/min
-
Product Name:
-
Tao Motor Snowfox 200cc China Snowmobile
-
Transmission:
-
F-N-R
-
Starting system:
-
Electric Start + Pull Start
-
Drive:
-
Chain and rubber track drive
-
Brake:
-
Rear Disc Brake
-
Max speed:
-
65km/h
-
Color:
-
Any Color Available
| Model | SNOWFOX 200 | |
| Engine type | GY6 200cc, Air cooled, 4-stroke, 1-cylinder | |
| Max power | 7.6/7000 kw/r/min | |
| Max torque | 11/6000 N.m/r/min | |
| Fuel consumption | 6L/100km | |
| Tank capacity | 4L | |
| Transmission: | F-N-R | |
| Supply sustem | Carburetor | |
| Brake control(rear) | Hand control | |
| Way of drive | Chain and rubber track drive | |
| Start type | Electrical and handle start | |
| Max speed | 45-50km/h | |
| Overall size (L*H*W) | 2400*1150*980mm | |
| Seat Height: | 650mm | |
| Battery: | 12V9Ah | |
| Dry weight | 170kg | |
| Load,Max | 150kg | |
| Handle Corner | 40° | |
| Brake system (rear) | Disc brake | |
| Climb ability | 20°-25° | |
| Caterpillar band overall length | 2400mm | |
| Caterpillar band width | 310mm | |
| Press snow deepth | 5-8cm | |
| Press snow length | 880mm | |
| Caterpillar band drive square | 0.35m2 | |
| Skid L*W | 920×135mm | |
| Skid cover square | 0.1m2 | |
| Brake Distance: | 30km/h≤5m | |
| 20GP/ 40HQ capacity | 16/ 54 units | |
