- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
HECHA
-
Fork Length:
-
1070mm/1220mm
-
Fork Width:
-
120mm
-
Overall Dimensions:
-
3195x1420x2350mm
-
Weight (KG):
-
6400 kg
-
Product Name:
-

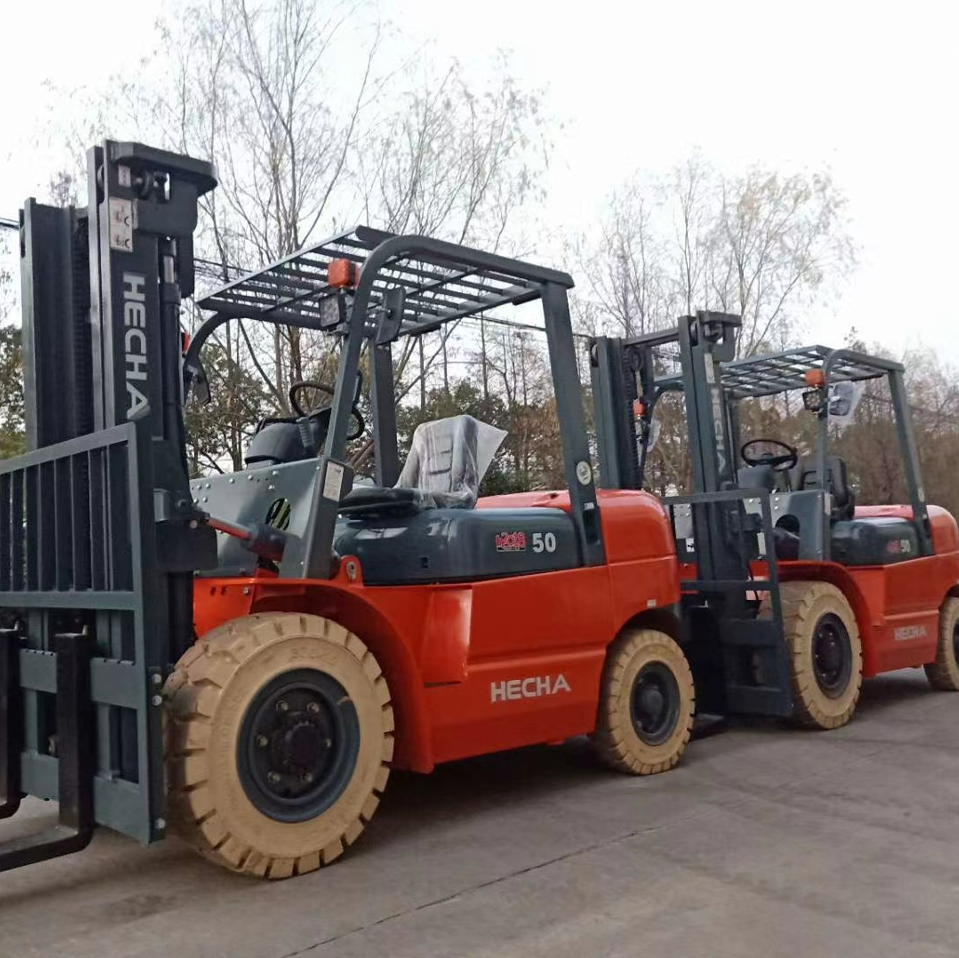

HECHA 5Ton Diesel Forklift with Japanese Engine
-
Engine:
-
XinChai /Isuzu / Mitsubishi Engine
-
Power type:
-
Diesel Power
-
Transmission:
-
Manual Transmission / Automatic Transmission
-
Loading Capacity:
-
5000kg
-
Mast Type:
-
Duplex Mast / Triplex Mast
-
Lifting Height:
-
3M~6.5M
-
Guarantee Terms:
-
12 months or 2000 working hours
-
Weight:
-
6400KGS
-
Optional:
-
Side Shifter / Solid Tyre / Fork Positioner / Attachment / etc
Quick Details
-
Min. Lifting Height:
-
3M
-
Warranty:
-
1 Year
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HECHA
-
Fork Length:
-
1070mm/1220mm
-
Fork Width:
-
120mm
-
Overall Dimensions:
-
3195x1420x2350mm
-
Weight (KG):
-
6400 kg
-
Product Name:
-
HECHA 5Ton Diesel Forklift with Japanese Engine
-
Engine:
-
XinChai /Isuzu / Mitsubishi Engine
-
Power type:
-
Diesel Power
-
Transmission:
-
Manual Transmission / Automatic Transmission
-
Loading Capacity:
-
5000kg
-
Mast Type:
-
Duplex Mast / Triplex Mast
-
Lifting Height:
-
3M~6.5M
-
Guarantee Terms:
-
12 months or 2000 working hours
-
Weight:
-
6400KGS
-
Optional:
-
Side Shifter / Solid Tyre / Fork Positioner / Attachment / etc
Product Description
|
Best Price 5Ton Diesel Forklift with New Isuzu Engine Visible Warning Light for Retail Manufacturing Plant and Farm Use
|
|
|
|
|
|
|
|
|
||||||||
|
Characteristics
|
|
|
|
|
|
|
|
|
||||||||
|
1.1
|
Model Name
|
|
FD25
|
FD30
|
FD35
|
FD40
|
FD45
|
FD50
|
||||||||
|
1.2
|
Power Source
|
|
Diesel
|
Diesel
|
Diesel
|
Diesel
|
Diesel
|
Diesel
|
||||||||
|
1.3
|
Rated Capacity
|
kg
|
2500
|
3000
|
3500
|
4000
|
4500
|
5000
|
||||||||
|
1.4
|
Load Center
|
mm
|
500
|
500
|
500
|
500
|
500
|
500
|
||||||||
|
Dimensions
|
|
|
|
|
|
|
|
|
||||||||
|
2.1
|
Mast Extended Height(with brackrest)
|
mm
|
4060
|
4275
|
4270
|
4250
|
4250
|
4250
|
||||||||
|
2.2
|
Lifting Height
|
mm
|
3000
|
3000
|
3000
|
3000
|
3000
|
3000
|
||||||||
|
2.3
|
Mast Height, Lowered
|
mm
|
2060
|
2080
|
2125
|
2350
|
2350
|
2350
|
||||||||
|
2.4
|
Free Lift Height
|
mm
|
140
|
145
|
150
|
150
|
150
|
150
|
||||||||
|
2.5
|
Brackrest Height cauculated from the fork surface)
|
mm
|
1010
|
1225
|
1220
|
1250
|
1250
|
1250
|
||||||||
|
2.6
|
Distance from the surface of the seat to the overhead guard
|
mm
|
1035
|
1035
|
1035
|
1020
|
1020
|
1020
|
||||||||
|
2.7
|
Overhead Guard Height
|
mm
|
2090
|
2106
|
2106
|
2350
|
2350
|
2350
|
||||||||
|
2.8
|
Overall Length(without forks)
|
mm
|
2550
|
2690
|
2725
|
3195
|
3195
|
3195
|
||||||||
|
2.9
|
Overall Length(with forks)
|
mm
|
3620
|
3760
|
3795
|
4265
|
4265
|
4265
|
||||||||
|
2.10
|
Fork Overhang
|
mm
|
435
|
465
|
465
|
555
|
555
|
555
|
||||||||
|
2.11
|
Wheel Base
|
mm
|
1600
|
1700
|
1700
|
2100
|
2100
|
2100
|
||||||||
|
2.12
|
Real Overhang
|
mm
|
515
|
525
|
560
|
540
|
540
|
584
|
||||||||
|
2.13
|
Min. Ground Clearance(from bottom of mast)
|
mm
|
128
|
145
|
145
|
175
|
175
|
175
|
||||||||
|
2.14
|
Overall Width
|
mm
|
1150
|
1225
|
1225
|
1420
|
1420
|
1420
|
||||||||
|
2.15
|
Lateral Fork Adjustment (Outside of Fork) (max./min.)
|
mm
|
1024/
240
|
1091/250
|
1091/250
|
1340/300
|
1340/300
|
1340/300
|
||||||||
|
2.16
|
Front Tread
|
mm
|
970
|
1000
|
1000
|
1180
|
1180
|
1180
|
||||||||
|
2.17
|
Rear Tread
|
mm
|
970
|
970
|
970
|
1190
|
1190
|
1190
|
||||||||
|
2.18
|
Min. Turing Radius(Outside)
|
mm
|
2240
|
2420
|
2470
|
2600
|
2900
|
2900
|
||||||||
|
2.19
|
Tilt of Mast Forward(deg)/ Backward(deg) a/β
|
°
|
6/12
|
6/12
|
6/12
|
6/12
|
6/12
|
6/12
|
||||||||
|
2.20
|
Fork Size
|
mm
|
1070*
120* 40 |
1070*125*
45 |
1070*125*
50 |
1070*150*
50 |
1070*150*
50 |
1070*150*
50 |
||||||||
|
Specification
|
|
|
|
|
|
|
|
|
||||||||
|
3.1
|
Travel Speed(laden/unladen)
|
km/h
|
17/
19.5 |
18/
19.5 |
18/
19.5 |
22/
22.5 |
22/
22.5 |
22/
22.5 |
||||||||
|
3.2
|
Lifting Speed(laden/unladen)
|
mm/s
|
570/
600 |
450/
500 |
380/
450 |
370/
400 |
370/
400 |
460/
500 |
||||||||
|
3.3
|
Self Weight
|
kg
|
3680
|
4370
|
4750
|
5950
|
6200
|
6400
|
||||||||
|
Tyre
|
|
|
|
|
|
|
|
|
||||||||
|
4.1
|
Number of Drive Wheels
|
|
2X/2
|
2X/2
|
2X/2
|
2X/2
|
2X/2
|
2X/2
|
||||||||
|
4.2
|
Tyres Type
|
|
Pneumatic Tyres
|
|
|
|
|
|
||||||||
The client who comes form Afric purchases different diesel forklifts in our factory！
HECHA Diesel Forklift Optionals:
Attachment
HECHA could support you with the attachments, like: Paper Roll Clamp, Fork Clamp, Push/Pull, etc.
4.5M Free Lifting Triplex Mast
Lifting Height: from 3M~6M.
Mast Type: duplex mast, duplex free lifting mast, triplex free lifting mast.
Engine
Standard Engine: Xinchai/Quanchai/Xichai engine, etc.
Optional Engine: Isuzu/
Mitsubishi, etc.
Company Introduction
Enjoy Easy Lifting
Since 2006, we have been devoting to researching and producing the all-round forklifts and warehouse equipments, to help you Enjoy Easy Lifting and raise your intralogistics to a new level.
Our products including diesel forklifts, electric forklifts, LPG & Gas forklifts, hand pallet trucks, and stackers. The durable performance and high quality, to help you Enjoy Easy Lifting and high productivity at a reasonable price level is always what we’re dedicated to.
Our products including diesel forklifts, electric forklifts, LPG & Gas forklifts, hand pallet trucks, and stackers. The durable performance and high quality, to help you Enjoy Easy Lifting and high productivity at a reasonable price level is always what we’re dedicated to.
Packing&Shipping
Container Loading Information:
3 units of 3.5 tons diesel forklifts could be fit in a 20GP container, 5 units be fit in a 40GP container.
Successful Project
Project in Plywood Factory
Project in Container Yard
Project in Steel Rope Factory
Related Products
FAQ
1. What's the Guarantee Terms of your forklifts?
12 months or 2000 working hours from the date of B/L, which comes first.
2 . What can you buy from us?
1-10T Diesel Forklift, 1-3.5T Gasoline/ LPG Forklift, 1-3.5T Electric Forklift, Warehouse Equipment, Spare Parts for Forklift,
Rough-terrain Forklift.
3. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF.
Accepted Payment Type: T/T, L/C.
12 months or 2000 working hours from the date of B/L, which comes first.
2 . What can you buy from us?
1-10T Diesel Forklift, 1-3.5T Gasoline/ LPG Forklift, 1-3.5T Electric Forklift, Warehouse Equipment, Spare Parts for Forklift,
Rough-terrain Forklift.
3. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF.
Accepted Payment Type: T/T, L/C.
4.W
hat can i get from cooperating with HECHA forklif
t？
a.Unique and professional products，with customized service.
b.Timely production and delivery，time is money.
c.More cheaper than other suppliers.
d.Market protection service.
