Quick Details
-
Model Number:
-
GNPG
-
Rated Voltage:
-
220V/380V, 230V/400V, 240V/415V
-
Rated Current:
-
36A to 1800A
-
Speed:
-
1500rpm or 1800rpm
-
Frequency:
-
50Hz or 60Hz
-
Fuel:
-
natural gas
-
Alternator:
-
Stamford,LeroySomer, Marathon,Engga
-
Control panel:
-
Smartgen, Deepsea,ComAp
-
Cooling System:
-
Water cooled
-
Ignition system:
-
Altronic
-
Mixer:
-
Automatical adjustment
-
Insulation class:
-
H
-
Protection class:
-
IP23
-
QC system:
-
CCIB inspection and 4 hours factory testing
-
Certificates:
-
ISO9001:2008, CE
Quick Details
-
Rated Power:
-
20kw to 1000kw
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Genor Power
-
Model Number:
-
GNPG
-
Rated Voltage:
-
220V/380V, 230V/400V, 240V/415V
-
Rated Current:
-
36A to 1800A
-
Speed:
-
1500rpm or 1800rpm
-
Frequency:
-
50Hz or 60Hz
-
Fuel:
-
natural gas
-
Alternator:
-
Stamford,LeroySomer, Marathon,Engga
-
Control panel:
-
Smartgen, Deepsea,ComAp
-
Cooling System:
-
Water cooled
-
Ignition system:
-
Altronic
-
Mixer:
-
Automatical adjustment
-
Insulation class:
-
H
-
Protection class:
-
IP23
-
QC system:
-
CCIB inspection and 4 hours factory testing
-
Certificates:
-
ISO9001:2008, CE

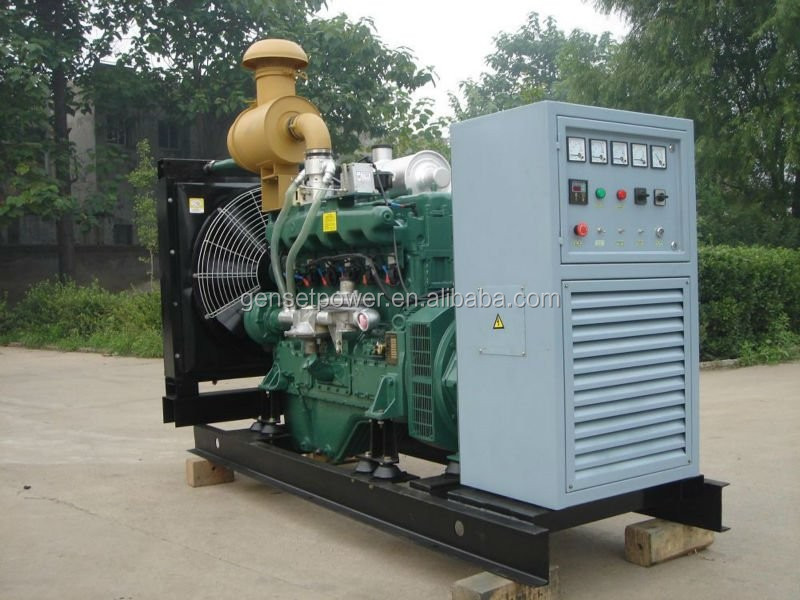

60hz 200kva natural gas fuel cell generator with Leroy Somer
1. Brand new Gas engine .
2. Brand new Stamford AC brushless alternator IP23
3. Smartgen Control Panel .
4. Ignition system,including: ECU, Spark plug, High-voltage electricity wire;Ignition switch,Ignition coil;Wires.
5. Electron ic speed regulator,including controller and actuator.
6. S olenoid valve
| Genset Model | Prime Power | Standby Power | Cylinder No. | Dimension (L×B×H)mm | ||
| KW | KVA | KW | KVA | |||
| GNPG28 | 20 | 25 | 22 | 27.5 | 4 | 2100*730*1575 |
| GNPG38 | 27 | 34 | 30 | 38 | 4 | 1800*880*1260 |
| GNPG41 | 30 | 37.5 | 33 | 41 | 4 | 2100*730*1670 |
| GNPG55 | 40 | 50 | 44 | 55 | 4 | 2100*880*1450 |
| GNPG78 | 56 | 70 | 62.4 | 78 | 4 | 2100*730*1670 |
| GNPG104 | 75 | 94 | 83 | 104 | 6 | 2490*830*1770 |
| GNPG138 | 100 | 125 | 110 | 137.5 | 6 | 2490*830*1770 |
| GNPG165 | 120 | 150 | 132 | 165 | 6 | 2680*860*1730 |
| GNPG200 | 145 | 182 | 160 | 200 | 6 | 2680*860*1730 |
| GNPG220 | 160 | 200 | 176 | 220 | 6 | 2680*860*1730 |
| GNPG275 | 200 | 250 | 220 | 275 | 6 | 2800*1090*1715 |
| GNPG308 | 224 | 280 | 246 | 308 | 6 | 2930*1100*1650 |
| GNPG344 | 250 | 312 | 275 | 344 | 6 | 2930*1100*1650 |
| GNPG413 | 300 | 375 | 330 | 413 | 8 | 3485*1155*1640 |
| GNPG495 | 360 | 450 | 396 | 495 | 8 | 3600*1355*1910 |
| GNPG550 | 400 | 500 | 440 | 550 | 8 | 3600*1355*1910 |
| GNPG605 | 440 | 550 | 484 | 605 | 8 | 3600*1355*1910 |
| GNPG688 | 500 | 625 | 550 | 688 | 8 | 3720*1640*2040 |
| GNPG880 | 640 | 800 | 704 | 880 | 8 | 4660*2090*2320 |
| GNPG1000 | 728 | 910 | 800 | 1000 | 12 | 4660*2090*2320 |
| GNPG1141 | 830 | 1038 | 913 | 1141 | 12 | 4660*2090*2320 |
es high-precision ignition, which enhances genset life span and stability.
Alternator Features:
1. World famous brand AC alternator: Leroy Somer, Stamford, Marathon, ENGGA
2. Brushless, 4 poles, rotation magnet
3. IP21-23(NEMA1) enclose is standard for all industrial alternators
4. H class insulation system
5. AVR self-regulated, voltage regulation rate: ≤±1%
6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts
7. Wide range of flange adaptors and single bearing disc coupling
8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528
9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof
Digital Control panel
Controller Brand: Smartgen, Deepsea,ComAp
Control Panel: English interface,LED screen and touch buttons.
Main Functions:
1- Display loading power, voltage, currenct, frequency, speed, temperature, oil pressure, running time etc.
2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.
3- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown
Standard Scope of Supply
1. Brand new Gas engine .
2. Brand new Stamford AC brushless alternator IP23
3. Smartgen Control Panel .
4. Ignition system,including: ECU, Spark plug, High-voltage electricity wire;Ignition switch,Ignition coil;Wires.
5. Electron ic speed regulator,including controller and actuator.
6. S olenoid valve
7. Flame arrester.
8. Hand valve
9. Zero pressure valves
10. Mixer.
11. Air filter.
12. Silencer
13. Remote radiator
14. Air circuit breaker (For the protecting purpose of overload, over current, etc)
15. Rubber anti-vibration pad between engine, alternator, control panel and base frame
16. Standard accessories, anti-vibration pad, exhaust pipe, maintenance tools kit, filters
17. Maintenance Operating manual, Quality certificate, Gen-sets ex-factory test report
