Quick Details
-
Dimension(L*W*H):
-
5260*1620*2210
-
Capacity:
-
10000L
-
Weight:
-
2950 kg
-
Working Temperature(℃):
-
-20 - 50 ℃
-
Name:
-
Lpg Gas Storage Tanks
-
Application:
-
Lpg Storage
-
Material:
-
Q345R
-
Filling medium:
-
Liquid Petroleum Gas (propane)
-
Working medium:
-
Liquefied Perleum Gas
-
Working pressure:
-
1.77MPa
-
Volume:
-
5000-50000 Liter
Quick Details
-
Max Working Pressure(MPa):
-
1.77 MPa
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
CSC
-
Dimension(L*W*H):
-
5260*1620*2210
-
Capacity:
-
10000L
-
Weight:
-
2950 kg
-
Working Temperature(℃):
-
-20 - 50 ℃
-
Name:
-
Lpg Gas Storage Tanks
-
Application:
-
Lpg Storage
-
Material:
-
Q345R
-
Filling medium:
-
Liquid Petroleum Gas (propane)
-
Working medium:
-
Liquefied Perleum Gas
-
Working pressure:
-
1.77MPa
-
Volume:
-
5000-50000 Liter

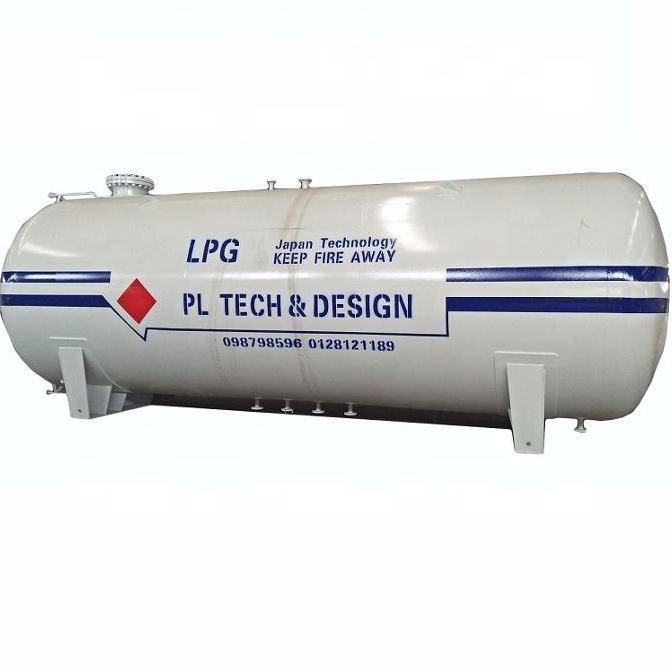

China 10cbm 5000 gallon LPG Storage Tanks LPG Gas Tanker LPG toroidal propane tank fuel tank
1. High quality steel materials for our lpg storage tank
2. One year warranty for our storage tank
3. Advanced technology and complete welding process to ensure high quality
4. Leading manufacturer with more than 20 years
Capacity: 5,000 to 200,000 Liters (For LPG Gas Plant )
Optional Parts: Safety Relief Valve, Rotorgage, Rochester or Magnetic Level Gauge
Pressure & Temperature Gauge, Stop Valve, One Way Valve, etc.
Optional Equipments: LPG Pump, LPG Compressor, LPG Filling Scale.
Technical parameter for 10000L lpg storage tank
1. Design Pressure: 1.77MPa
2.Working Pressure: 1.63MPa
3. Design temperature: -20/ 54℃
4. Materials of LPG Tank: Q345R
5. Thickness of Shell and Endplate:10mm
6. Max. allowance working pressure: 1.82MPa
7. Corrosion Allowance:1mm
|
Accessories List |
|||||
|
Parts No |
Size |
Parts Name |
Model No. |
Quantity |
Unit |
|
a |
DN50 |
Cut-off Valve for Drain Outlet |
J41N-2.5-50 |
1 |
set |
|
b |
DN50 |
Cut-off Valve for Liquid Phase Outlet |
J41N-2.5-50 |
1 |
set |
|
C1-C2 |
DN50 |
Cut-off Valve for Gas Phase Balance Outlet |
J41N-2.5-50 |
2 |
set |
|
d |
DN50 |
Cut-off Valve for Liquid Inlet |
J41N-2.5-50 |
1 |
set |
|
e |
M33*2 |
Thermometer |
WTQ-280 |
1 |
set |
|
f |
|
Rochester Level gauge |
Used on tank dia 2751-3250mm |
1 |
set |
|
g |
M20*1.5 |
Pressure Gauge |
Y-100T |
1 |
set |
|
h |
DN50 |
Cut-off Valve for Safety Valve |
J41N-2.5-50 |
1 |
set |
|
i |
DN50 |
Safety Valve |
A42F-25 |
1 |
set |
|
j |
DN50 |
Cut-off Valve for Air Drain Outlet |
J41N-2.5-50 |
1 |
set |
|
k |
M20×1.5 |
Needle Valve |
J24W-320-DN6 |
1 |
set |
|
Total Quantity
|
12 |
set |
|||
LPG storage tank production flow
