Quick Details
-
Insulation Material:
-
PVC
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
TaiFeng
-
Model Number:
-
TVVB(G)-TV 36*0.75mm+75-5
-
Item:
-
Elevator Parts Elevator Travel Cable CCTV Camera ,TVVB(G)-TV
-
Sheath Metarial:
-
PVC
-
Conductor material:
-
Copper
-
Color:
-
Black,Grey,Orange or your request
-
Rates voltage:
-
300/500V, 450/750V
-
Temperature range:
-
-15℃ ~ +70℃
-
Minimum bending radius:
-
0.3m
-
Certification:
-
CCC,ISO9001,CE,ROHS
Quick Details
-
Application:
-
Elevator
-
Conductor Material:
-
Copper
-
Conductor Type:
-
Stranded
-
Insulation Material:
-
PVC
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
TaiFeng
-
Model Number:
-
TVVB(G)-TV 36*0.75mm+75-5
-
Item:
-
Elevator Parts Elevator Travel Cable CCTV Camera ,TVVB(G)-TV
-
Sheath Metarial:
-
PVC
-
Conductor material:
-
Copper
-
Color:
-
Black,Grey,Orange or your request
-
Rates voltage:
-
300/500V, 450/750V
-
Temperature range:
-
-15℃ ~ +70℃
-
Minimum bending radius:
-
0.3m
-
Certification:
-
CCC,ISO9001,CE,ROHS
|
Item |

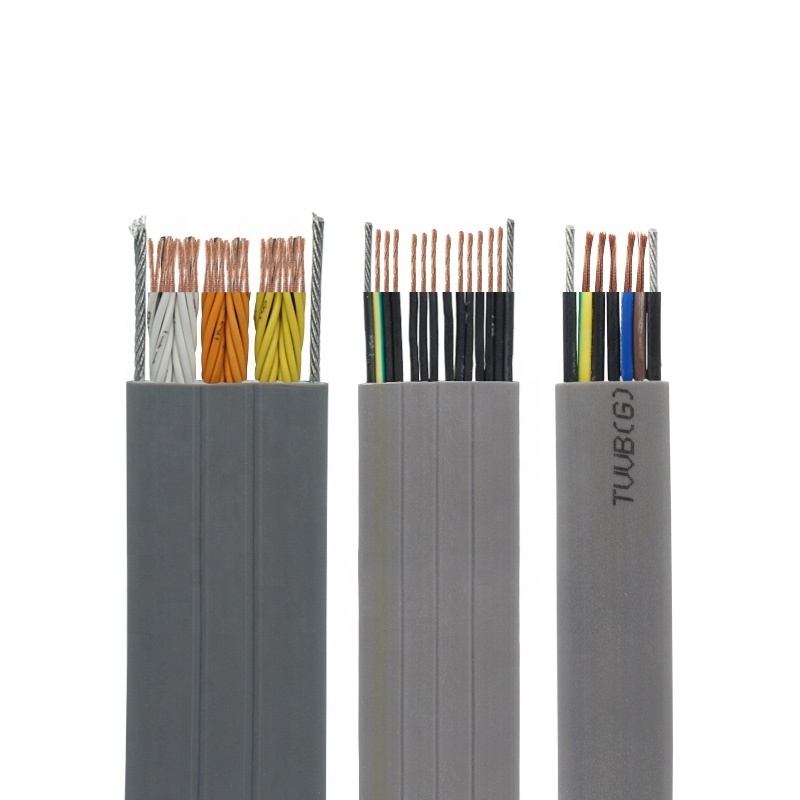

36*0.75mm² +75-5 / RG6 TVVB-TV Flexible Elevator Travelling Flat Cable for CCTV Camera |
|
Insulation Material |
PVC |
|
Sheath Material |
PVC |
|
Color |
Black, Grey, Orange or your request |
|
Conductor Material |
Copper |
|
Rated Voltage |
300/500V,450/750V |
|
MOQ |
100 meters |
|
Temperature Range |
-15 ℃~ +70 ℃ |
|
Minimum Bending Radius |
0.3m<L<0.6m |
|
Application |
Elevator |
|
Certification |
CCC,ISO9001,CE,UL,ROHS |
Applications:
1. The cable use special structure design, long service life, to maximize the operational efficiency of elevator manufacturing enterprises.
2. The cable can provide overall electrical control in suspension longer length case, at the same time under mechanical stress.
Properties: The outer sheath is extensively resistant to oil and cooling liquid.
Technical data:
Working voltage: 300/500V, 450/750V
Temperature range: -15℃~+70℃
Minimum bending radius: 0.3m<L<0.6m
TVVB : F ree suspension length must not exceed 35 meters, and the lift speed must not exceed 1.6m/s. If it more than this, with steel.
TVVB : F ree suspension length must not exceed 80 meters, and the lift speed must not exceed 4m/s. If it more than this, with steel.
