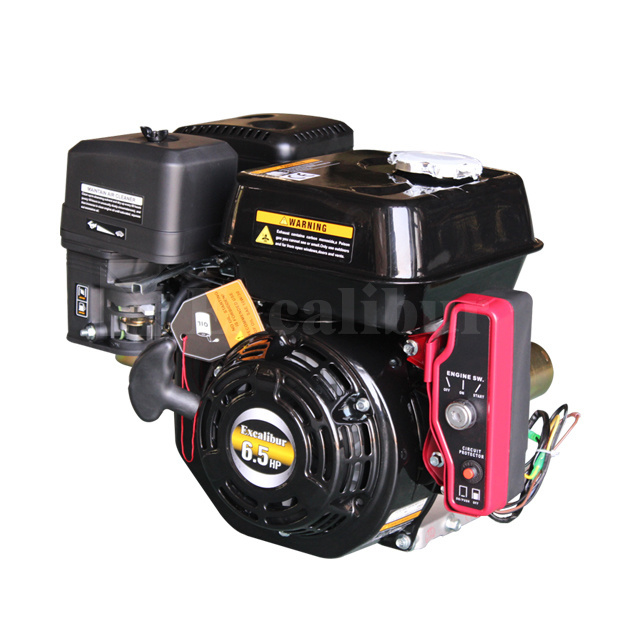

Excalibur gasoline engine is widely used for many fields, which is suitable for most home DIY work, great for both home and professional use. It's usually equipped with light &a
gricultural
construction machines such as Tamping Rammer, Water Pump, Small Road Machinery, Power Sprayer etc..
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Excalibur
-
Dimension(L*W*H):
-
390*340*365mm
-
Weight:
-
15kgs
-
Rated power/speed:
-
6.5HP/3600rpm
-
Product name:
-
gasoline engine
-
Model:
-
S200E
-
Rated Power:
-
6.5hp
-
Color:
-
Customized
-
Engine type:
-
Air-cooled 4-stroke
-
Starting system:
-
Key Starting
-
Brand:
-
Excalibur
-
Bore*Stroke(mm):
-
68*54
-
MOQ:
-
1 set
Quick Details
-
Displacement:
-
196CC, 196CC
-
Emission Standard:
-
EURO 5
-
Power:
-
6.5HP
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Excalibur
-
Dimension(L*W*H):
-
390*340*365mm
-
Weight:
-
15kgs
-
Rated power/speed:
-
6.5HP/3600rpm
-
Product name:
-
gasoline engine
-
Model:
-
S200E
-
Rated Power:
-
6.5hp
-
Color:
-
Customized
-
Engine type:
-
Air-cooled 4-stroke
-
Starting system:
-
Key Starting
-
Brand:
-
Excalibur
-
Bore*Stroke(mm):
-
68*54
-
MOQ:
-
1 set
Application
E
xcalibur Home Using
5.5-16HP Air-cooled Gasoline Engine
Product Overview
Excalibur Home Using 5.5-16HP Air-cooled Gasoline Engine
Optional Device
Product Specifications
|
Model
|
S160
|
S200
|
S210
|
S270
|
S390
|
S420
|
S460
|
||||||
|
Type
|
Air-cooled, 4-stroke, OHV, single cylinder
|
|
|
|
|
|
|
||||||
|
Bore*stroke(mm)
|
68*45
|
68*54
|
70*54
|
77*58
|
88*64
|
90*66
|
92*70
|
||||||
|
Displacement(cc)
|
163
|
196
|
210
|
270
|
389
|
407
|
465
|
||||||
|
Compression ratio
|
8.5:1
|
8.5:1
|
8.5:1
|
8.2:1
|
8:1
|
8:1
|
8:1
|
||||||
|
Max power output(HP/rpm)
|
5.5/3600
|
6.5/3600
|
7.0/3600
|
9/3600
|
13/3600
|
15/3600
|
16/3600
|
||||||
|
Max torque(N.m/)
|
10.8
|
13.2
|
14
|
19.1
|
26.5
|
28
|
28
|
||||||
|
Ignition system
|
Non-contact transistorized, ignition (T.C.I)
|
|
|
|
|
|
|
||||||
|
Starting system
|
Recoil / electric start
|
|
|
|
|
|
|
||||||
|
Air cleaner
|
Semi-dry, Oil bath, dual, double, silent and cyclone type
|
|
|
|
|
|
|
||||||
|
Fuel tank (L)
|
3.6
|
3.6
|
3.6
|
6
|
6.5
|
6.5
|
6.5
|
||||||
|
Oil capacity(L)
|
0.6
|
0.6
|
0.6
|
1.1
|
1.1
|
1.1
|
1.1
|
||||||
|
Fuel consumption(g/kw-hr)
|
<=395
|
|
|
|
<=374
|
|
|
||||||
|
Packing size (mm)
|
390*340*365
|
|
|
490*395*465
|
|
|
|
||||||
|
G.W/NW (kg)
|
16 / 15
|
|
|
28/26
|
35/33
|
36/34
|
38/35
|
||||||
Our Advantages
Excalibur has the ability of daily output for 5000 pcs of gasoline engines.
We are looking for distributors for our gasoline engine worldwide.
Packing & Shipping
Excalibur gasoline engines are all packed in one carton with
cardboard inside.
