Quick Details
-
Application:
-
Hospital
-
Design Style:
-
Traditional
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LINGZ
-
Model Number:
-
YE35-60
-
Rated speed:
-
0.5m/s
-
Traveling height:
-
3m--10m
-
Angle of inclination:
-
35 degree,30 degree
-
Work environment:
-
indoor and outdoor
-
Step width:
-
1000mm,800mm,600mm
-
Transport capacity:
-
9000P/H,6750P/H,4500P/H
-
Control system:
-
Japan mitsubishi microcomputer (PLC) system
-
QA:
-
ISO9001:2008,GB7588-2003
-
Main Parameter:
-
GB/T705.1-7025.3-2003
-
Installation acceptance:
-
GB10060-93
Quick Details
-
Warranty:
-
NONE
-
After-sale Service:
-
Other
-
Project Solution Capability:
-
Others
-
Application:
-
Hospital
-
Design Style:
-
Traditional
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LINGZ
-
Model Number:
-
YE35-60
-
Rated speed:
-
0.5m/s
-
Traveling height:
-
3m--10m
-
Angle of inclination:
-
35 degree,30 degree
-
Work environment:
-
indoor and outdoor
-
Step width:
-
1000mm,800mm,600mm
-
Transport capacity:
-
9000P/H,6750P/H,4500P/H
-
Control system:
-
Japan mitsubishi microcomputer (PLC) system
-
QA:
-
ISO9001:2008,GB7588-2003
-
Main Parameter:
-
GB/T705.1-7025.3-2003
-
Installation acceptance:
-
GB10060-93
Company introduce
- LINGZ elevator series of escalators to run a smooth,low noise,durable,and easy maintenance.Has a compact structure,excellent ladder road,refind lead the way,beautiful appearance,soft modern look of the design.A safe,comfortable,beautiful escalator alrelaxlows you to enjoy every day,relaxed,enjoyable time.
- LINGZ elevator series of escalators exceed your expectations!Widely used in shopping malls,supermarkets,subways,airports and other high traffic place,you have added a beautiful mobile landspace.
The advantageous performances
1.Compact structure
Fish-bellied girder short span of the pedal is mach smaller space,so that the whole structure more compact,the flexibility to adapt to architectural pattern of the building for customers to save valuable space.
2.Fine coziness
Advanced control syetems and reducer,high-quality drive chain and precision installasion process,ensure the products run comfort.
3.Fine safety and reliability
Strict implementation of GB16889-1997<<escalators and moving walkways in the manufacture and installation of safety norm>>such as modern Chinese and European standards,set all the necessary safety devices,microcomputer control technology,non-contact control,safe operation and reliable.
4.Long use life
Use of light weight,high strength metal truss,to ensure product overall rigidity.Automatic lubrication system,which can guarantee product in time for the parts automatic refueling,increased product life.
Escaator Safety Protection
- Hand Strap Inward And Outward Protection
- Comb Foreign Body Safety Protection
- Cascade Drive Chain Loose Fault Protection
- Main Drive Chain Loose Fault Protection
- Host Overheating Protection
- Skirt Safety Protection
- Main Circuit Break Protection
- Prevent Not Operation Reversal Protection
- Over Speed, Speed Limit Protection
- Stair Collapse And Roller Fracture Protection
- Fault Phase Failure Protection
- Emergency Stop Button
- Ground Protection
- Automatic Fault Detection, Display
- Thermal Protection
- Maintenance Socket, Overhaul Box
- Hand Strap Antistatic Wheel
- Stair Anti Static Brush
- Graphical Label Safety Instructions
- Cascade Operation Isolation Plate
- Green Cascade Clearance Lighting (Upper And Lower Ends Level Cascade)
Escalator Specifications
|
Model |
Traveling height (m) |
Inclination angle(°)
|
Step width (mm) |
Speed (m/s) |
|
YE35-60 |
4.5 |
35 |
600 |
0.5 |
|
YE35-80 |
4.5 |
35 |
800 |
0.5 |
|
YE35-100 |
4.5 |
35 |
1000 |
0.5 |
|
YE30-60 |
4.5 |
30 |
600 |
0.5 |
|
YE30-80 |
4.5 |
30 |
800 |
0.5 |
|
YE30-100 |
4.5 |
30 |
1000 |
0.5 |

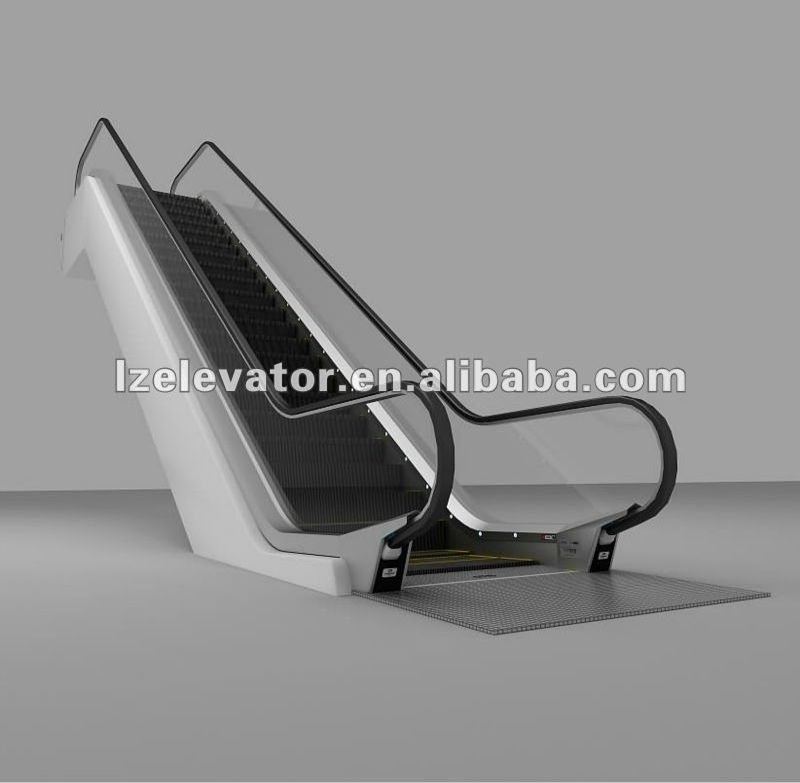

Picture exhibition
