Yongda IGBT 160KW super audio frequency induction brazing/welding/soldering machine

Application of induction brazing/welding/soldering machine

1. metal tube welding:

such as copper tube, steel tube, and aluminum tube’s butt welding, plug welding and welding sets.

2. alloy cutter welding:

such as alloy turning, milling cutter, planer, saw blades, reamer, boring knife.

3. carbide saw blade welding:

diamond saw blade welding, marble saw blade welding,woodworking saw blade welding, cut grass piece of welding, cut aluminum welding,

4. metal welding:

such as: towel rack, soap nets, towel holder, auto-accessories, moto accessories, metal terminals, hardware pieces, electric heating tube parts and fasteners.

5. customized service:

make machine according to customers' actual working situation.

Technical parameters of WZP series induction brazing/welding/soldering machine

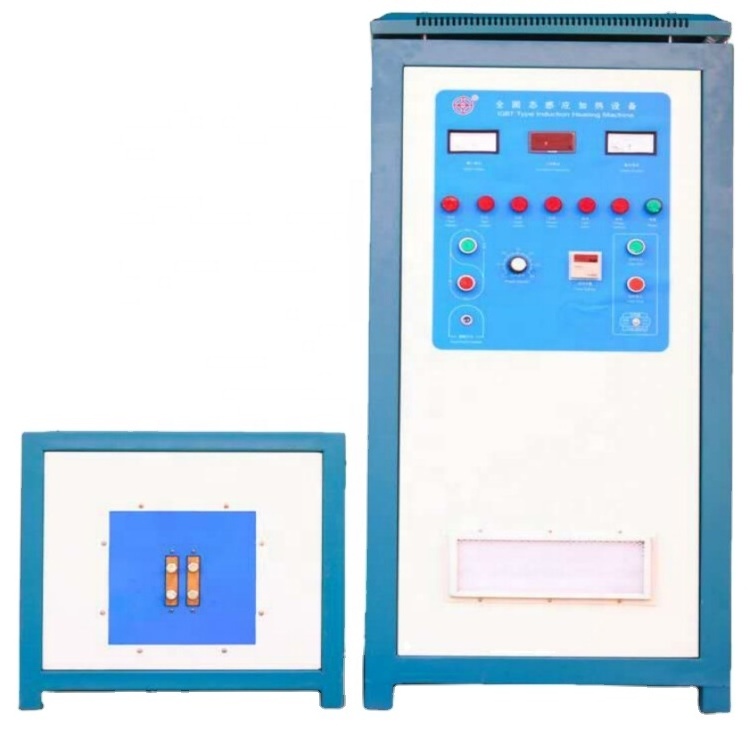

WZP-300 induction brazing/welding/soldering machine (front and rear )

Control panel: multi-functions ,complete protecting itself. The machine has over voltage,over current,temperature is over high,lack of water, lack of phase,etc, alarm lamps indicators. can automaticly control and protection the machine itself.

Induction Brazing & Welding Machine
Power supply: 7kw-800kw
Subsidiary: Filler (silver/copper) &Flux
Application: Saw blades, carbide tip, cooper tube, aluminum parts, rotor

Induction brazing is a process in which two or more materials are joined together with a filler metal by induction heating. Induction brazing is suitable for many metallic materials, with magnetic materials being heated more readily.

There is specific benefit use induction heating for industrial brazing:
1.Better joint quality because selective heating.
2.Reduced oxidation and acid cleaning
3.Faster heating cycles, more
4.Consistent results
5.Suitability for large volume production.

Yongda supply induction brazing machine for saw blades, carbide tip, Cooper tube, Aluminum parts, Rotor etc, Power output from 7kw-800kw, frequency from 1KHz to 400KHz.

We offer induction heating equipment ranging from 7kw to 800kw. Through a combination of standard products and innovative engineering, YONGDA will meet your most demanding production and quality needs. With a wide range of field-proven solutions, our engineering team can provide the experience and expertise to optimize your process.

Advantage of induction brazing/welding/soldering machine
1.Transfers more energy per square meter than an open flame, resulting in faster heating cycles—put simply, you produce more components per hour.
2.Easy to check and adjust the heat, reduce the risk of overheating, which can lead to higher porosity and weaker joints.
3. Reduce the risk of cold brazing as induction generates the heat in the base material.
4. Improve the working environment and safety; No gas needed, no open flame, no additional heating.

Advantages of induction brazing/welding/soldering machine
1. IGBT Invertor technology, high-efficient conversion,LC series resonance
2. Light weight, small size, modular design, friendly user interface with digital on screen display
3. Environmental protection,easy operation, low labor intensity
4. Low energy comsumption, energysaving 15%-30% compared to SCR technology
5.Heating rapidly, heating evenly, no oxide layer, and using timer to make sure producing high quality product with high and good consistency,perfect protecting function of over temperature, over current, over/low voltage temperature, water shortage,phase failure etc. safety and reliability
6. 100 percent success rate of start-up, power factor always over 95%

Packing for induction brazing/welding/soldering machine

Two wooden cases (plywood) Inside,will be filled with plastic foam,for waterproof and shockproof.

Accessories: induction coils,foot switch and installing and operating instructions

Shipping: by sea LCL(less than container load) or by air.

Warranty: one year free replacement spare parts, provide long-terms technical support.
