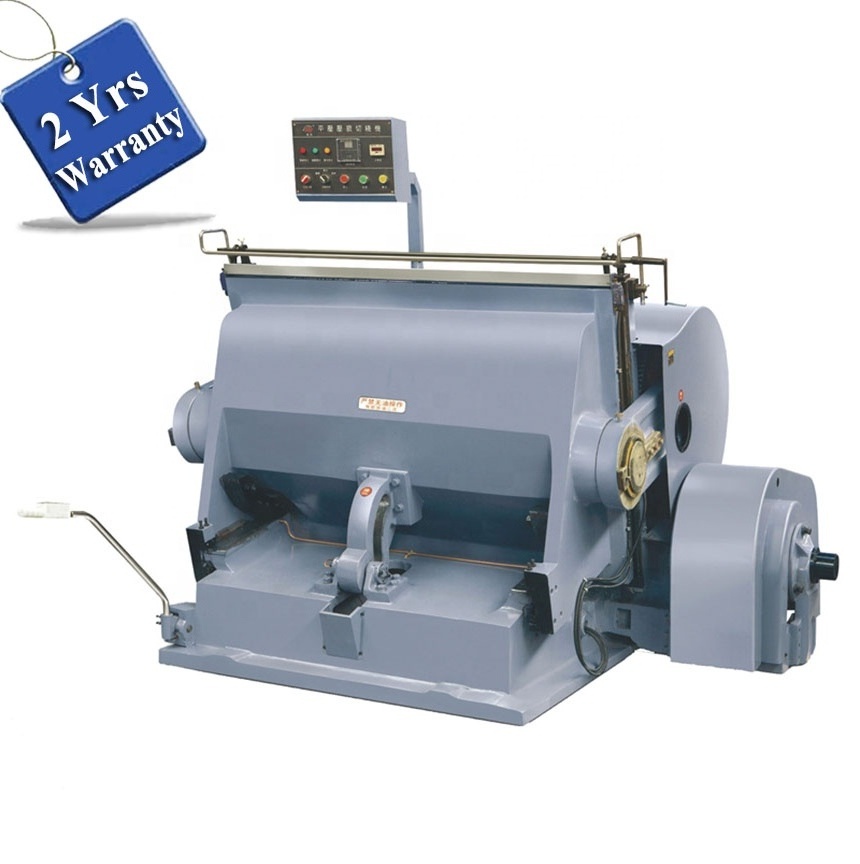

ML750/1300 flat bed plastic pvc pp pe pet sheet card die cutting creasing machine, manual flatbed platen die cutter

ML750/1300 flat bed plastic pvc pp pe pet sheet card die cutting creasing machine, manual flatbed platen die cutter

FOB Reference Price: Get Latest Price

≥1 Sets

US $11000

≥6 Sets

US $3000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: UTECS

Voltage:: 380V

Dimension(L*W*H):: 2600*2101*1950 mm

Weight:: 6001 kg

Paper Bowel Cutting Machine:: Paper Bowel Cutting Machine

Engineers on-site guidance:: Available

After-sales Service Provided:: Online support

Certification:: CE/ISO9001

Quick Details

Type:: Die-cutting Machine

Production Capacity:: 15±2

Max. workable width:: 1300mm

Place of Origin:: Zhejiang, China

Brand Name:: UTECS

Voltage:: 380V

Dimension(L*W*H):: 2600*2101*1950 mm

Weight:: 6001 kg

Paper Bowel Cutting Machine:: Paper Bowel Cutting Machine

Engineers on-site guidance:: Available

After-sales Service Provided:: Online support

Certification:: CE/ISO9001

ML750/1300 flat bed plastic pvc pp pe pet sheet card die cutting creasing machine, manual flatbed platen die cutter

Videos

Video demonstration only for reference

Video 01 : https://www.youtube.com/watch?v=-qMwRB4c7Jw

Video 02 : https://www.youtube.com/watch?v=yjOq1u-Gig8

Product Description

This die cutting & creasing machines are widely used in paper converting and plastic industry. It can cuts and crease a lot of products such as cardboard, corrugated board, plastic and leather etc. The machine features high durability and stability.

Features:

1. Sliding bearings are made of high quality alloy cooper ensuring to get effect of anti-friction and less shakings.

2. Flywheel applies large moment of force and large pressure.

3. One casting structure by using top-grade materials provides high strength.

4. Single plate electromagnetic clutch is sensitive and reliable.

5. Operation altitude is reasonably arranged where the movable platen can be opened to its optimum.

6. Reliable safety system

7, Centralized automatic lubricating system, stainless steel plate and pneumatic plate push up are optional to be equipped.

Parameters:

Model	Inner rule size (mm)	Speed (strokes/min)	Max Rule length (m)	Motor power (Kw)	Overall dimension (mm)	Weight (kg)
ML750	750x520	25±2	<15	2.2	1450x1600x1450	1900
ML930	930x670	23±3	<25	4	1750x1900x1700	3000
ML1040	1040x720	23±3	<28	4	2000x2010x1900	3500
ML1100	1100x800	20±2	<32	4	2020x2010x1900	4500
ML1200	1200x820	20±2	<32	5.5	2020x2020x1950	5000
ML1300	1300x920	15±2	<40	5.5	2600x2100x1950	6000
