Located at Chongqing city--a southwest electromechanical manufacturing center as well as national municipality, Chongqing TOP is a professional leading manufacturer and supplier of oil purifiers and various related testers. Our company consists of departments respectively for technological development, machinery manufacture, instrument manufacture and quality control etc.
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
380V/50HZ/3Phase(Customizable)
-
Dimension(L*W*H):
-
1800*1300*2300mm
-
Weight:
-
350 kg
-
Working Noise:
-
1500dB(A)
-
Trouble-free Working Time:
-
≥ 4000H
-
Continuous Working Time:
-
≥150H
-
Inlet (outlet) caliber:
-
25mm
-
After Warranty Service:
-
Video technical support
-
After-sales Service Provided:
-
Online support
-
Certification:
-
CE
Quick Details
-
Flow:
-
10L/min
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
TOP OIL PURIFIER
-
Voltage:
-
380V/50HZ/3Phase(Customizable)
-
Dimension(L*W*H):
-
1800*1300*2300mm
-
Weight:
-
350 kg
-
Working Noise:
-
1500dB(A)
-
Trouble-free Working Time:
-
≥ 4000H
-
Continuous Working Time:
-
≥150H
-
Inlet (outlet) caliber:
-
25mm
-
After Warranty Service:
-
Video technical support
-
After-sales Service Provided:
-
Online support
-
Certification:
-
CE
Product Description

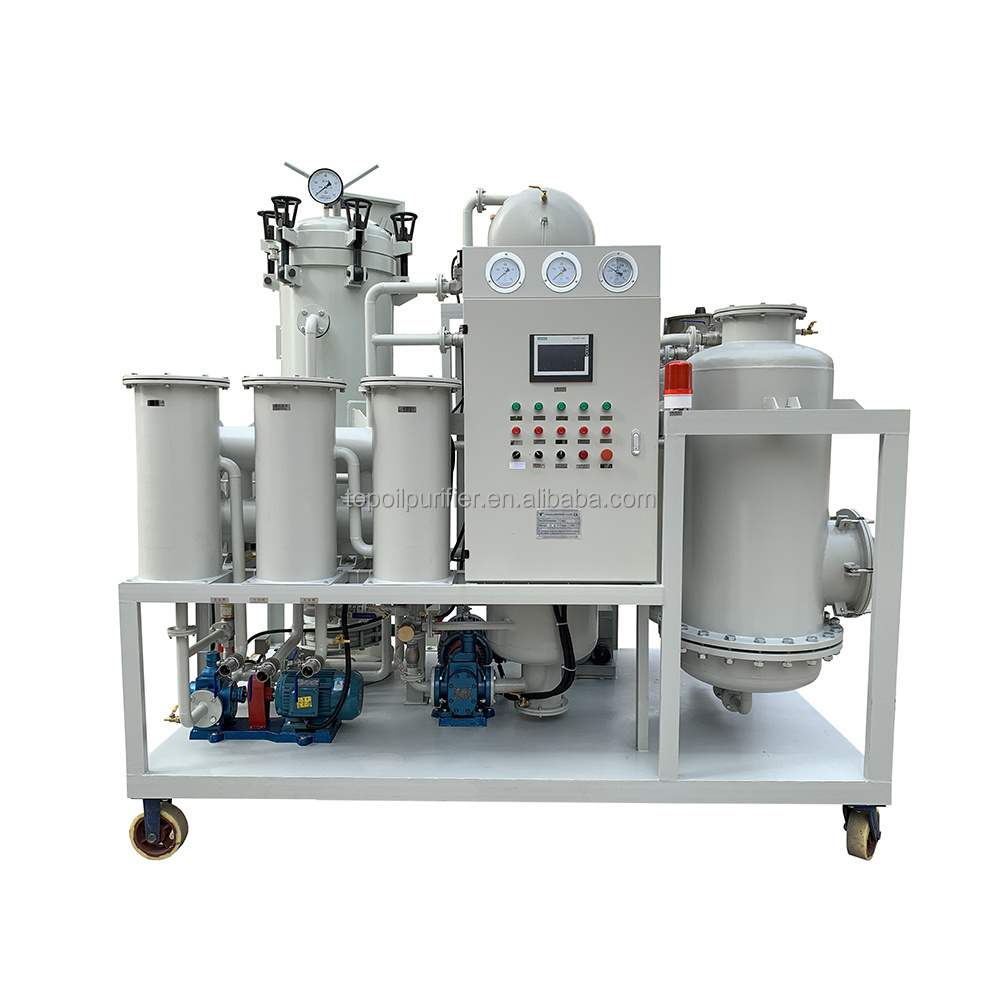

TYR series oil decoloration machine
|
Item
|
|
Unit
|
TYR-1
|
TYR -2
|
TYR -3
|
TYR -5
|
TYR -10
|
TYA -15
|
TYA -20
|
|||||||
|
Flow rate
|
|
L/min
|
1
|
2
|
3
|
5
|
10
|
15
|
20
|
|||||||
|
Power supply
|
|
|
380V/50HZ/3Ph 5 wire(as customer’s requirement)
|
|
|
|
|
|
|
|||||||
|
Working noise
|
|
dB(A)
|
≤65
|
|
|
|
|
|
|
|||||||
|
Working time
|
|
H
|
≥ 4000
|
|
|
|
|
|
|
|||||||
|
Continuous working time
|
|
H
|
≥150
|
|
|
|
|
|
|
|||||||
|
Outlet(inlet) caliber
|
|
mm
|
Ф25
|
Ф25
|
Ф25
|
Ф32
|
Ф42
|
Ф50
|
Ф50
|
|||||||
|
Weight
|
|
kg
|
1500
|
2000
|
2500
|
3000
|
3500
|
4000
|
4500
|
|||||||
|
Size
|
L
|
mm
|
1800
|
1850
|
1900
|
1950
|
2000
|
2200
|
2300
|
|||||||
|
|
W
|
mm
|
1300
|
1350
|
1400
|
1450
|
1500
|
1600
|
1600
|
|||||||
|
|
H
|
mm
|
2300
|
2300
|
2300
|
2400
|
2500
|
2700
|
2700
|
|||||||
|
Index after filtering
|
color
|
PPM
|
≤2
|
|
|
|
|
|
|
|||||||
|
|
|
%
|
|
|
|
|
|
|
|
|||||||
|
|
Impurity size
|
μm
|
≤1(Customerizable)
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|||||||
machine uses our special additive to discolor, which is purely natural and has high efficiency. It can treat hydraulic oil,
machinery oil, coolant oil, cooking oil, coconut oil in oil field, mine, metallurgy, electricity, transportation, manufacturing,
food industry and so on. The treated oil is very clear and transparent. It can also be equipped with waste oil distillation plant
to highly improve the dark color of base oil/diesel after distillation process. Besides, it is frequently inquired by customer to
pre-treat the used cooking oil before further biodiesel.
This machine adopts the latest micro-filtration technology, which is a multi-functional purification system with vacuum system,
three-stage of filters(including primary filter, secondary filter and fine filter) as well as decoloring device. It adopts pure
physical treatment to remove water, gases, impurities and decolor, which will not affect the composition and performance of the
oil. Also, equipped with chain protection device, the machine is easy to operate, safe and reliable.
three-stage of filters(including primary filter, secondary filter and fine filter) as well as decoloring device. It adopts pure
physical treatment to remove water, gases, impurities and decolor, which will not affect the composition and performance of the
oil. Also, equipped with chain protection device, the machine is easy to operate, safe and reliable.
Details Image
Related Products
1.ZY series vacuum transformer oil purifier
2.ZYA series vacuum automatic transformer oil purifier
3.ZYB series vacuum transformer oil regeneration purifier
4.ZYD series double-stage vacuum transformer oil purifier
5.ZYD-I series ouble-stage transformer oil regeneration purifier
6.ZYD-M series trailer-mounted transformer oil purifier
7.TY series vacuum turbine oil purifier
8.TYA series vacuum lubricating oil purifier
9.TYB series coalescence-separation oil purifier
10.TYC series vacuum lubricating oil regeneration purifier
11.CYA series centrifugal oil purifier
12.TPR series waste engine oil recycling system
13.PL series plate and frame oil filter press
14.JL series portable oil purifier
15.BZ series transformer oil regeneration device
Packing & Delivery
|
MOQ
|
1 Set
|
|
Trade Terms
|
EXW, FOB, CIF, CFR
|
|
Payment Terms
|
T/T, L/C
|
|
Port of Loading
|
Any Port of China
|
|
Packing Method
|
Internaional Standard Wooden Case
|
|
Transportation Method
|
By Sea, By Land, By Air, By Express
|
|
Supply Capability
|
100 Sets/Month
|
* The warranty period is 24 months from commissioning acceptance date on. After the warranty period is over we provide lifelong maintenance and technical service.
* We guarantee the maintenance time no more than 3 working days and response time within 1 hour.
* We build instrument service profile for our clients to record the product service and maintenance conditions.
* After instruments start service, we will pay follow-ups to collect the service conditions.
