electric Glass Heating Pipe 61006199 defrost heater electric freezer defrosting

electric Glass Heating Pipe 61006199 defrost heater electric freezer defrosting

FOB Reference Price: Get Latest Price

≥1 Pieces

US $500

≥50 Pieces

US $450

≥100 Pieces

US $400

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model No:: DD-22.3/120

Product Name:: DD DJ DL Water defrost Refrigerator Air Cooler

Fin space:: 4.5mm, 6mm, 9mm or customized

Color:: White/Blue/Silver/stainless steel color

Tube plate:: Copper pipe

Heat exchanger air area:: 8㎡ to 500㎡

Certification:: CE&ISO9001&ISO14001

Application:: Cold Storage Room Freezer Room

Air duct:: High air duct design

Defrosting Way:: water defrosting

Quick Details

Weight (KG):: 170

Place of Origin:: Henan, China

Brand Name:: heleng

Model No:: DD-22.3/120

Product Name:: DD DJ DL Water defrost Refrigerator Air Cooler

Fin space:: 4.5mm, 6mm, 9mm or customized

Color:: White/Blue/Silver/stainless steel color

Tube plate:: Copper pipe

Heat exchanger air area:: 8㎡ to 500㎡

Certification:: CE&ISO9001&ISO14001

Application:: Cold Storage Room Freezer Room

Air duct:: High air duct design

Defrosting Way:: water defrosting

electric Glass Heating Pipe 61006199 defrost heater electric freezer defrosting ng

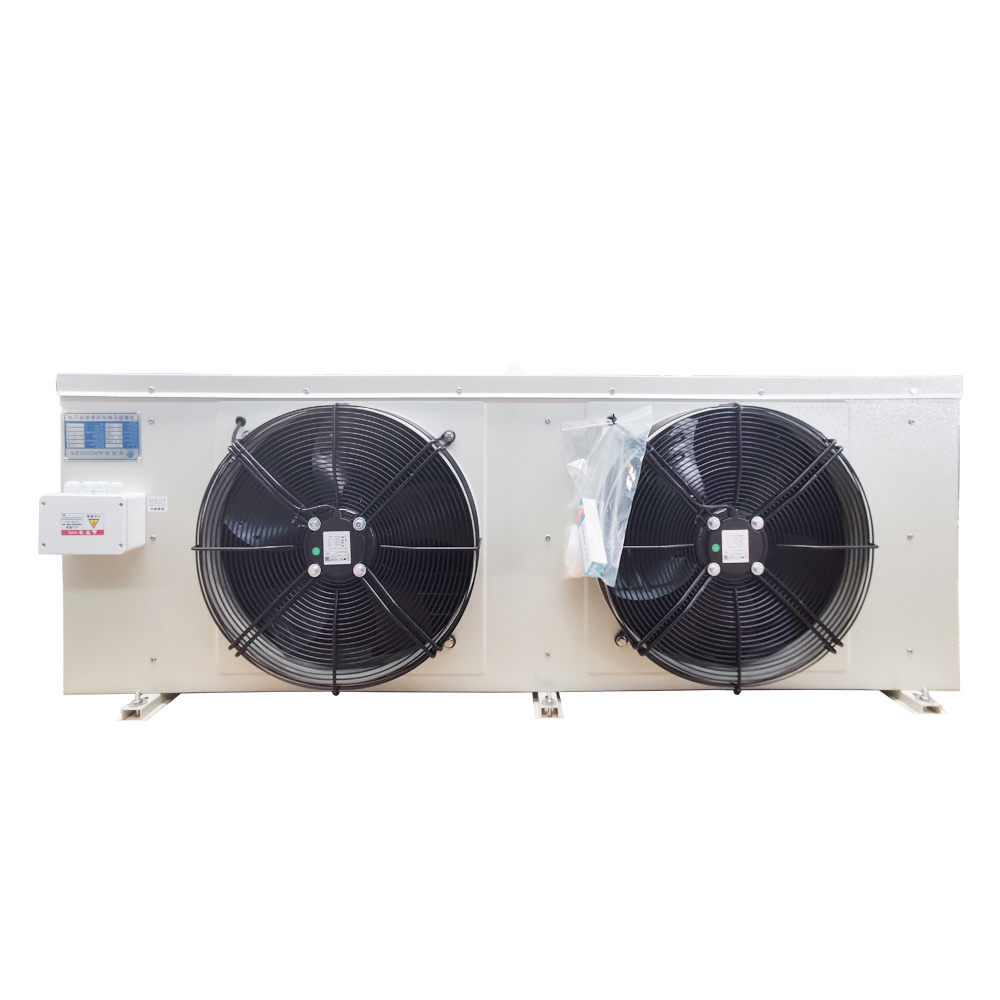

D-series Air-cooler is one kind of storage cooling equipment used in Freon refrigerating,according to applicable temperature,there are 3 series including DL,DD,and DJ, Which can be used at different store temperatures .DL Type air -cooler is mainly applicable to 0℃ fresh-preserved storage. DD type air -cooler is mainly applicable to about -18℃ cold storage;DJ type cooling fan is mainly applicable to quick-freezing storage below -25℃ .

Hot sall recommend

DD series cooling fan

Water defrost DD type cooling fan technical parameters
Model	Reted capacity (W)	External surface (m ² )	Tube capacity (d m ³ )	Fan Motor				Defrosting water
Model	Reted capacity (W)	External surface (m ² )	Tube capacity (d m ³ )	Diameter (Φ-mm)	Air Volume (m ³ /h)	Motor power (W)	Volt (V)	Total volume (T/time)	Water inlet pipe Φ (G)	Water onlet pipe Φ (G)
SDD-7.0/40	7000	40	7.6	400	2X3500	2X190	380/220	0.65	48/1.5"	76/2.5"
SDD-11.2/60	11200	60	10.1	450	2X6500	2X420	380	0.9	48/1.5"	76/2.5"
SDD-14.9/80	14900	80	13.5	500	2X6500	2X420	380	1	48/1.5"	76/2.5"
SDD-18.7/100	18700	100	17.3	500	3X6500	3X420	380	1.3	48/1.5"	76/2.5"
SDD-18.7/100	18700	100	17.3	500	3X6570	3X550	380	1.3	48/1.5"	76/2.5"
SDD-22.3/120	22300	120	19.6	500	3X6500	3X420	380	1.5	60/2"	76/2.5"
SDD-22.3/120	22300	120	19.6	500	3X6570	3X550	380	1.5	60/2"	76/2.5"
SDD-26.2/140	26200	140	22.7	500	4X6500	4X420	380	1.65	60/2"	114/4"
SDD-26.2/140	26200	140	22.7	500	4X6570	4X550	380	1.65	60/2"	114/4"
SDD-29.8/160	29800	160	25.8	500	4X6500	4X420	380	2.1	60/2"	114/4"
SDD-29.8/160	29800	160	25.8	500	4X6570	4X550	380	2.1	60/2"	114/4"
SDD-37.2/200	37200	210	32.2	500	2X10000	2X1500	380	2.3	60/2"	114/4"
SDD-48.4/250	48400	255	41.9	550	3X10000	3X1500	380	2.3	60/2"	114/4"
SDD-57.9/310	57900	300	51.6	600	3X10000	3X1500	380	2.7	60/2"	114/4"

DL series cooling fan

Water defrost DL type cooling fan technical parameters
Model	Reted capacity (W)	External surface (m ² )	Tube capacity (d m³)	Fan Motor				Defrosting water
Model	Reted capacity (W)	External surface (m ² )	Tube capacity (d m³)	Diameter (Φ-mm)	Air Volume (m ³ /h)	Motor power (W)	Volt (V)	Total volume (T/time)	Water inlet pipe Φ (G)	Water onlet pipe Φ (G)
SDL-12.3/55	12300	55	7.6	400	2X3500	2X190	380/220	0.6	48/1.5"	76/2.5"
SDL-16.4/80	16400	80	10.1	450	2X6500	2X420	380	0.75	48/1.5"	76/2.5"
SDL-21.5/105	21500	105	13.5	500	2X6500	2X420	380	0.85	48/1.5"	76/2.5"
SDL-28/125	28000	125	17.3	500	3X6500	3X420	380	1.1	48/1.5"	76/2.5"
SDL-28/125	28000	125	17.3	500	3X6570	3X550	380	1.1	48/1.5"	76/2.5"
SDL-32.8/160	32800	160	19.6	500	3X6500	3X420	380	1.25	60/2"	76/2.5"
SDL-32.8/160	32800	160	19.6	500	3X6570	3X550	380	1.25	60/2"	76/2.5"
SDL-37.9/185	37900	185	22.7	500	4X6500	4X420	380	1.4	60/2"	114/4"
SDL-37.9/185	37900	185	22.7	500	4X6570	4X550	380	1.4	60/2"	114/4"
SDL-42.9/210	42900	210	25.8	500	4X6500	4X420	380	1.65	60/2"	114/4"
SDL-42.9/210	42900	210	25.8	500	4X6570	4X550	380	1.65	60/2"	114/4"
SDL-53.3/260	53300	280	32.2	600	2X10000	2X1500	380	2	60/2"	114/4"
SDL-69.4/330	69400	330	41.9	600	3X10000	3X1500	380	2	2X60/2"	114/4"
SDL-83.6/410	83600	400	51.6	600	3X10000	3X1500	380	2.3	2X60/2"	114/4"

DJ series cooling fan

Water defrost DJ type cooling fan technical parameters
Model	Reted capacity (W)	External surface (m ² )	Tube capacity (d m ³ )	Fan Motor				Defrosting water
Model	Reted capacity (W)	External surface (m ² )	Tube capacity (d m ³ )	Diameter (Φ-mm)	Air Volume (m ³ /h)	Motor power (W)	Volt (V)	Total volume (T/time)	Water inlet pipe Φ (G)	Water onlet pipe Φ (G)
SDJ-5.1/30	5100	30	7.6	400	2X3500	2X190	380/220	0.65	48/1.5"	76/2.5"
SDJ-6.8/40	6800	40	10.1	500	2X6500	2X420	380	0.9	48/1.5"	76/2.5"
SDJ-8.9/55	8900	55	13.5	500	2X6500	2X420	380	1	48/1.5"	76/2.5"
SDJ-11.6/70	11600	70	17.3	500	3X6500	3X420	380	1.3	48/1.5"	76/2.5"
SDJ-11.6/70	11600	70	17.3	500	3X6570	3X550	380	1.3	48/1.5"	76/2.5"
SDJ-14.3/85	14300	85	19.6	500	3X6500	3X420	380	1.5	60/2"	76/2.5"
SDJ-14.3/85	14300	85	19.6	500	3X6570	3X550	380	1.5	60/2"	76/2.5"
SDJ-17.9/100	17900	100	22.7	500	4X6500	4X420	380	1.65	60/2"	114/4"
SDJ-17.9/100	17900	100	22.7	500	4X6570	4X550	380	1.65	60/2"	114/4"
SDJ-19.6/115	19600	115	25.8	500	4X6500	4X420	380	2.1	60/2"	114/4"
SDJ-19.6/115	19600	115	25.8	500	4X6570	4X550	380	2.1	60/2"	114/4"
SDJ-23.9/140	23900	140	32.2	600	2X10000	2X1500	380	2.3	60/2"	114/4"
SDJ-28.9/170	28900	170	41.9	600	3X10000	3X1500	380	2.3	60/2"	114/4"
SDJ-35.8/210	35800	210	51.6	600	3X10000	3X1500	380	2.7	60/2"	114/4"
