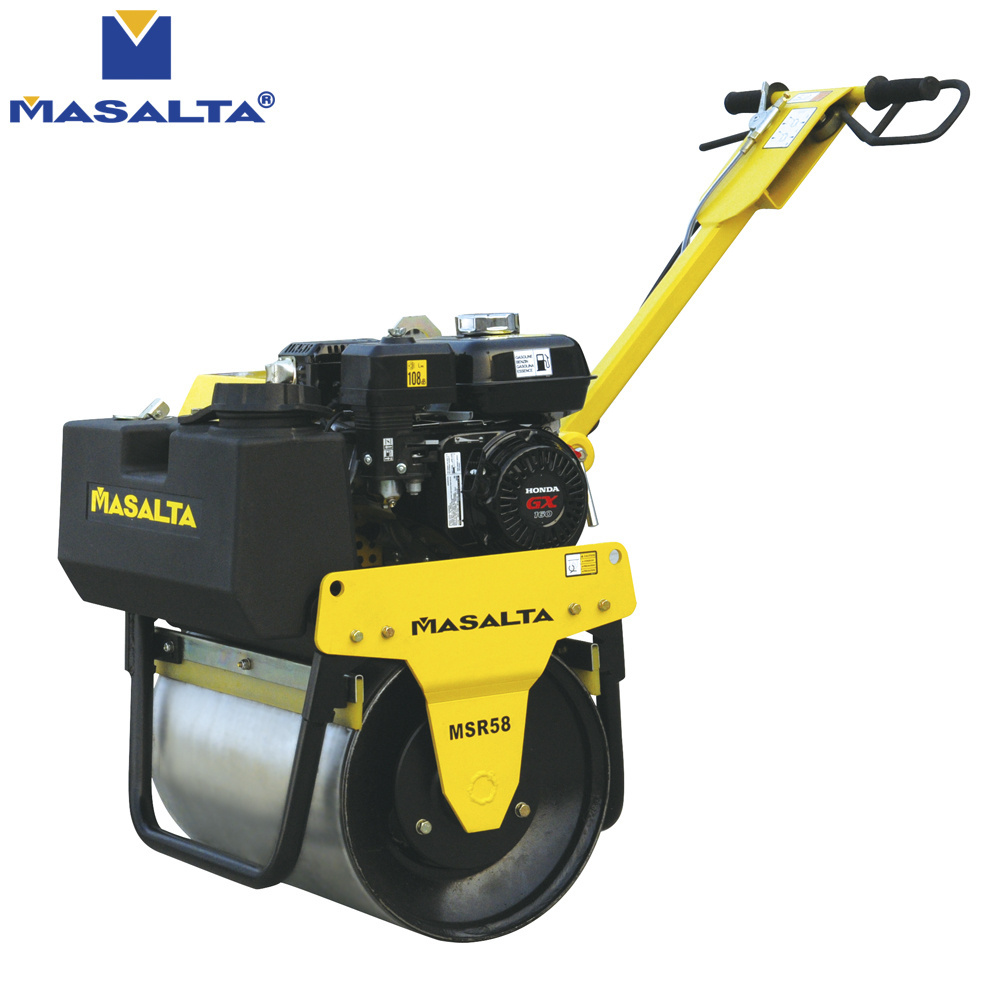

Masalta Single Drum Vibratory Roller MSR58
Masalta single drum roller are lightweight and maneuverable for compaction of granular and asphalt applications, ideally suited to smaller repair and maintenance jobs such as footpath bridges, patching, landscaping applications.
Features
- Deadman control and reversing protection for maximum operator safety.
- Easy reach controls for operator comfort.
- Ergonomically design height-adjustable handle for operator comfort and simplified transport.
- Self-cleaning scrapers prevent the buildup of dirt.
- Beveled drum edge eliminates markings on surface.
- Side and curb clearance allow for a closest approach to pavement wall. curb and other obstacle.
- Compact design for easy handling in confined areas.
- Thick drum shells for longer drum life.
- Large corrosion-free water tank feature in easily removable for filling or cleaning.
- Hydraulic system provides infinitely variable working speed, eliminating the need for regular periodic adjustments and changes compared to chain driven rollers require.
- Built-in cooling fan is designed for longer life and continuous operation.
| Model | MSR58H | MSR58R |
| Engine Type | Honda GX160 | Robin EX17 |
| Power kw(hp) | 3.6(4.9) | 2.9(4.0) |
| Weight kg(lb) | 185(408) | |
| Drum Diameter mm(in) | 580× Φ 400(23× Φ 16) | |
| Static Linear Force N/cm | 28.5 | |
| Centrifugal Force kN | 10 | |
| Travel Speed km/h(ml/h) | 0-1.5(0-0.93) | |
| Frequency vpm(Hz) | 4560(76) | |
| Water tank Capacity L(Gal) | 15(3.3) | |
Technology Parameter
| Model | Engine Type | Power kw(hp) | Weight kg(lb) | Drum diameter mm(in) | Water tank capacity(L) |
| MSR58 | Honda GX160, Robin EX17 | 3.6(4.9), 2.9(4.0) | 185(408) | 580×Φ400(23×Φ16) | 15 |
| MDR65 | Lombardini 15LD440, Hatz 1B40 | 7.5(10.2), 7.3(9.9) | 718(1583), 721(1590) | 650×Φ404(25.6×Φ16) | 65 |
| MDRS65 | Lombardini 15LD350, HONDA GX390, KIPOR KM186F, KUBOTA E75-NB3 | 5.5(7.5), 8.7(11.8), 6.3(8.6), 4.6(6.3) | 640(1411), 625(1378), 630(1389), 650(1433) | 650×Φ402(25.6×Φ16) | 40 |
| MDR90 | HONDA GX690, KUBOTA D902-E3B | 15.5(21.1), 18.5(25.2) | 1529/3371, 1575/3472 | 900xΦ560(35.4xΦ22) | 100 |
