Quick Details
-
operating wavelength:
-
1310/1490/1550
-
Ferrule Polish:
-
APC UPC PC
-
Fiber Type:
-
SM
-
Application:
-
FTTX,CATV Metro,LAN
-
Dimension:
-
6x0.7x0.4cm
-
Connector Type:
-
SC,LC,FC
-
Form of sale:
-
Neutral/OEM/ODM
-
Certificate:
-
RoHS,SGS,CE
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Product name:
-
4 way fiber optical coupler
-
Length:
-
1m/1.5m
-
operating wavelength:
-
1310/1490/1550
-
Ferrule Polish:
-
APC UPC PC
-
Fiber Type:
-
SM
-
Application:
-
FTTX,CATV Metro,LAN
-
Dimension:
-
6x0.7x0.4cm
-
Connector Type:
-
SC,LC,FC
-
Form of sale:
-
Neutral/OEM/ODM
-
Certificate:
-
RoHS,SGS,CE

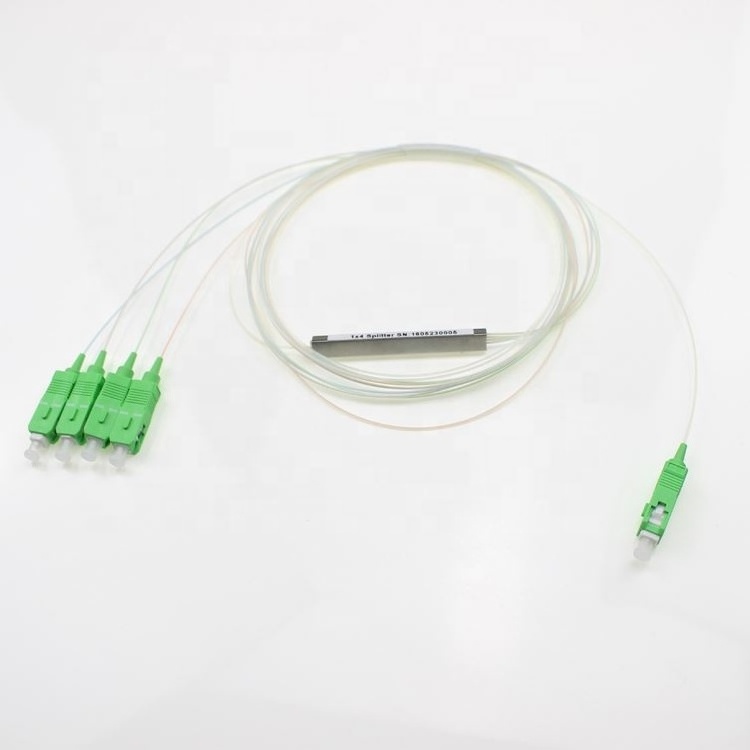

1 x Bare SC/APC Steel Tube Type 1x4 Single Mode Optic plc splitter 1:4 4 way fiber optical coupler
| Product Name | 1 x Bare SC/APC Steel Tube Type 1x4 Single Mode Optic plc splitter 1:4 4 way fiber optical coupler |
| Modle Number | 1*4 PLC Mini splitter |
| Length | 1m/1.5m |
| Operating Wavelength | 1310/1490/1550 |
| Ferrule Polish | APC UPC PC |
| Fiber Type | SM |
| Application | FTTX,CATV Metro,LAN |
| Dimension | 6x0.7x0.4cm |
| Connector Type | SC,LC,FC |
| Form of sale | Neutral/OEM/ODM |
| Use | Optical connect,Splitting |
| Custom Design | welcom |
| Sample Lead Time | 1-3days |
| Sample price | As per sample details |
| Certificate | RoHS,SGS,CE |
| Advantage | Best price,best service |
| Parameter | Unit | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 1x128 |
| Wavelength | nm | 1260-1650 | ||||||
| Insertion Loss | dB | ≤4.2 | ≤7.4 | ≤10.7 | ≤13.9 | ≤17.2 | ≤21.5 | ≤24 |
| PDL | dB | ≤0.25 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.5 |
| Uniformity | dB | ≤0.6 | ≤0.8 | ≤0.8 | ≤1.0 | ≤1.5 | ≤2.0 | ≤2.0 |
| Return Loss | dB | ≥50 | ||||||
| Directivity | dB | ≥55 | ||||||
| Temperature Range | °C | (-40~+75) | ||||||
| Storage Temperature | °C | (-40~+85) | ||||||
| NOTE:The above parameter is for splitter with connector. | ||||||||
• Low insertion loss,high return loss
• Excellent Temperature stability
• Good repeatability and exchangeability
• Excellent mechanical endurance
• Strict curing time and temperature control
• Strict testing standards and methods for quality
• Environment protection (ROHS Compliance)
• The fiber optical patch cord can be customized according to customers'specific
requirements (Customized Connector/Length/package...)
• 100% NEW raw material and well quality control ensure the best life time.
