Quick Details
-
Interface Standard:
-
CHAdeMO,CCS,Tesla,GBT,Combo
-
Output Power:
-
360KW
-
Input Voltage:
-
380Vac± 15%, 480Vac±15%
-
Product name:
-
DC Fast EV Charging Station
-
Application:
-
Charging Electric Car Charging
-
Output voltage:
-
50-500vdc(chademo),150-750vdc(ccs),48-1000vdc(gbt/tesla)
-
Cable length:
-
5 Meters
-
Protection level:
-
IP 54
-
Weight:
-
580kg
-
Max Output Power:
-
360kw
-
Input Frequency:
-
50Hz/60Hz
-
Charging Standards:
-
EN 61851-1,JEVSG105
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
CHR-360R
-
Brand Name:
-
electway
-
Interface Standard:
-
CHAdeMO,CCS,Tesla,GBT,Combo
-
Output Power:
-
360KW
-
Input Voltage:
-
380Vac± 15%, 480Vac±15%
-
Product name:
-
DC Fast EV Charging Station
-
Application:
-
Charging Electric Car Charging
-
Output voltage:
-
50-500vdc(chademo),150-750vdc(ccs),48-1000vdc(gbt/tesla)
-
Cable length:
-
5 Meters
-
Protection level:
-
IP 54
-
Weight:
-
580kg
-
Max Output Power:
-
360kw
-
Input Frequency:
-
50Hz/60Hz
-
Charging Standards:
-
EN 61851-1,JEVSG105
Products Description

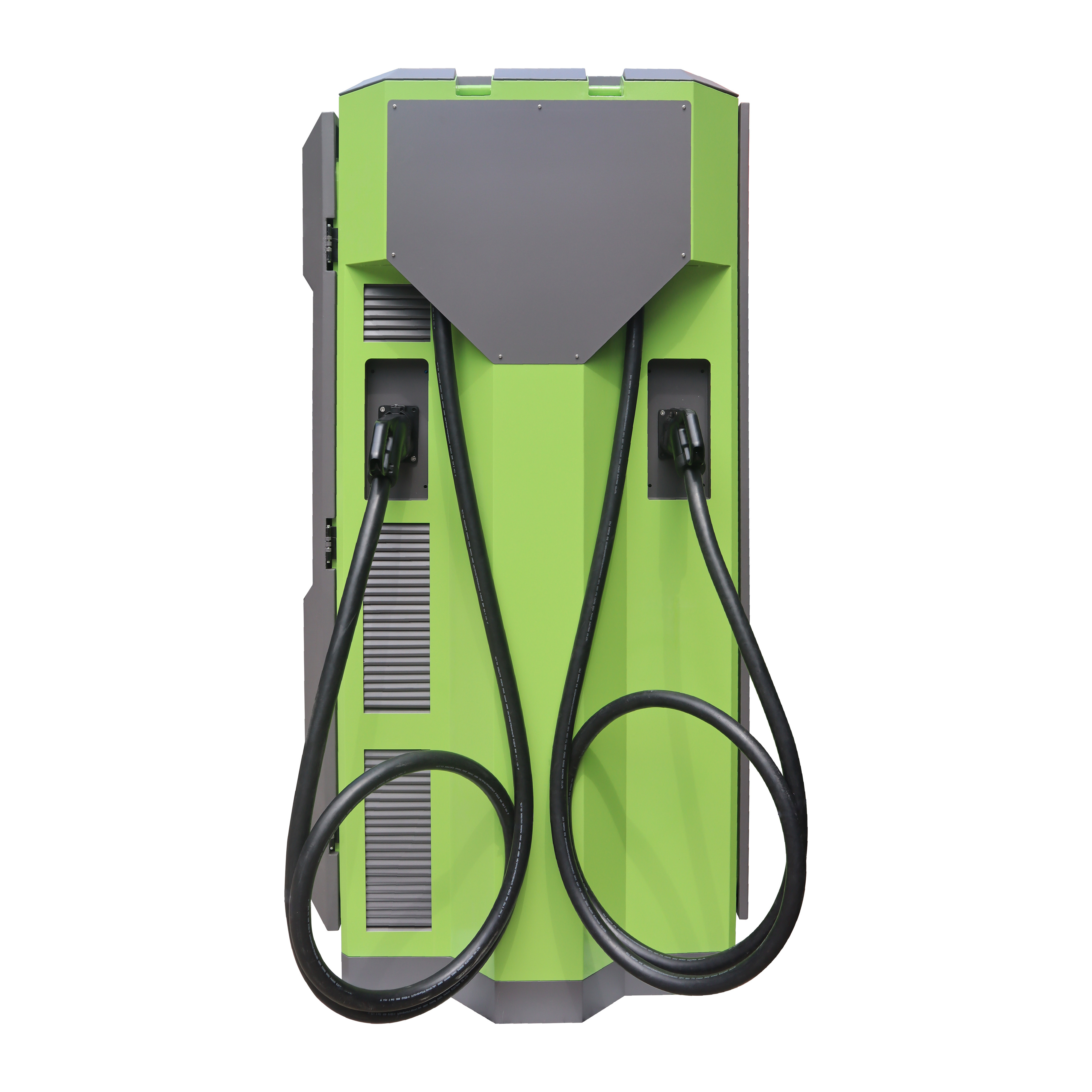

360KW double guns ev charging station mobile charger for car ev fast charger 360kw for electric vehicle
|
Model
|
|
180kW
|
360kW
|
|
|
AC Input
|
Input Rating
|
400Vac± 15%
|
480Vac±15%
|
|
|
|
AC Input Connection
|
3P+N+PE
|
|
|
|
|
Max Input Current
|
single DC plug:250kva
|
single DC plug:500kva
|
|
|
|
Frequency
|
50/60Hz
|
|
|
|
|
Power Factor
|
>0.99@full load
|
|
|
|
|
Efficiency
|
95%
|
|
|
|
DC Output
|
Output Voltage Range
|
50-500vdc(chademo),150-750vdc(ccs),48-1000vdc(gbt/tesla)
|
|
|
|
|
Max.Output Power
|
180kW
|
360kW
|
|
|
|
Max.Output Current
|
single plug:300A/600A@500V,240A/480A@750V,180A/360A@1000V
|
|
|
|
User Interface
|
HMI
|
7-15'touch display(Antroid),RFID
|
|
|
|
|
Push Buttons
|
Emergency Stop
|
|
|
|
|
Communication
|
VPN/DNS/Cloud,Wi-Fi,RJ45,Rounter 3/4G(Gsm or CDMA),Modbus TCP,PLC
|
|
|
|
Packing
|
Dimension
|
1950*990*980mm
|
|
|
|
|
Weight
|
360kg
|
580kg
|
|
|
Environmental
|
Temperature
|
-20°C~+50°C,power derating from+50°C and above
|
|
|
|
|
Humidity
|
5%~90%RH,non-condensing
|
|
|
|
|
Altitude
|
2000m
|
|
|
|
|
IP Level
|
IP54,IK10 indoor/outdoor
|
|
|
|
Mechanical
|
Cable Length
|
5M(CHAdeMO),5M(CCS),5M(GB/T)Customized acceptable
|
|
|
|
Regulation
|
Standard
|
EN 61851-1,JEVSG105
|
|
|
|
|
Certification
|
CE,ROHS,TUV,CSA,UL,IEC
|
|
|
|
|
Protocol
|
CHAdeMO 2.0/DIN 70121,OCPP1.6(JSON or SOAP),ISO 15118
|
|
|
|
|
Noise Level
|
<50 dB in all direction
|
|
|
Features
CHR-180/360 Multi-standards DC Super Charging Station (CHAdeMO,CCS ,Tesla,GBT Combo)
ELECTWAY
The CHR-180/360 is a quick charge station able to charge all type of electric vehicles. Users only need to plug the charging connect to the vehicle and the CHR-180/360 will immediately start the charging process.
• Multiple output - CCS1 or 2,CHAdeMO,GB/T,AC type1 or 2 and Tesla super charging
• Fast-charge any CCS,CHAdeMO,GB/T,Tesla vehicle
• 0 to 80% in less than 0.1 hour
• Safe and intuitive to use
• Stationary IK10, IP54
• Emergency stop button
• Optional network integration (OCPP 1.6 JSON)
• Optional built-in communications (4G; LAN; Wi-Fi)
• Optional RFID reader
• 7-15 inch touch display
• Dynamic remote power control via modbus TCP
Application
• EV fleets(private and public)
• EV dealers and service providers
• Employee parking lots
• Car-Share,Taxi and Rent-a-Car fleets
• Shopping Centers
• Private EV Infrastructure and operators
CHR-180/360 Multi-standards DC Super Charging Station (CHAdeMO,CCS ,Tesla,GBT Combo)
ELECTWAY
The CHR-180/360 is a quick charge station able to charge all type of electric vehicles. Users only need to plug the charging connect to the vehicle and the CHR-180/360 will immediately start the charging process.
• Multiple output - CCS1 or 2,CHAdeMO,GB/T,AC type1 or 2 and Tesla super charging
• Fast-charge any CCS,CHAdeMO,GB/T,Tesla vehicle
• 0 to 80% in less than 0.1 hour
• Safe and intuitive to use
• Stationary IK10, IP54
• Emergency stop button
• Optional network integration (OCPP 1.6 JSON)
• Optional built-in communications (4G; LAN; Wi-Fi)
• Optional RFID reader
• 7-15 inch touch display
• Dynamic remote power control via modbus TCP
Application
• EV fleets(private and public)
• EV dealers and service providers
• Employee parking lots
• Car-Share,Taxi and Rent-a-Car fleets
• Shopping Centers
• Private EV Infrastructure and operators
Product Paramenters
Product packaging
1pcs per wooden
Sending by Express TNT , Fedex , DHL or By air , By sea by Customized
Express Freight cost Prepaid or Collect are both accepted!
Sending by Express TNT , Fedex , DHL or By air , By sea by Customized
Express Freight cost Prepaid or Collect are both accepted!
