Function: for washing, screening and separating the minerals
Mesh size: 12mm and 6mm or according to clients requirement
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
220V-480V
-
Dimension(L*W*H):
-
Diffrent Model
-
Weight:
-
750 KG
-
Application:
-
Gold Ore
-
Keywords:
-
mobile gold wash plant
-
Installation:
-
Engineer Guide
-
Usage:
-
Gold Separating
-
Product name:
-
Gold Wash Plant
-
Certificate:
-
ISO9001, CE
-
Material:
-
Steel
-
Capacity:
-
10-6000t/d
-
Recovery rate:
-
90-99%
Quick Details
-
Production Capacity:
-
98%
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Xinhai
-
Voltage:
-
220V-480V
-
Dimension(L*W*H):
-
Diffrent Model
-
Weight:
-
750 KG
-
Application:
-
Gold Ore
-
Keywords:
-
mobile gold wash plant
-
Installation:
-
Engineer Guide
-
Usage:
-
Gold Separating
-
Product name:
-
Gold Wash Plant
-
Certificate:
-
ISO9001, CE
-
Material:
-
Steel
-
Capacity:
-
10-6000t/d
-
Recovery rate:
-
90-99%
Product Structure

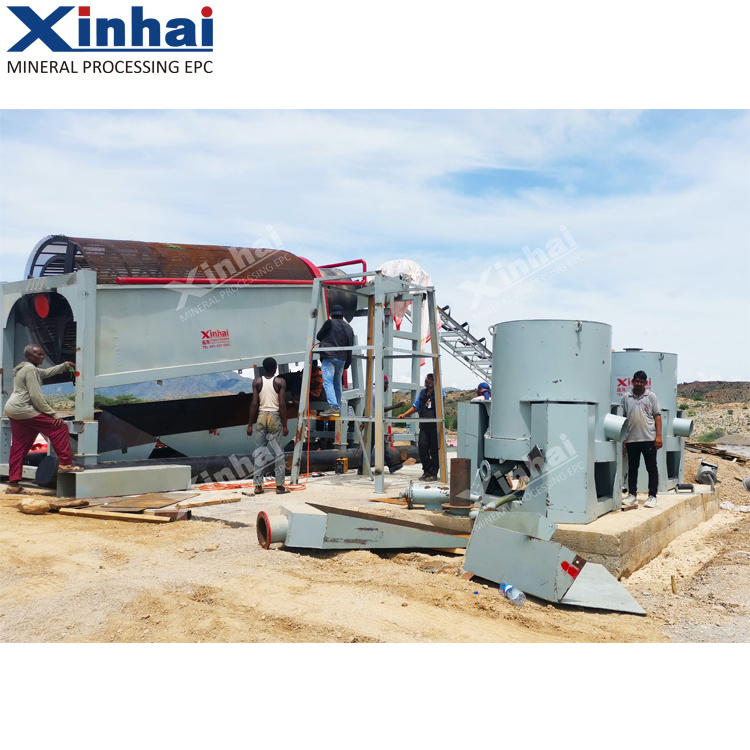

Gold Wash Plant
1) Gold washing plant are designed according to your specific mining conditions and requirements.
2) Feeding system with grizzly hopper feeder.
3) Heavy duty clay scrubber with inside high pressure water spray pipes for breaking off hard clay (if required).
4) trommel screen with NSK bearings and high pressure water spray pipes on both sides for washing, screening and separating.
5) Double gold recovery systems to ensure highest recovery rate of gold (up to 98%).
6) Water supplying systems with multiple sets of big power submersible slurry pumps, hoses, valves, etc.
7) Gold processing plant to make final product of gold.
8) Easy for installation, operation and maintaining.
9) One-Stop gold mining solutions
Gold Trommel Screen
Size (mm): φ1500*3500 or according to processing capacity
Advantage:
1.Customized capacity and strong power scrubbing, large capacity can reach 200-250tons per hour.
2.Long washing drum of the scrubber retains material for longer, more vigorous washing for complete separation.
3.One high output electrical motor driving a rubber wheel system providing efficient torque.
4.Rotation speed can be adjusted by advanced reducer.
5.The water with high pressure flushed the inwall of drum.
6.Can accept material up to 230mm.
Sluice Box
Size: 800mm*6000mm or according to processing capacity
Function: for coarse gold recovery
Recovery rate: 99%
Products Description
|
Mini Gold Wash Plant
——Product Description
【Introduction】:Gold CIL process (carbon in leach) is an efficient method of extracting and recovering gold from its ore. By cyaniding and carbon leaching crushed gold ore slurry simultaneously, CIL process lowers the gold mining operation cost and increases gold recovery rate to a degree of 99%. It is the first choice of modern gold mining and gold beneficiation plant.
|
|
|
|
【Application】:CIL mainly applies for the process of above 1g/t grade gold ore and gold ore with large bearing ore volume:silver,platinum, copper, etc. As CIL sees a better performance in extracting these minerals at the same time. And Xinhai Mineral Dressing Test Center can help you with the component testing of your ores.
|
|
|
Process Description
Alluvial Gold Ore Washing Plant
——Process Description
1. After the crushing and grinding stage, add 9 step-arranged high-efficiency cyanidation leaching tanks into the pulp. Gold pulp cyanidation is carried on the first two leaching tanks, countercurrent adsorption operation is carried on the last six or seven leaching tanks (cyanidation and adding activated carbon simultaneously).
2. In the adding activated carbon step, add the coconut shell activated carbon (small hole, high activity, wear-resisting and renewable) specially selected by Xinhai mineral processing design institute into the pulp, which can dissolve and adsorb the gold and silver ions then form the gold loaded carbon according to the characteristics of gold and silver adsorption.
3. Filter press and high frequency dewatering screen developed by Xinhai can effectively reduce the carbon wear on the surface of vibrating screen and in the process of continuous slurry pumping, and reduce the cost, facilitate the maintenance and operation.
4. The gold desorption is carried out by Xinhai high-temperature and high-pressure desorption method (150 degrees and 0.5Mpa), which can resolve 99% of gold within 2-6 hours.
Process Flow
