CW Narrow Linewidth Diode 405nm Violet Laser For Raman Application

FOB Reference Price: Get Latest Price

≥5 Pieces

US $1950

≥10 Pieces

US $1850

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Weight (KG):: 3.5 KG

narrow spectrum linewidth:: <0.03nm

M2:: <1.5

Transverse mode:: Near TEM00

Power stability (rms, over 4 hours):: <1%, <2%, <3%

Beam divergence, full angle (mrad):: <1.5

Polarization ratio:: >50:1 (>100:1, optional)

Quick Details

Place of Origin:: Jilin, China

Spare Parts Type:: research

Brand Name:: CNI

Weight (KG):: 3.5 KG

narrow spectrum linewidth:: <0.03nm

M2:: <1.5

Transverse mode:: Near TEM00

Power stability (rms, over 4 hours):: <1%, <2%, <3%

Beam divergence, full angle (mrad):: <1.5

Polarization ratio:: >50:1 (>100:1, optional)

Product Description

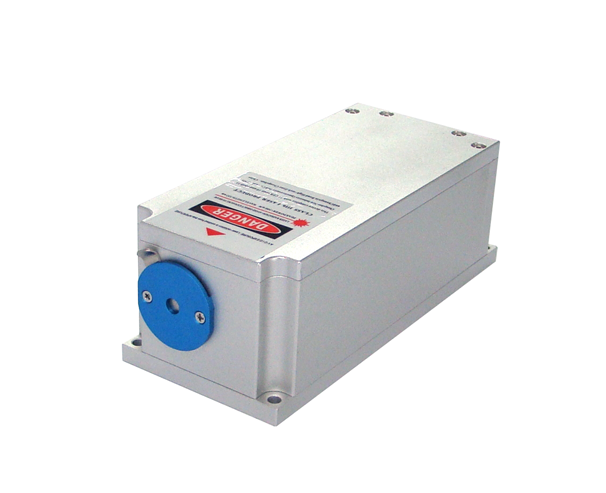

Narrow Linewidth MDL-E Series Diode Lasers

MDL-E series lasers, with the characteristic of narrow spectral linewidth< 0.03nm, are ideal for application in DNA sequencing, flow cytometry, digital imaging, analytical chemistry, particle measurement, confocal microscopy, Raman spectroscopy and many other fields. Housed in small package, these lasers are the choice for OEM instrumentation, systems design and integration, and also for user applications in research and development.

Features of MxL-U series lasers:

Wavelength(nm)	Model	Output Power(mW)	Wavelength(nm)	Model	Output Power(mW)
375	MDL-E-375	1~20	637	MDL-E-637	1~80
400	MDL-E-400	1~50	640	MDL-E-640	1~30
405	MDL-E-405	1~150	642	MDL-E-642	1~30
410	MDL-E-410	1~150	650	MDL-E-650	1~30
415	MDL-E-415	1~150	655	MDL-E-655	1~30
442	MDL-E-442	1~30	660	MDL-E-660	1~120
445	MDL-E-445	1~30	705	MDL-E-705	1~10
447	MDL-E-447	1~30	730	MDL-E-730	1~10
450	MDL-E-450	1~30	785	MDL-E-785	1~20
454	MDL-E-454	1~30	808	MDL-E-808	1~20
460	MDL-E-460	1~100	830	MDL-E-830	1~30
488	MDL-E-488	1~70	915	MDL-E-915	1~30
514.5	MDL-E-514.5	1~40	940	MDL-E-940	1~30
520	MDL-E-520	1~10	975	MDL-E-975	1~30
633	MDL-E-633	1~80	980	MDL-E-980	1~30
635	MDL-E-635	1~40	1060	MDL-E-1060	1~40
