RUIDA DSP controller with color display;
Z+ Z- control table up/down;
Compatible with Light Burn software;
- Product Details
- {{item.text}}
Quick Details
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong,CHINA
-
Brand Name:
-
Ray Fine
-
Dimension(L*W*H):
-
153*133*114CM
-
Weight (KG):
-
360 KG
-
Core Components:
-
Other
-
Model:
-
6040/6090/1390
-
Product name:
-
C02 Laser Engraving Cutting Machine
-
Function:
-
Cutting Engraving Non-metal Materials
-
Laser power:
-
50W/60W/80W/100W
-
Laser tube:
-
RECI EFR Yongli
-
Software:
-
RDworks V8
-
Working area:
-
400*600 Mm
-
Engraving materials:
-
Non-metallic
-
Laser tube type:
-
glass tube
-
Graphic format supported:
-
AI,BMP, DST, DWG, DXF, DXP, LAS, PLT, etc
Quick Details
-
Engraving Area:
-
Low price laser machine
-
Laser Type:
-
CO2
-
Engraving Speed:
-
0-360mm/s
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong,CHINA
-
Brand Name:
-
Ray Fine
-
Dimension(L*W*H):
-
153*133*114CM
-
Weight (KG):
-
360 KG
-
Core Components:
-
Other
-
Model:
-
6040/6090/1390
-
Product name:
-
C02 Laser Engraving Cutting Machine
-
Function:
-
Cutting Engraving Non-metal Materials
-
Laser power:
-
50W/60W/80W/100W
-
Laser tube:
-
RECI EFR Yongli
-
Software:
-
RDworks V8
-
Working area:
-
400*600 Mm
-
Engraving materials:
-
Non-metallic
-
Laser tube type:
-
glass tube
-
Graphic format supported:
-
AI,BMP, DST, DWG, DXF, DXP, LAS, PLT, etc

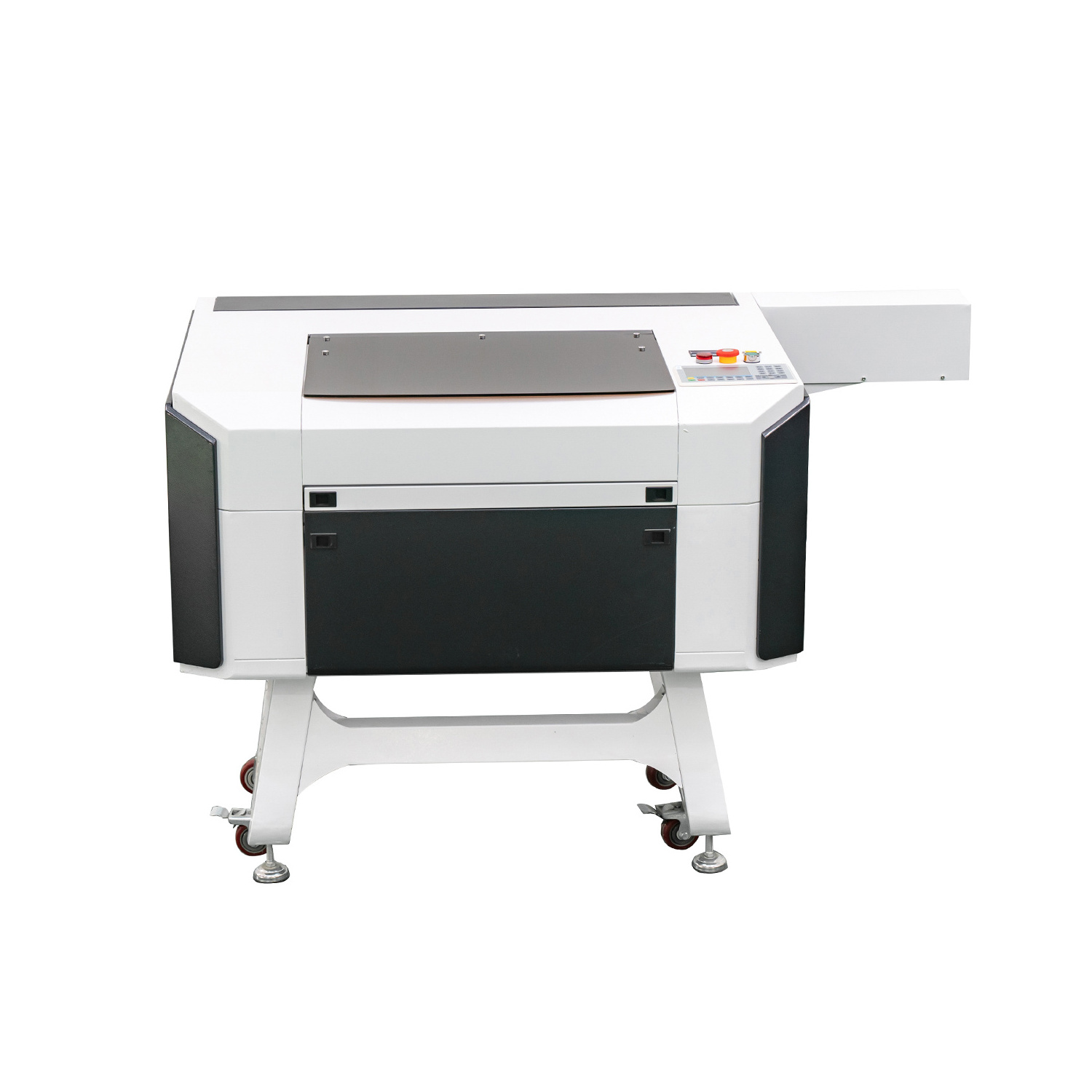

Rayfine brand 40W 50W 60W 80W CO2 Laser Cutting Machine 6040 4060 Laser Cutter Engraver
CO2 Laser cutting engraving machine suitable for a variety of materials, such as acrylic, plexiglass, leather, plastic, wood,
density board, rubber and non-metal. Especially cutting acrylic and cutting density board, engraving wood, engraving plastic.
600*400mm laser cutting engraving machine with 40W / 50W / 60W / 80W
density board, rubber and non-metal. Especially cutting acrylic and cutting density board, engraving wood, engraving plastic.
600*400mm laser cutting engraving machine with 40W / 50W / 60W / 80W
Product Description
Specification
|
Model
|
RF-1390 / RF-9060 / RF-6040
|
|
Working area
|
1300X900MM/900X600MM/600X400MM
|
|
Laser source
|
RECI / EFR/Aipulong Laser source
|
|
Control System
|
Ruida
|
|
Operating software
|
RDWORKS
|
|
X Y motor
|
Leadshine three-phase motor/Leadshine hybrid servo/ordinary three-phase motor
|
|
System environment
|
win7/win8/win10
|
|
Water collingCooling method
|
Water colling , Chiller CW3000/CW5000/CW5200
|
|
Guide
|
PMI/HIWIN Or Ordinary Linear Guides
|
|
Lifting platform control
|
Motorized up and down （57 two-phase motor）
|
|
Focus lens
|
D20 63.5/50.8 ordinary lens / II-VI lens
|
|
Graphic format supported
|
dxf svg plt ai bmp png （Coredraw，AutoCAD，Adobe illustrator ）
|
|
Communication method
|
USB cable/Network cable
|
|
Working table
|
Aluminum knife table / Honey comb working table
|
|
Power supply
|
AC220/110V±10% 50/60hz
|
|
Processing material
|
Acrylic/MDF/Plywood/Rubber Sheet/Leather/Paper/Board/Cloth/PVC
|
|
Auxiliary accessories
|
Air Pump /Fan
|
|
Protection / warning device
|
Water protection/cover opening protection/alarm light
|
|
Instrument indication
|
Digital Voltmeter/Ammeter
|
|
Auto focus
|
Optional
|
Details of the machine
RUIDA DSP controller with color display;
Z+ Z- control table up/down;
Compatible with Light Burn software;
Built-in chiller
- Built-in chiller design makes operation more convenient.
- cool down when the machine works, controlling the temperature within the range, which can extend the working life of the laser
machine and improve the marking accuracy .
* Rugged and durable
* Low running resistance
* Can effectively improve work efficiency
* Low environmental requirements
* Works in harsh environments
* Low friction
Sample Show
Machine packaging
1. Outside package: Standard marine export plywood case.
2. Inner package: Stretchy film and plastic film for humidity.
Our Service
1.Details english software manual;
2.Video instruction to show you how to connect machine and replace parts in case need;
3.Remote control your computer to help you set up parameter;
4.Shipped with U disk in the file bag , and the file contains the use video and dimming video, as well as the machine manual, and the corresponding software package;
5. If you have any questions, you can contact us via email, whatsapp, or WeChat. We will solve the problem for you in time;
6. We welcome every customer to give us valuable advice on the machine.
Company profile
Liaocheng Ray Fine Technology Co., Ltd was established in 2009, one special supplier of CNC laser equipment combined with produce,research and sales .Ray fine products covered: laser cutting machine,laser marking machine and CNC router etc. Our CNC laser products has been sold to more than 100 countries of worldwide.such as Europe,America,south Africa,Japan,Korea,And enjoyed good reputation.
RAYFINE has an special technical research team which can custom made the equipment according customers working requirement. And supply all aspects technical service for customers.
Welcome customers home and abroad come to visit company and make cooperation!
FAQ
Q1:How to choose machine?
A: CO2 laser deals with non-metal materials. you can tell us your working material, detail work by picture or video so that we can recommend the most suitable model for you.
Q2:Are you a factory or trading company?
A: We are the manufacturer. as only the machine made by ourselves, quality can be trusted, and most important thing is we can do better service after sales. We know how to fix the problem in each parts easily. So welcome to visit to our factory.
Q3:How to pay?
A: T/T or Alibaba trade assurance.
Q4:What's your leading time?
A:Usually it takes about 7-15 days for us to finish production and ship machines to our sea port.
Q5: What will you do if some parts are broken within guarantee time?
A:We will send free parts to clients or clients send the parts back to us and we repair and send them back.
