Quick Details
-
Ambient temperature:
-
-40 degreen to + 55 degree
-
Humidity:
-
30% -90%
-
Max flow:
-
50L/min or 90L/min
-
Accuracy:
-
about 0.3%
-
Repeating error:
-
less than 0.15%
-
Inlet pressure:
-
more than 54 kPa
-
Outlet pressure:
-
less than 0.3 Mpa
-
fuel dispenser:
-
fuel dispenser
-
fuel dispenser price:
-
fuel dispenser price
-
gas station fuel dispenser:
-
gas station fuel dispenser
Quick Details
-
Max Working Pressure(MPa):
-
1 MPa
-
Place of Origin:
-
Shandong, China
-
Weight:
-
160
-
Ambient temperature:
-
-40 degreen to + 55 degree
-
Humidity:
-
30% -90%
-
Max flow:
-
50L/min or 90L/min
-
Accuracy:
-
about 0.3%
-
Repeating error:
-
less than 0.15%
-
Inlet pressure:
-
more than 54 kPa
-
Outlet pressure:
-
less than 0.3 Mpa
-
fuel dispenser:
-
fuel dispenser
-
fuel dispenser price:
-
fuel dispenser price
-
gas station fuel dispenser:
-
gas station fuel dispenser
Factory price fuel dispenser price gas station fuel dispenser
Features of Factory price fuel dispenser price gas station fuel dispenser:
1.Adopting combination pump or separate pump,smaller shape and convenient maintenance.
2.Adopting painting-side for common type and stainless steel side for luxurious type .
3.Leading-static and Highly-hang oil pipe.
4..Features fueling as ration,resetting by computer and re-displaying when power cut.
5.Big-size aluminium nozzle booter.
6.Submersible pump to be optional.
7.Flow meter features high precision and strong reliability.
8.Excellent electromagnetic compatibility and strongly anti-jamming.
9.Be capable of connecting with central computer in gas station.
10.Conveniently combining and extending function.
11.To update IC card fuel dispenser.
Parameters of Factory price fuel dispenser price gas station fuel dispenser:
|
Model |
Product |
Nozzle |
Display |
Motor |
Pump |
Flow meter |
|
DJY-218A |
1 |
1 |
2 |
1 |
1 |
1 |
|
DJY-121A |
1 |
2 |
2 |
1 |
1 |
2 |
|
DJY-122B |
1 |
2 |
2 |
1 |
1 |
1 |
|
DJY-222A |
2 |
2 |
4 |
2 |
2 |
2 |
|
DJY-241A |
2 |
4 |
4 |
2 |
2 |
4 |
|
DJY-242B |
2 |
4 |
4 |
2 |
2 |
2 |
|
DJY-363A |
3 |
6 |
6 |
3 |
3 |
6 |
|
DJY-484A |
4 |
4 |
8 |
4 |
4 |
8 |
|
Ambient temperature: |
-40 degreen to + 55 degree |
|
Humidity: |
30% -90% |
|
Max flow: |
50L/min or 90L/min |
|
Accuracy: |
about 0.3% |
|
Repeating error: |
less than 0.15% |
|
Inlet pressure: |
more than 54 kPa |
|
Outlet pressure: |
less than 0.3 Mpa |
|
Power: |
220V 50HZ (380V to be optional) |
|
Noise: |
less than 80dB ( A class) |
|
Unit price range |
0.01-99.99 |
|
Single volume range: |
0.01-9999.99 |
|
Accumulative volume range |
0.01-9999999999.99 |
|
Explosion-proof certificate: |
CE011195 |
|
Explosion-proof sign: |
Exdm II AT3 |

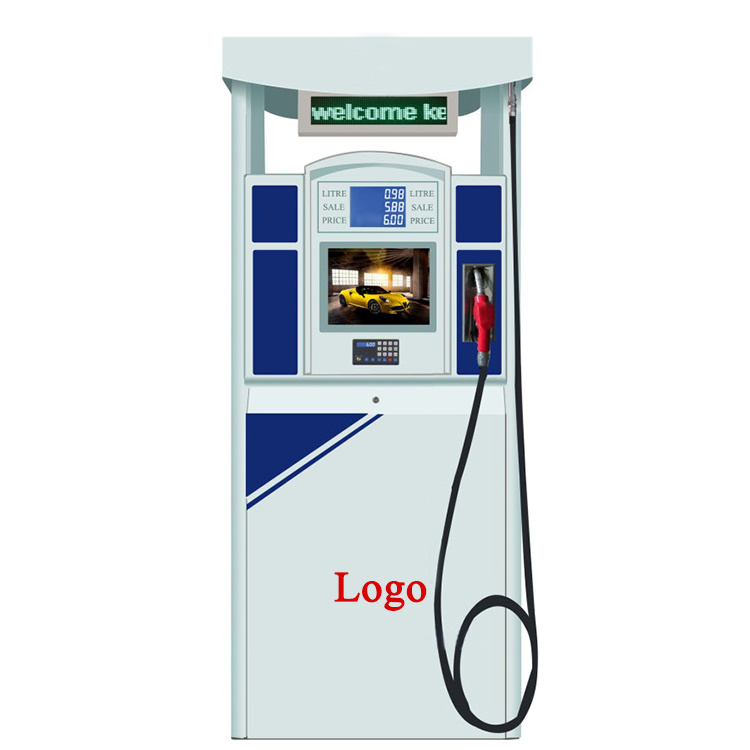

Photos of Factory price fuel dispenser price gas station fuel dispenser
:
