Modbus RS585 panel power meter digital meter LCD meter power analyser

Modbus RS585 panel power meter digital meter LCD meter power analyser

FOB Reference Price: Get Latest Price

≥5 Sets

US $49

≥50 Sets

US $45

≥1000 Sets

US $43

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: KY

Model Number:: KYP5000

Accuracy Class:: class 0.5s

Output Voltage:: L-N: 30 to 350V AC; L-L: 30 to 660V AC

Operating Temperature:: -25 to +70℃

Dimensions:: 96*96*85.2mm

Product name:: electric power meter

model:: KYP5000

Operational voltage:: L-N: 30 to 350V AC; L-L: 30 to 660V AC

Rated current:: 5A

connect type:: CT connect type

measure:: bi-directional energy

measuring harmonic:: yes

Communication:: RS485 Port MODBUS-RTU Protocol

Installation method:: wall mounted

Measurement accuracy:: class 0.5s

Quick Details

Phase:: Three Phase

Measuring Energy Range:: 0-99999

Place of Origin:: Zhejiang, China

Brand Name:: KY

Model Number:: KYP5000

Accuracy Class:: class 0.5s

Output Voltage:: L-N: 30 to 350V AC; L-L: 30 to 660V AC

Operating Temperature:: -25 to +70℃

Dimensions:: 96*96*85.2mm

Product name:: electric power meter

model:: KYP5000

Operational voltage:: L-N: 30 to 350V AC; L-L: 30 to 660V AC

Rated current:: 5A

connect type:: CT connect type

measure:: bi-directional energy

measuring harmonic:: yes

Communication:: RS485 Port MODBUS-RTU Protocol

Installation method:: wall mounted

Measurement accuracy:: class 0.5s

Product Description

KYP5000 series products are panel installation type mutil-function power meter.This series of products can support the metering way of external voltage and current transformer access, as well as support the measurement and analysis of variety of power parameters,such as voltage, current, the four quadrant power parameters, power factor, total harmonic and subharmonic content,unbalance, peak factor etc. . The Characters as below:

1. Embedded panel installation, product panel size 96 * 96mm, adopts touch button design, improves operation of key and reduces key failure rate 2. External current transformer type supports direct access of Roche coil and current transformer of output type like 5A/100mV/100mA, with reverse connection correction function of current transformer 3.Support external voltage transformer access, input voltage minimum 30V 4. Multi-function parameter measurement to provide measurement datas of voltage, current, active power, reactive power, apparent power, power factor, and phase angle,etc. 5. Provide electrical parameters of various types of analysis, such as voltage / current, total harmonic and subharmonics, voltage/current unbalance, voltage peak factor ,current k coefficient etc, supporting up to 63 subharmonics. 6. Provide a variety of statistics and local storage functions, such as two-way power, four-quadrant power, demand, maximum / minimum statistics 7, Provide monthly electricity consumption statistics for the last three months, and daily electricity consumption statistics for the last 31 days 8. Support for multi-channel digital input and output interface 9.Support 2 passive pulse output, 1 RS485 communication with baud rate of 38,400 bps

Products Display

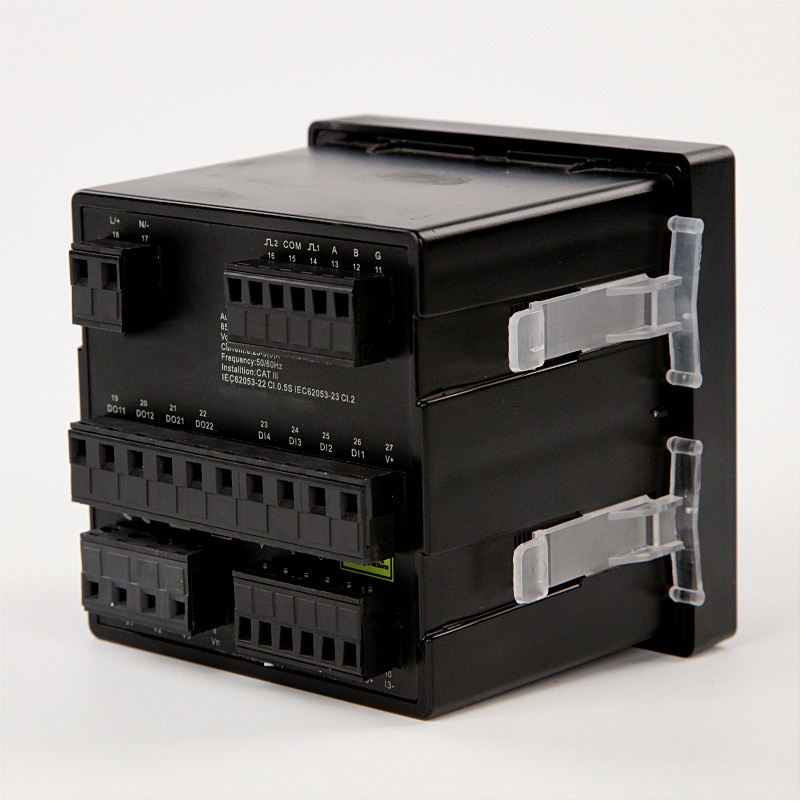

High quality panel power meter

This series can provide the measurement of multiple electric energy parameters , such as two way active energy, reactive energy, monthly and daily electricity consumption statistics.This series of products also can support the analysis of electric power parameter measurement in 1P2W,2P3W,3P3W,3P4W

It also support multi-tariff function and DIDO function

Products Application

Specification

Electrical Characteristics	Rate voltage (Un)	3*110/190V or 230/400V AC
		Operational voltage	L-N: 30 to 350V AC; L-L: 30 to 660V AC
		Related current(Imax)	5A
		Pulse constant	5000 imp/kWh
		Display	LCD with backlight
		Maximum reading of energy	999999.99 kWh/kVarh
		Measure type	Three phase four wire, Three phase three wire,Single phsae two wire
Measurement accuracy	Voltage, Current	±0.5%
		Active power	±0.5%
		Reactive power	±2.0%
		Apparent power	±0.5%
		Active energy	±0.5%
		Reactive energy	±2.0%
		Power factor	±0.5%
		Frequency	±0.1%
Environmental Characteristics	Operating Temperature	'-25 to +70℃
		Storage Temperature	'-40 to +80℃
		Humidity	< 90%, non-condensing
Communications	Interfaces standard and protocols	2-wire RS485, Modbus RTU
Communications		Buad rate	1200 to 38400 bps, default is 9600 bps
