Quick Details
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, DXP, JPG
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Transon
-
Dimension(L*W*H):
-
1660*1310*1050mm
-
Weight (KG):
-
3400 KG
-
Product name:
-
C02 Laser Engraving Cutting Machine
-
Laser power:
-
90-100W
-
Laser tube:
-
RECI
-
Laser tube type:
-
Sealed CO2 Laser Glass Tube
-
Control system:
-
Ruida Control System
-
Software:
-
RDworks
-
Keywords:
-
Laser Engraving Machine
-
Function:
-
Engraving Cutting Nonmetal Materials
-
Working area:
-
1200*900mm
-
Laser Style:
-
co2
Quick Details
-
Engraving Area:
-
1200mm*900mm /47.24in*35.43in
-
Laser Type:
-
CO2
-
Engraving Speed:
-
0-70000mm/min
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, DXP, JPG
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Transon
-
Dimension(L*W*H):
-
1660*1310*1050mm
-
Weight (KG):
-
3400 KG
-
Product name:
-
C02 Laser Engraving Cutting Machine
-
Laser power:
-
90-100W
-
Laser tube:
-
RECI
-
Laser tube type:
-
Sealed CO2 Laser Glass Tube
-
Control system:
-
Ruida Control System
-
Software:
-
RDworks
-
Keywords:
-
Laser Engraving Machine
-
Function:
-
Engraving Cutting Nonmetal Materials
-
Working area:
-
1200*900mm
-
Laser Style:
-
co2

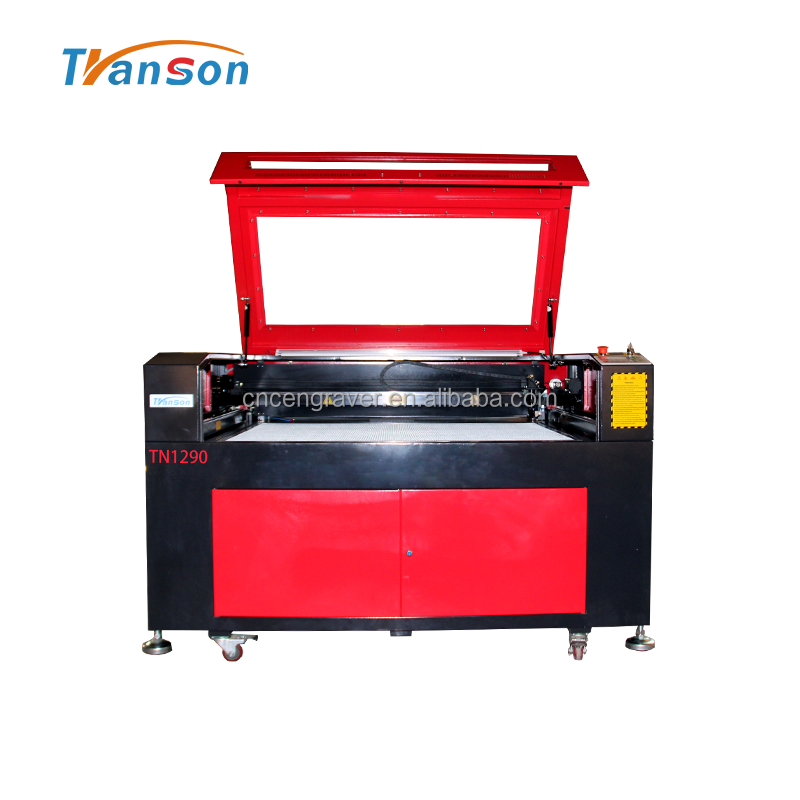

TN1290 CO2 Laser Engraving Machine
PARAMETERS:
|
Model |
TN6090 / TN1290 / TN1390 / TN1490/ TN1610 |
|
Working area |
600*600mm / 900*1200mm / 900*1300mm/900*1400mm/ 1000*1600mm (L*W) |
|
Laser power |
40W/60W /90W /100W/120W/150W/180W |
|
Laser type |
CO2 sealed laser tube, water-cooled |
|
Worktable |
Standard with Metal slat worktable |
|
Engraving speed |
0-70000mm/min |
|
Cutting speed |
0-40000mm/min |
|
Highest scanning precision |
2500DPI |
|
Power supply |
220V/50Hz , 110V/60Hz |
|
Min. shaping character |
English 1.0 x 1.0mm, Chinese 1.5 x 1.5mm |
|
Graphic.format.supported |
AI, DXF,PLT,DST,DSB, EPS,DAT,NC,BMP,RDB, GIF, JPG, JPEG,JPE,JFIF,PNG,MNG,ICO,CUR,TIF,TIFF,TGA,PCX,WBMP, WMF,EMF,JBG,J2C,JPC,PGX,RAS,PNM,PGM,PPM,SKA,RAW, |
|
Software supported |
CorelDraw, PhotoShop, AutoCAD,TAJIMA |
|
Control system |
High speed DSP control system brand Ruida or Leetro |
|
Machine work software |
RDWorks V8 (Ruida) |
|
Laser output control |
1-100% by setting in the software |
|
Interface |
USB 2.0 |
Marble, stone, tomb stone, wood, bamboo, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials
Applicable industries:
Advertisement, gift, shoes, toys, computers, garments, model cutting,building, packaging,
paper industry
All the components of our laser machines are with the highest quality, good finish and good quality. Our quality control department will fully check and test EVERY ONE of our laser machines before shipment. We can 100% make sure all our customers will get good products from us, and we have TWO year warranty for our laser machine. Usually the life time of glass laser tube is 100,000 hours, machines can keep working 24 hours a day, usually working more than 8 hours a day is totally no problem.
Together with the laser machines we send together "Instruction Book", "Operation Manual" and "Training Video" (in English version) our customer can easily understand and operate our machines when they arrive.
We will offer plenty of online supports, by email, video, telephone and fax.
Our engineer can make a door-to-door instruction training service.
