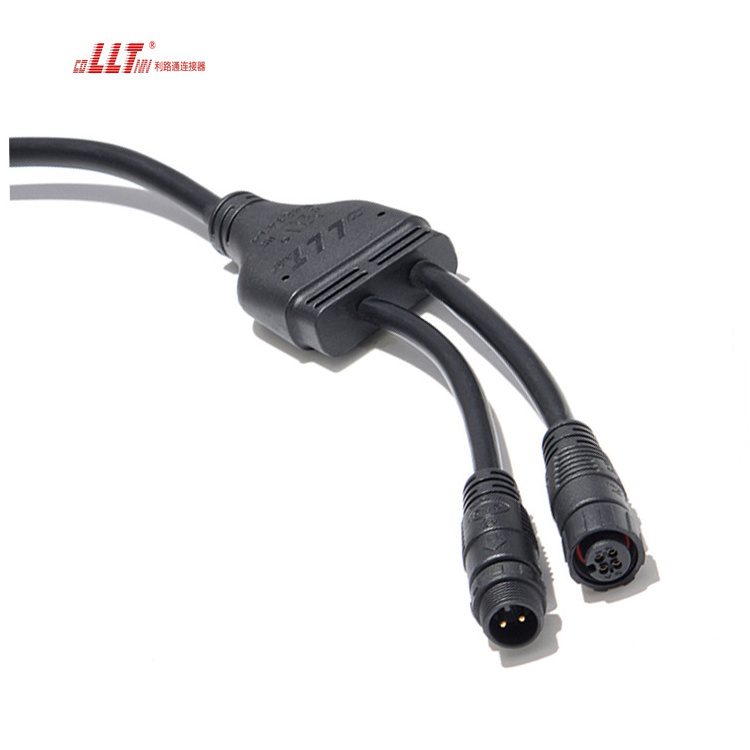

IP67 2pin Y power cable connector splitter input 1 output two ports 2 3 4pin mold plastic waterproof connector

IP67 2pin Y power cable connector splitter input 1 output two ports 2 3 4pin mold plastic waterproof connector

FOB Reference Price: Get Latest Price

≥10 Pieces

US $2

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Guang Dong ,China

Brand Name:: LLT

Model Number:: LLT-YS023-XX

Function::: Airtight,Waterproof ,Dustproof

Rating::: 300V/15A

Waterproof Level::: IP67

Temperature Range::: -40℃-105℃

Material::: PA66 Nylon UL94V-0

Warranty::: 12 Month

Max. OD::: 13mm

Lock Type:: thread lock

Durability::: 3000 times

Quick Details

Type:: Molding cable connector

Application:: LED light,outdoor display,electrical equipment,samart grid

Gender:: male to female

Place of Origin:: Guang Dong ,China

Brand Name:: LLT

Model Number:: LLT-YS023-XX

Function::: Airtight,Waterproof ,Dustproof

Rating::: 300V/15A

Waterproof Level::: IP67

Temperature Range::: -40℃-105℃

Material::: PA66 Nylon UL94V-0

Warranty::: 12 Month

Max. OD::: 13mm

Lock Type:: thread lock

Durability::: 3000 times

Product Description

Specification:

Model number:LLT-YS023-XX

Connector Body:Nylon(PA 66)+GF UL94V-0 1/16"
Sealing:Silica Gel
Contact: Brass with gold plated
Mating style: Thread lock
Temperature Rating:-40°C~+105°C
Current rating:15A
Voltage rating:300V
Waterproof Rating:IP67
Contact resistance:<=10mΩ
Insulation resistance:1000MΩ at DC500V
Breakdown voltage: 1.5KV/1 minute
Pins range:2/3/4 pin

Max Cable Range:13mm

Pin Number	Voltage Rating	Current Rating	Contact Resistance	Insulation Resistance	IP Code	Cable Range	Breakdown Voltage
2	300V	20A	<=10mΩ	1000MΩ	IP67	<=13mm	1.5KV/1 minute
3	300V	20A	<=10mΩ	1000MΩ	IP67	<=13mm	1.5KV/1 minute
4	300V	20A	<=10mΩ	1000MΩ	IP67	<=13mm	1.5KV/1 minute

Production Photo

Production Advantage

1.Water circular connectors can connect electrical products perfectly .
2.Approved by UL,CE,TUV,ROHS,CCC,TS16949,ISO14001.
3.Our connector can be used outdoor during harsh winter or sweat summer . the endurance temperature range is -40℃-105℃.
4.We have got REACH certification ,Environmental connector is worthy of your reliable.
5.Every product will be inspected strictly ,we guarantee its good quality before delivery.
6.100% QC inspection before delivery .
7.Best quality & best service wtih a relative low price.
8.Advanced production equipment & strong technical strength ensure high quality and competitive products.
9. Your inquiry related to our products or price will be replied in 24 hours
10. Accept small order or mix order .trail order welcome
11. Large quantity order will win competitive factory price
12.OEM,ODM,any your customized idea ,we can help you to realize and put into products .
13.Protection you sale market ,idea design and all your private information
14.Fast delivery,2-15 workdays base on your order quantity after payment confirmed

Certificate

Why Choose Us

1.We are the leader in the waterproof connector field at China .
2.100% QC inspection before delivery .
3.Best quality & best service wtih a relative low price. .
4.Advanced production equipment & strong technical strength ensure high quality and competitive products.
5.we are one of the most powerful factory in China and our products are exported to many countries and a lot of good review from
customers.
6. OEM,OBM is available.
7.Full Certificate such as UL,CE,TUV,SAA,ROHS,CCC,TS16949,ISO14001 are available.
8.High quality products with 12 months guaranty, best after-sales service 6x24 hours

Buyer feedback

Related products

Application

Our products are widely used in LED light ,outdoor display ,electrical equipment ,automation machine ,electrical technolgy and medical equipment ,interactive samart grid,automation machine ,industrial pc ,marine device .

Our Company

We are one of global large-scale waterproof connector production enterprise. Our factory specilize in different knids of waterproof connector such as M12/M14/M16/M19/M22/M25/M29/M45/T/Y field assembly connector and molded cable connector Our products are best-sell around whole world . Our products all win high appraisal and reputation from our clients . With around 20 years of unremitting efforts ,Our team is committed to providing customers with low-price and high-quality products as well as professional customer service.Professional team,creative idea ,superior products .LLT company hope to be common developing with you to achieve in future .

Packing & Delivery

Packing :1.plastic bag 2.Carton 3.Wooden Box 4. As customer requirement.
Shipping :There are all kinds of methods of shippment for you to choose,Conpetitive express freight such as DHL/FedEx/UPS.For thoes of mass orders a quote of ocean shipping would be provided too if required .

FAQ

1.Q:Are you a manufacturer or trading company

A:We are a professional manufacturers.Located in NO.1-38,Jiahu Rd,Fuchengao Industrial park ,Pinghu St ,Longgang Distric,ShenzhenCity ,Guangdong province ,China .

2.Q:How to buy your products
A:(1) Confirm the cable material
(2)Confirm the core number and core diameter
(3)Choose right pluge according to detailed requirment
(4)Confirm the cable lenghth
(5)Confirm the tail process .
(6) Special process

3.Q:How can I get sample
A:It's my pleasure to offer you sample ,but we only can give you one set for free and the freight should be paid by yourself

4.Q:How many materials you can provide
A:There are some different material from the connector and cable ,We usually use Nylon material to product connector,PVC/Rubber/PU/Silicone material was used in cable ,of course we can also base on your requirment to choose the material .

5.Q:How does your factory control quality
A: Quality is priority ,LLT people alwasys attach great importance to quality ,controlling from the very beginning to the every end .Our factory has gained ISO9001:2000,We have certification CCC .CE.ROHS.UL,CQC.SGS

This style we have pin range from 2 to 6 and 8/20/24/2+6/3+8pin. If you are interested in any items ,please let us know freely,you'll get soonest response. Looking forward to your inquire .
