Quick Details
-
Warranty:
-
1years
-
Brand Name:
-
JSG DC PUMP
-
Model Number:
-
BD-07W
-
Place of Origin:
-
Guangdong, China
-
Horsepower:
-
N/M
-
Cable Length:
-
N/M
-
Outlet Size:
-
OD:6.5mm,ID:4.0mm
-
Power:
-
7-24W
-
Item:
-
Mini diaphragm water pump/liquid pump
-
Other name:
-
50G RO Booster pump, High pressure water pump, Self priming pump
-
Motor:
-
dc brush motor(can choose brushless motor)
-
Material:
-
POM
-
Medium:
-
water/liquid/fluid
-
Working time:
-
Continuous or intermittent
-
Feature:
-
Low noise, Low vibration, Dry-running available
-
More Feature:
-
Strong power , high pressure high flow rate
-
Theory:
-
Diaphragm Pump
-
MOQ:
-
1 PCS
Quick Details
-
Application:
-
Other, Automotive Industry, Developing World Water Solutions, District Energy, Drinking water treatment, Family Homes, Food and Beverage Industry, Industrial Utilities, Irrigation and Agriculture, Machining, Metal and Equipment Manufacturers, Pharmaceutical industry, Washing and Cleaning, Water Distribution, Water Treatment Solutions, Other
-
Pressure:
-
High Pressure
-
Voltage:
-
12V/24V
-
Warranty:
-
1years
-
Brand Name:
-
JSG DC PUMP
-
Model Number:
-
BD-07W
-
Place of Origin:
-
Guangdong, China
-
Horsepower:
-
N/M
-
Cable Length:
-
N/M
-
Outlet Size:
-
OD:6.5mm,ID:4.0mm
-
Power:
-
7-24W
-
Item:
-
Mini diaphragm water pump/liquid pump
-
Other name:
-
50G RO Booster pump, High pressure water pump, Self priming pump
-
Motor:
-
dc brush motor(can choose brushless motor)
-
Material:
-
POM
-
Medium:
-
water/liquid/fluid
-
Working time:
-
Continuous or intermittent
-
Feature:
-
Low noise, Low vibration, Dry-running available
-
More Feature:
-
Strong power , high pressure high flow rate
-
Theory:
-
Diaphragm Pump
-
MOQ:
-
1 PCS
Use for Water Pump Parameter

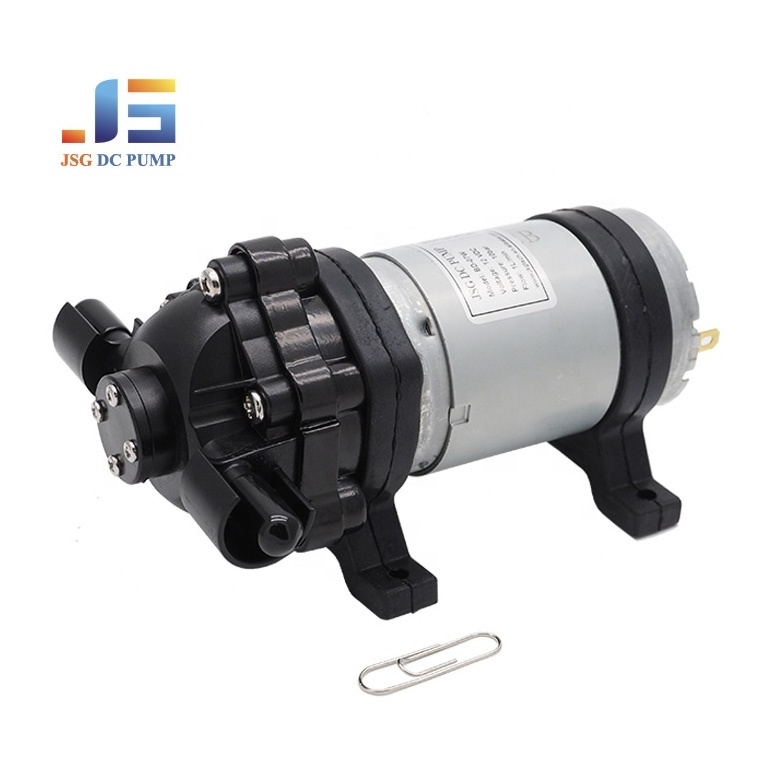

| Product Name | BD-07W 50G 12V 1L/min 145psi Ro booster pump |
| Model | BD-07W |
| No-load Flow Rate | 1L/min |
| Inlet Pressure | 30psi(2bar, 0.2Mpa) |
| Max Pressure | 145psi(10bar, 1Mpa) |
| Voltage | 12VDC |
| Working Pressure | 72psi(5bar, 0.5Mpa) |
| Working Flow | ≥0.5L/min |
| Working Current | <0.7A |
| Self Priming | 1M |
Remark:
1. "W"means water pump(Liquid pump)
2. Dear customer, for
custom parameters
, please refer to
the third table
General Specification
| Dimention | 118.5x76x62.5mm |
| Inlet/Outlet | ID:6.5mm/OD:4.0mm |
| Weight | 490g |
| Materials | POM |
| Working Mode | Interrupt |
| Motor | Brush DC Motor |
| Life time | 1000H |
| Environment Temperature range | 5-40℃ |
| Ambient humidity range | <80% RH |
Dimention
Product Details
Typical Appliaction
More Appliaction
1.Reverse Osmosis (RO) equipment
2.Ultrafiltration machine
3.soya-bean milk machine
4.Cleaning equipment
5.atomizing machine
6.Portable spray
7.Coffee maker
......
Custom Parameters
| Motor | Brush DC Motor | Brushless DC Motor |
| Lifetime | 1000H | 3000H |
| Voltage | 12V/24V | |
| Max Pressure | 145psi(10bar, 1Mpa) | |
| Water flow | 1L/min | |
| Working Mode | Continuous or intermittent | |
*If you are interested in our products, please
contact us
Brush motor
| Lead angle | Two(+,-) |
Brushless motor
| 2 Wire | Red(+),Black(-) |
Product Detail
