Elegant appearance of cabin.
Reinforced boom and arm can improve the structure hardness.
Strengthened bucket.
Enhanced transfer of heat is the result of a bran new engine bonnet design.
- Product Details
- {{item.text}}
Quick Details
-
Power:
-
31.2kW/2200rpm (41.81hp/2200rpm)
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
TOP BRAND
-
Maximum Digging Height:
-
5100mm(16'9''in)
-
Maximum Digging Depth:
-
3120mm(10'3''in)
-
Machine Weight:
-
35000 kg
-
Max Digging Radius:
-
5460mm(17'11''in)
-
Rated Speed:
-
3.5~4.5 km/h (2.2~2.8mph)
-
Marketing Type:
-
2023 new
-
Engine Model:
-
D1703-M-DI-EF03
Quick Details
-
Operating Weight:
-
3860kg
-
Bucket capacity:
-
0.12m3(4.24cu.ft.)
-
Engine Brand:
-
TOP BRAND
-
Power:
-
31.2kW/2200rpm (41.81hp/2200rpm)
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
TOP BRAND
-
Maximum Digging Height:
-
5100mm(16'9''in)
-
Maximum Digging Depth:
-
3120mm(10'3''in)
-
Machine Weight:
-
35000 kg
-
Max Digging Radius:
-
5460mm(17'11''in)
-
Rated Speed:
-
3.5~4.5 km/h (2.2~2.8mph)
-
Marketing Type:
-
2023 new
-
Engine Model:
-
D1703-M-DI-EF03
Products Overview

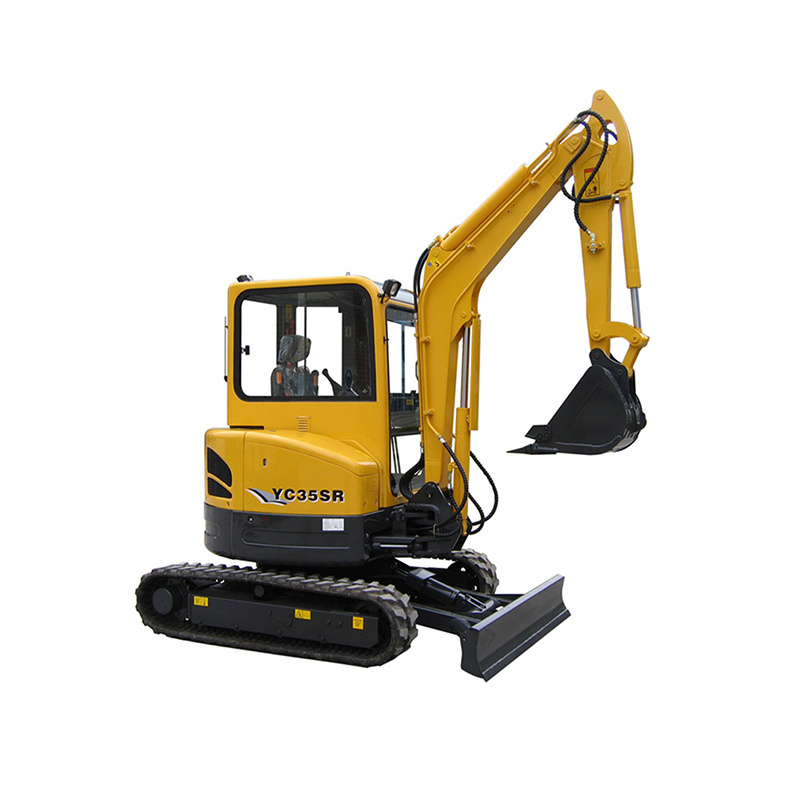

YUCHAI excavator YC35SR
|
Technical Specification
|
|
|
||
|
Basic parameter |
Machine weight
|
3860kg
|
||
|
|
Bucket capacity
|
0.12 m3
|
||
|
Performance parameter |
Engine model
|
Yan mar
|
||
|
|
Engine power
|
18.2/2200 kW/rpm
|
||
|
|
Max. Gradeability
|
35°
|
||
|
|
Max. digging force of arm
|
25.8 KN
|
||
|
|
Max. digging force of bucket
|
32.7 KN
|
||
|
|
Traveling speed
|
3.1/4.8 km/h
|
||
|
|
Slewing speed of platform
|
11~13 rpm
|
||
|
Operating parameter |
Max.digging height
|
5156 mm
|
||
|
|
Max.digging depth
|
3170 mm
|
||
|
|
Max.digging radius
|
5557 mm
|
||
|
|
Max.digging radius on ground level
|
5438 mm
|
||
|
|
Max.dumping height
|
3588 mm
|
||
|
|
Min.slewing radius
|
2260 mm
|
||
|
|
Max.vertical digging depth
|
2620 mm
|
||
|
Transportation dimension |
Overall length
|
4853 mm
|
||
|
|
Overall width
|
1800 mm
|
||
|
|
Overall height
|
2575 mm
|
||
|
Other Parameter |
Width of undercarriage
|
1800 mm
|
||
|
|
Length of track
|
2093 mm
|
||
|
|
Height between undercarriage and ground
|
347 mm
|
||
|
|
Height between platform and ground
|
572 mm
|
||
|
|
Platform tail turning radius
|
1014 mm
|
||
|
|
Track gauge
|
3655 mm
|
||
|
|
Fuel tank capacity
|
52 L
|
||
|
|
Hydraulic oil tank capacity
|
40 L
|
||
