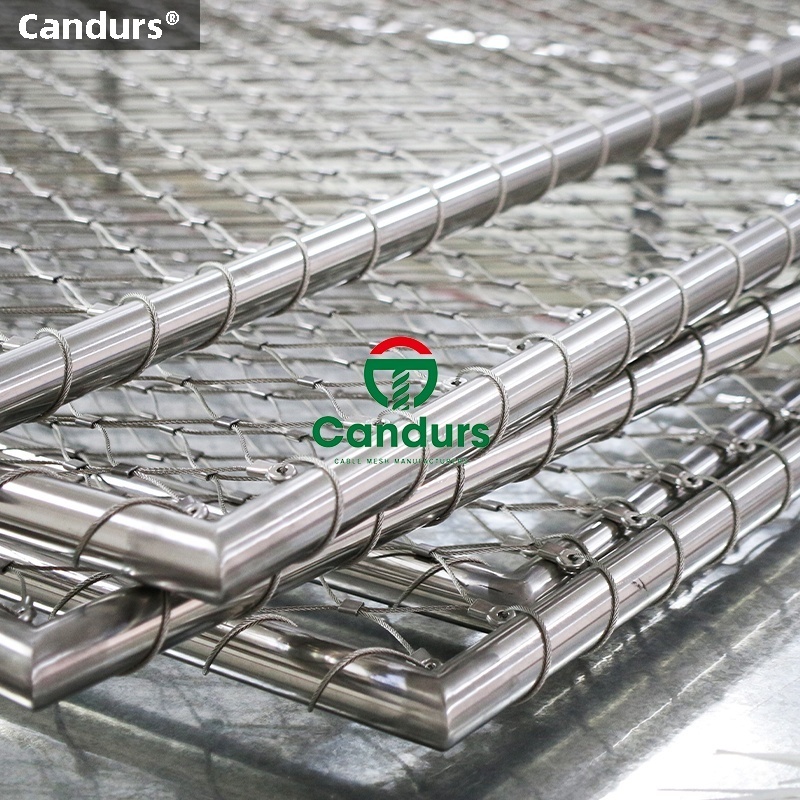

Round tube frames with rope ferrule mesh.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
Ferrule Type
-
Brand Name:
-
Candurs
-
Processing Service:
-
OEM ODM
-
Frames:
-
Round Tube
-
Mesh Type:
-
Rope Ferrule Mesh
-
Surface treatment:
-
Bright,Stain,Paint
-
Certification:
-
CE
Quick Details
-
Material:
-
STAINLESS STEEL WIRE
-
Type:
-
Rope Mesh
-
Application:
-
Protecting Mesh
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
Ferrule Type
-
Brand Name:
-
Candurs
-
Processing Service:
-
OEM ODM
-
Frames:
-
Round Tube
-
Mesh Type:
-
Rope Ferrule Mesh
-
Surface treatment:
-
Bright,Stain,Paint
-
Certification:
-
CE
R-Frames
Prefabricated
Binding the mesh on frame at factory.
Quickly Install
Install the frame on post or structure directly.
Custom tube and mesh.
Available all kinds stainless steel tube and rope ferrule mesh for frame systems.
Tube Options.
Type :Welded tube.
Material :316L grade stainless steel.
Outside diameter (d) : 20mm-50mm etc.
Thickness of tube : 1mm-3mm etc
Surface treatment :bright,stain,color paint etc
Mesh Options.
Mesh :Candurs's
rope ferrule mesh
.
Material :316Lgrade stainless steel.
Wire diameter :1mm,1.5mm,2mm,3mm etc.
Opening width (OW) :20mm - 400mm.
Opening width (OW) :20mm - 400mm.
Surface treatment :mill ,color paint etc.
|
Mesh
|
Rope Diameter
|
|
|
|
|||
|
OW X OH
|
1.0 mm
|
1.5 mm
|
2.0 mm
|
3.0 mm
|
|||
|
20 mm x 35 mm
|
CD1020
|
CD1520
|
|
|
|||
|
25 mm x 45 mm
|
CD1025
|
CD1525
|
|
|
|||
|
30 mm x 52 mm
|
CD1030
|
CD1530
|
CD2030
|
|
|||
|
35 mm x 61 mm
|
CD1035
|
CD1535
|
CD2035
|
|
|||
|
40 mm x 70 mm
|
CD1040
|
CD1540
|
CD2040
|
CD3040
|
|||
|
50 mm x 90 mm
|
CD1050
|
CD1550
|
CD2050
|
CD3050
|
|||
|
60 mm x 105 mm
|
CD1060
|
CD1560
|
CD2060
|
CD3060
|
|||
|
70 mm x 120 mm
|
CD1070
|
CD1570
|
CD2070
|
CD3070
|
|||
|
80 mm x 140 mm
|
CD1080
|
CD1580
|
CD2080
|
CD3080
|
|||
|
100 mm x 175 mm
|
|
CD15100
|
CD20100
|
CD30100
|
|||
|
120 mm x 210 mm
|
|
CD15120
|
CD20120
|
CD30120
|
|||
|
140 mm x 240 mm
|
|
CD15140
|
CD20140
|
CD30140
|
|||
|
150 mm x 260 mm
|
|
CD15150
|
CD20150
|
CD30150
|
|||
|
160 mm x 280mm
|
|
CD15160
|
CD20160
|
CD30160
|
|||
|
180 mm x 312 mm
|
|
CD15180
|
CD20180
|
CD30180
|
|||
|
200 mm x 350 mm
|
|
CD15200
|
CD20200
|
CD30200
|
|||
Popular Stainless Steel Rope Ferrule Mesh Design With R-Frames.
Eyelet and Loop end design stainless steel rope ferrule mesh.
Both Side Eyelet Ends (L24)
Both Side Loop Ends (L18)
One Side Loop Ends,Another side eyelet ends (L30)
Possible Diamond Direction With R-Frames.
Horizontal or vertical direction on side,
Horizontal or vertical direction
on floor.
Fabricated Frames
Binding the mesh on frame at factory.
R-Frames Images
